InLine® Slot bracket USB 2.0, 2x socket to 10-pin post connector, 0.35m content_copy

Extends USB ports to the outside: Converts a USB header on the motherboard into two external USB 2.0 ports on the rear panel.
Easy installation: Slot bracket is mounted in the case and connected to the motherboard via a 10-pin IDC connector – no driver required.
Space-saving cable routing: The 0.35 m long round cable can be laid flexibly in the case – ideal for compact systems.
Sturdy design for long-term use: Metal design with permanently mounted USB ports – reliable even with frequent use.
Perfect for upgrades and custom-built PCs: Suitable for desktop PCs, workstations or industrial applications – maximum compatibility.

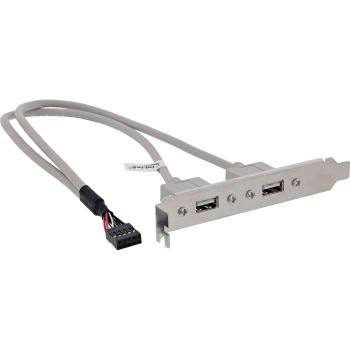

The InLine USB 2.0 slot bracket offers a practical solution for providing two external USB ports directly via the internal USB header of a motherboard. The two USB Type A sockets are permanently mounted on a robust slot bracket and can be conveniently used at the rear of the PC case. Internally, the connection is made via a round cable with an IDC 10-pin post connector.
With a cable length of approx. 0.35 m, the cable can be laid flexibly – even in tight cases. Installation is tool-free and requires no drivers. Simply connect the IDC plug to the USB header on the motherboard, screw on the slot bracket, and you're done.
Whether for a simple system upgrade, to repair defective connections or for individual PC projects – the slot bracket impresses with its reliability and universal applicability. It is particularly practical for hobbyists, IT professionals and anyone who wants to make hidden motherboard ports more accessible.
Thanks to its solid metal construction, the product is also suitable for environments with frequent use. Compatible with most standard motherboards and cases, it is the ideal choice for anyone who wants to easily add additional USB ports.
USB version: USB 2.0
Internal connection: 10-pin IDC header connector
External connection: 2x USB Type A socket
Cable length: approx. 0.35 m

Features
Connector 1 gender	Female
Connector 2 gender	Female
Other features
Cable length	0.35 m
Dimensions (WxDxH)	20 x 350 x 120 mm
Packaging data
Quantity per pack	1 pc(s)
Package width	175 mm
Package depth	225 mm
Package height	20 mm
Package weight	66 g
Package volume	800 cm³
Technical data
Type	USB 2.0
Height packaging	0.020m
Storage temperature	-20 - 70°C
PU	1Pieces
Article length	35.00cm
Width packaging	0.175m
Article height	12.00cm
Connections external	2x USB-A socket
Weight	0.066kg
Transmission rate	480Mb/s
Net weight	0.059kg
Length packaging	0.225m
Article width	2.00cm
Packaging volume	0.0008m³
Humidity	10% -85% (non-condensing)
USB specification	USB 2.0
Operation temperature	0 - 60°C
Connections internal	10Pin Connector
Cable length	0.35m
Low Profile
Weight & dimensions
Width	20 mm
Depth	350 mm
Height	120 mm
Weight	59 g

---
