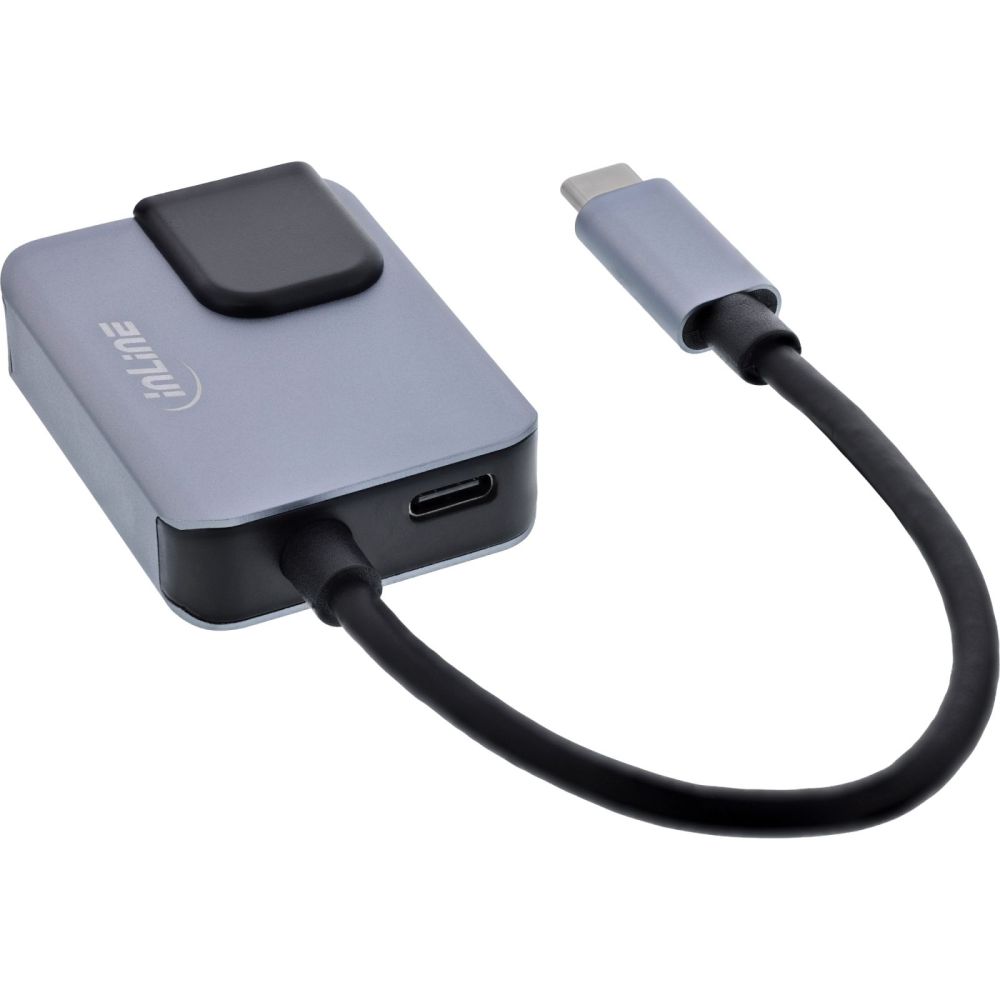

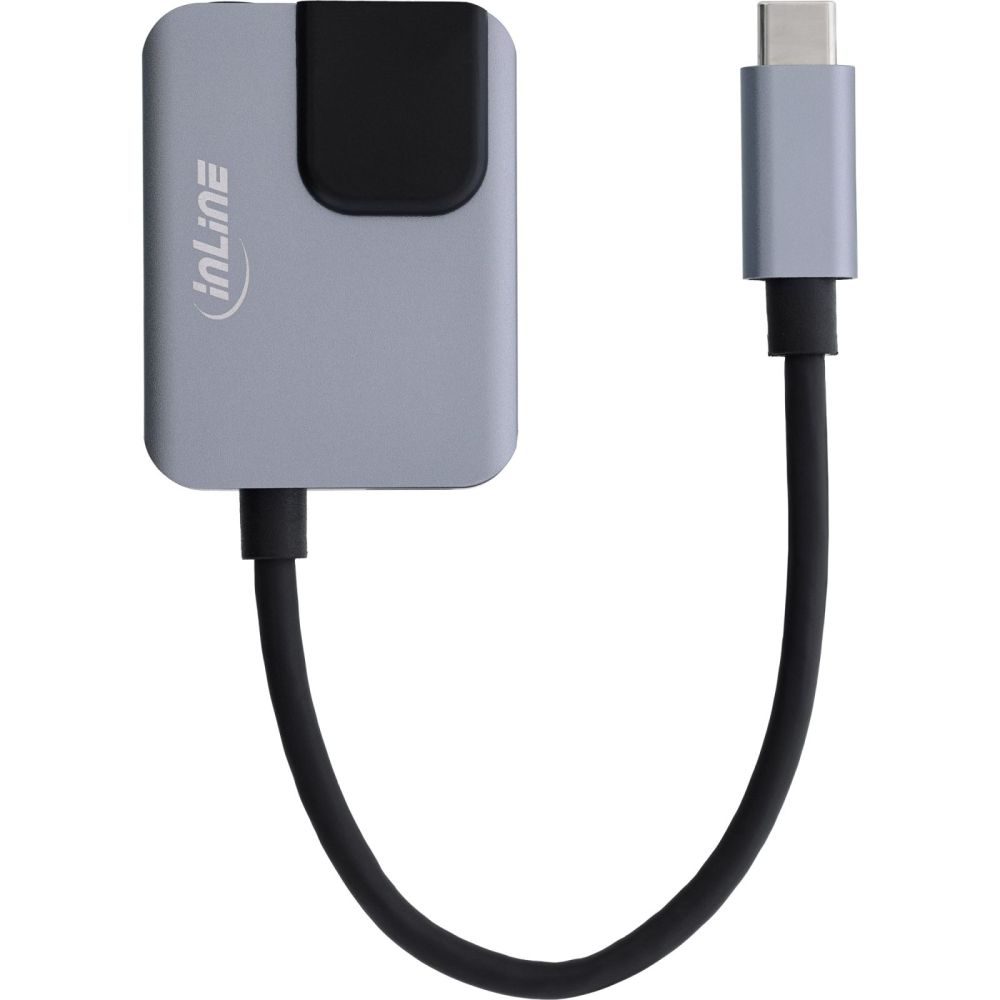

InLine® USB-C 3-in-1 adapter, Gigabit, audio, PD 3.0 content_copy

USB-C adapter with LAN, 3.5 mm audio and Power Delivery up to 100 WThree connections via a single USB-C port: Adds Gigabit Ethernet, 3.5 mm audio for headphones or a headset, and USB-C Power Delivery to your device, allowing all functions to be used simultaneously.

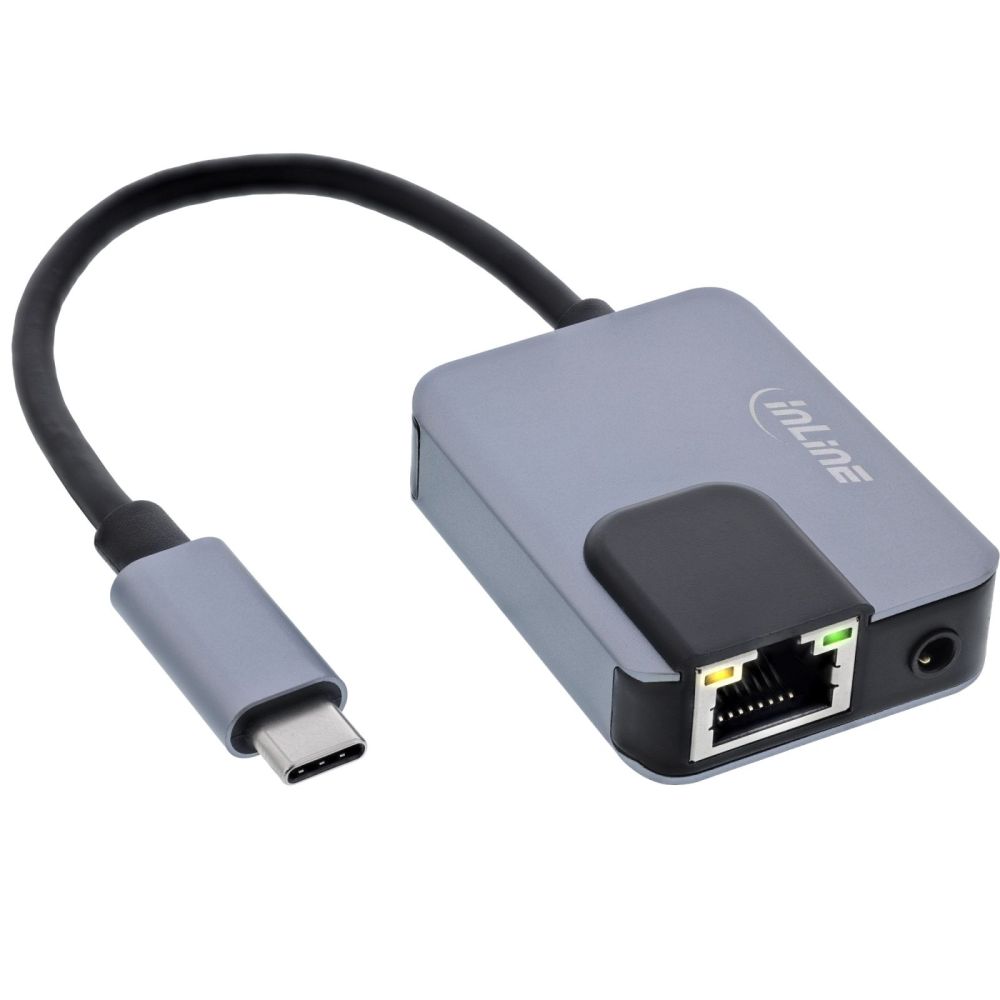

Stable Gigabit network with up to 1000 Mb/s: The RJ45 port supports 10 / 100 / 1000 Mb/s and offers a reliable wired connection as an alternative to Wi-Fi.
Combined audio and microphone use: The integrated 3.5 mm TRRS jack allows you to connect headsets with a microphone for clear voice transmission and audio output via a single port.
Simultaneous charging with up to 100 W: The USB-C port with Power Delivery 3.0 pass-through supplies the connected device with up to 100 W at 20 V / 5 A whilst LAN and audio are active.
Plug-and-play without driver installation: The adapter is automatically recognised by the operating system and is compatible with Windows, macOS, Linux, Android and iOS from the iPhone 15 series onwards.
The USB-C 3-in-1 adapter expands a single USB-C port with three key functions. The integrated RJ45 port provides a stable Gigabit Ethernet connection at 10 / 100 / 1000 Mb/s. This makes the adapter ideal for devices without their own LAN port or for situations where a reliable wired network connection is required.
In addition, the adapter features a 3.5 mm TRRS jack for headphones or headsets with a microphone. This allows audio output and voice input to be handled via a single port.
The integrated USB-C port with Power Delivery 3.0 pass-through enables simultaneous charging of the connected device at up to 100 W at 20 V / 5 A. Network, audio and power supply can be used in parallel.
Host connection: 1 x USB-C plug with connection cable approx. 15 cm
1 x USB-C socket with Power Delivery 3.0 pass-through
Supported operating systems: macOS/iOS/iPadOS, Windows 7 / 8 / 10 / 11, Linux, Android
Supported hardware: Mobile devices such as laptops, smartphones and tablets with a USB-C port

Design
Internal
Network
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN
Other features
Dimensions (WxDxH)	38 x 215 x 15 mm
Package volume	300 cm³
Packaging data
Package width	72 mm
Package depth	21 mm
Package height	150 mm
Package weight	51 g
Ports & interfaces
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Power
Output voltage	20 V
Technical data
Output	RJ45
Article width	3.80cm
Net weight	0.028kg
Signal	Data
Supported OS	Windows, Mac, Linux
Length packaging	0.021m
Article length	21.50cm
Packaging volume	0.0003m³
Article height	1.50cm
Type	USB 3.2 NIC
Height packaging	0.150m
Input	USB-C
Side A	USB-C male
Width packaging	0.072m
Side B	RJ45 female
Weight	0.051kg
Audio
Audio signals
Microphone support
Weight & dimensions
Width	38 mm
Depth	215 mm
Height	15 mm
Weight	28 g

---
