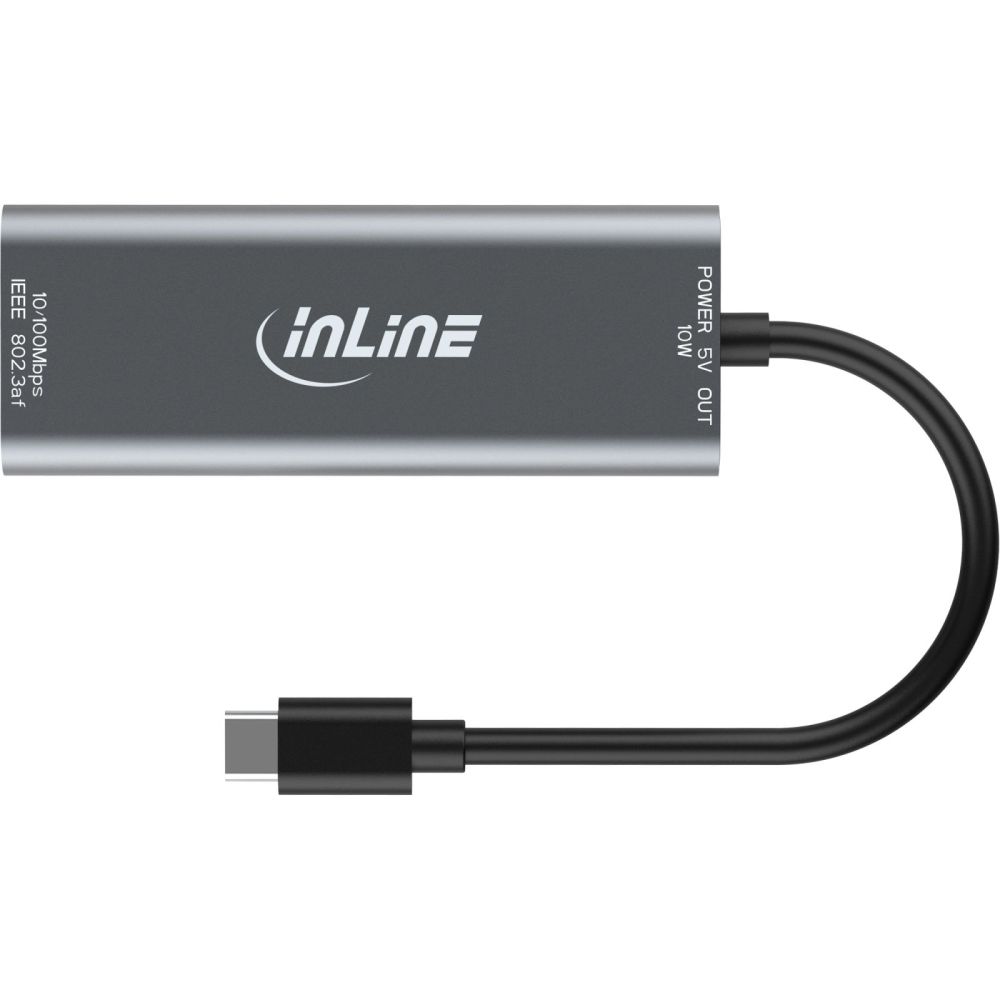

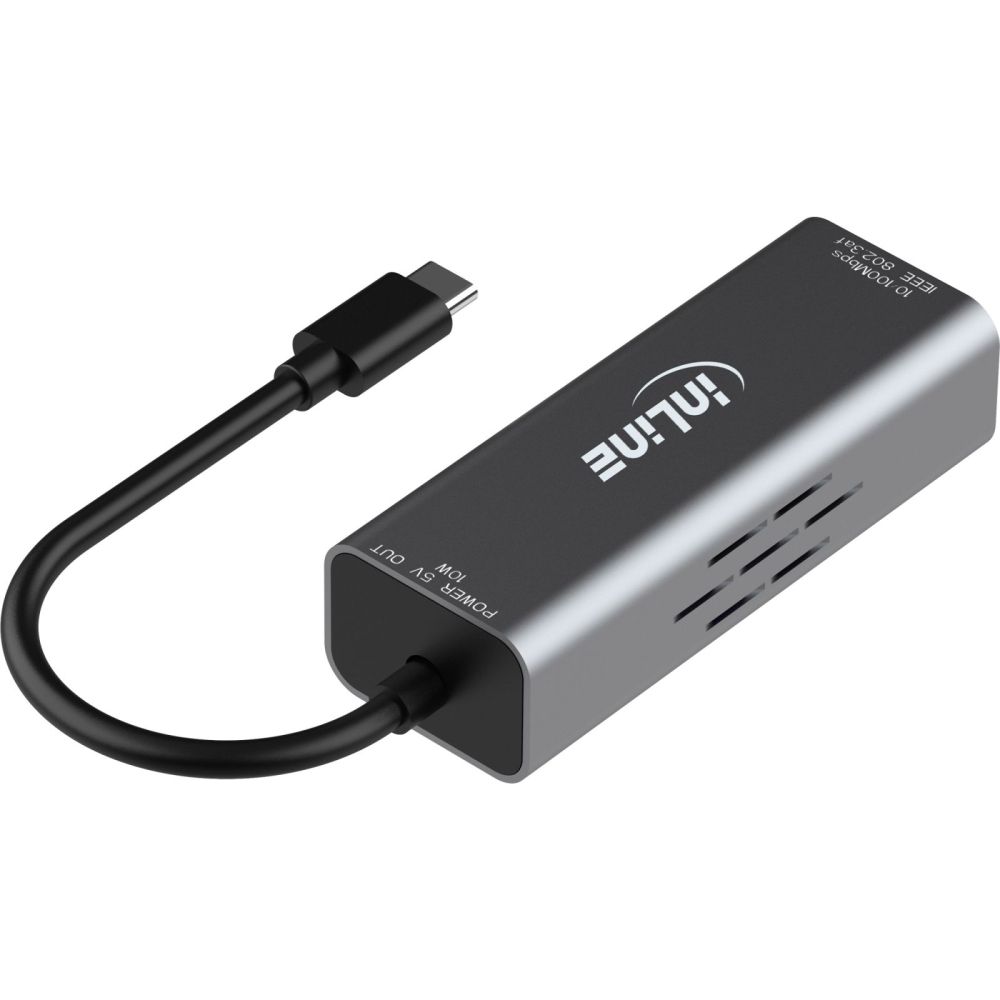

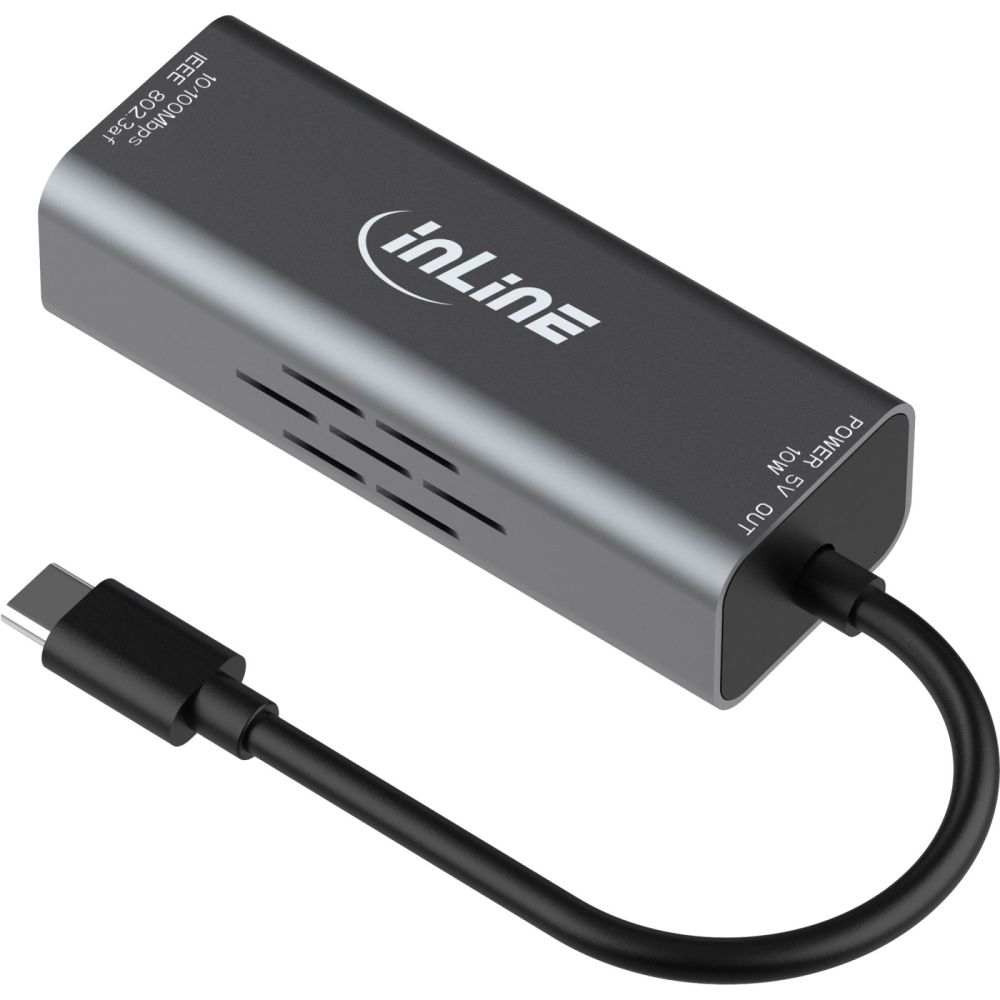

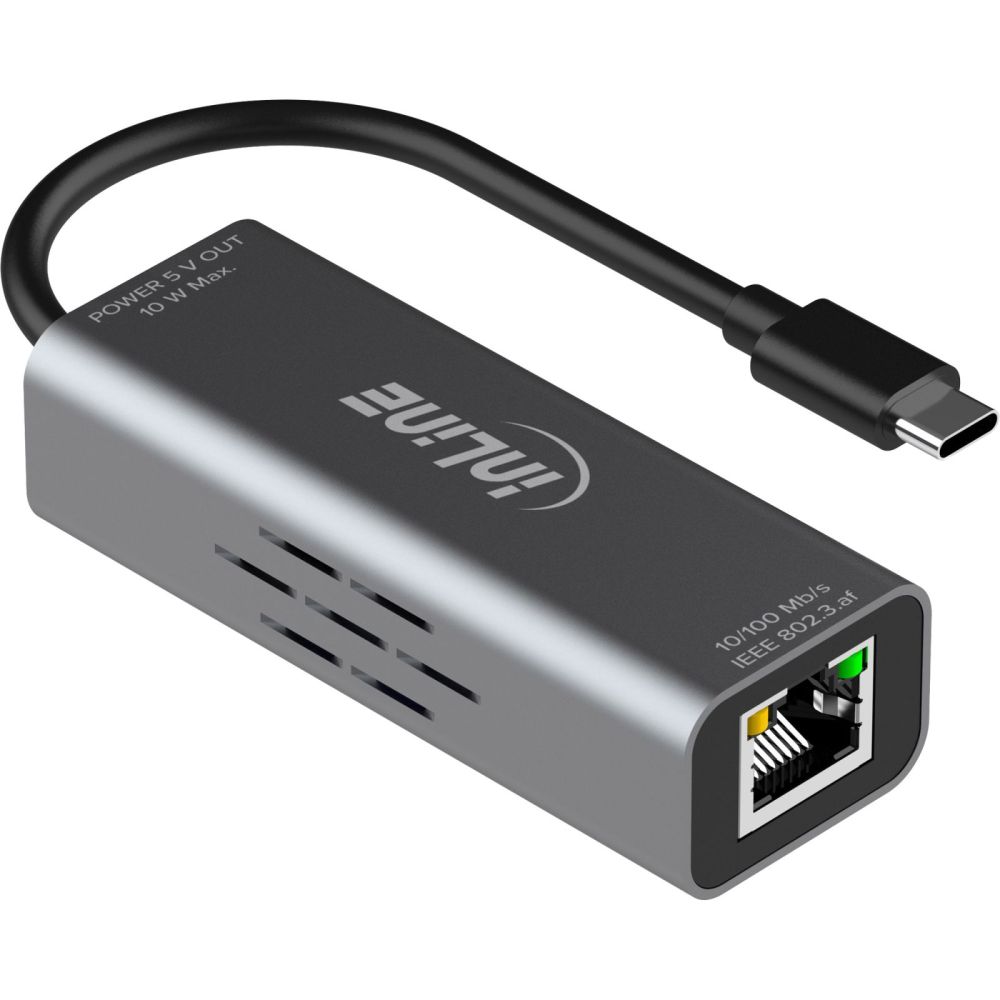

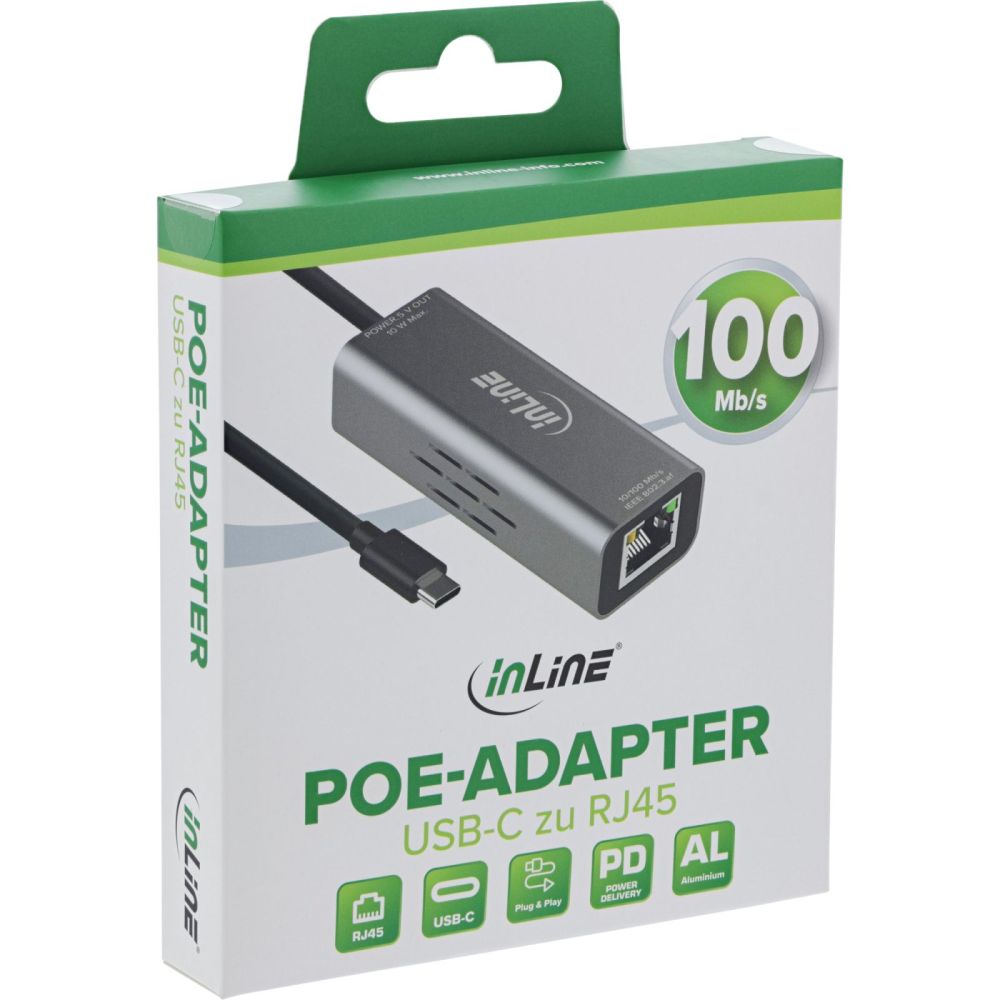

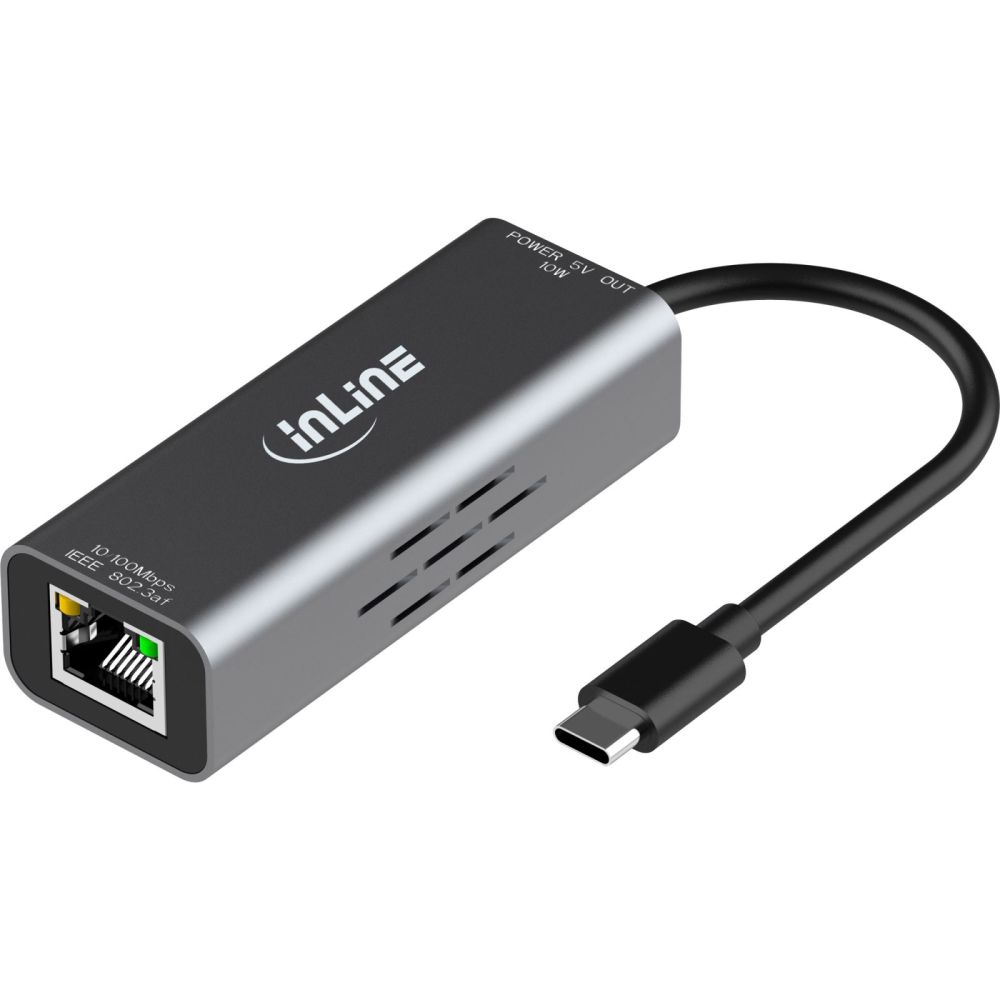

InLine® USB-C to RJ45 PoE adapter, with overvoltage protection content_copy

Fast network connection via USB-C: Ideal for devices without an Ethernet port – enables stable browsing, streaming and working via a wired connection.
PoE support for power and data: Uses the IEEE 802.3af standard to provide both network access and power via a single cable.
Reliable power supply via USB-C: Supports up to 10 W Power Delivery – for compatible devices such as tablets or embedded systems in professional environments.
Robust housing for high durability: The sturdy aluminium housing provides reliable protection in harsh environments and ensures the adapter’s longevity.
Easy setup without drivers: Ready for use straight away thanks to Plug & Play – no installation or configuration required, ready to use immediately on Windows and macOS.
The InLine USB-C to RJ45 PoE adapter is the perfect solution for anyone who wants to connect their USB-C device quickly and reliably to a wired network. Whether at home, in the office or in industrial environments – by supporting the IEEE802.3af PoE standard, the adapter offers a practical combination of data transfer and power supply via a single network cable.
With a data rate of up to 100 Mb/s, it ensures a stable connection without Wi-Fi dropouts – ideal for streaming, downloads or online meetings. At the same time, it supplies compatible devices with up to 10 W of power via USB-C Power Delivery – without the need for an additional power supply. The robust aluminium housing protects the electronics even under harsh conditions, whilst the integrated overvoltage and overcurrent protection ensures additional safety.
With this adapter, you can, for example, connect a tablet to a network via a patch cable. If the device is connected to a PoE-enabled switch, power is supplied directly via the network. A separate power supply is not required.
Please note: Power is supplied exclusively from the network to the USB-C device. Power cannot be fed back from the USB-C port to the network.
The 0.7 m long connection cable ensures maximum flexibility in use. The simple plug-and-play function enables quick setup – without the need for driver installation. The adapter is compatible with common operating systems such as Windows and macOS and is particularly suitable for laptops, tablets or industrial PCs without an integrated LAN port.
Chipset: RTL8152
PoE standard: IEEE802.3af
USB-C PD output: 5 V / 2 A (10 W max.)
LED indicator: Yes
Cable length: 0.7 m
Dimensions: 79 x 30 x 21 mm
Weight: 58 g
Operating temperature: 0 °C to +70 °C
Storage temperature: -40 °C to +125 °C

Design
Product colour	Grey
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	RTL8152
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	30 x 80 x 20 mm
Ethernet LAN (RJ-45) ports	1
Networking standards	IEEE 802.3af
Packaging data
Package width	130 mm
Package depth	175 mm
Package height	25 mm
Package weight	98 g
Package volume	500 cm³
Ports & interfaces
Host interface	USB Type-C
Host interface gender	Male
Output interface	RJ-45
Power
Output current	2 A
Technical data
Max. supported power	10W
Connection	USB-C
Width packaging	0.130m
Input	USB-C
Max. supported PoE standard	802.3af
Article length	8.00cm
Height packaging	0.025m
Article width	3.00cm
Chipset	RTL8152
Weight	0.098kg
Length packaging	0.175m
Side B	RJ45 female
Output	RJ45
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Side A	USB-C male
Length	0.07m
Packaging volume	0.0005m³
Max. supported data transfer rate	100Mb/s
Signal	Network
Data transmission rate	10/100Mb/s
Net weight	0.057kg
Article height	2.00cm
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	30 mm
Depth	80 mm
Height	20 mm
Weight	57 g

---
