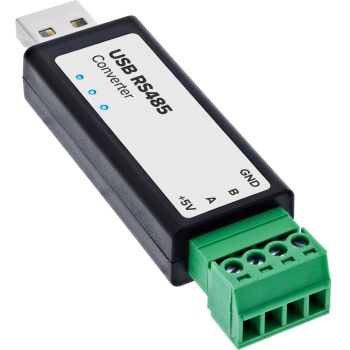

InLine® USB to serial RS485 Converter with FTDI chipset content_copy

USB to RS485 Converter for Modbus-RTU and reliable serial data communicationSimple RS485 communication: Connects computers with a USB-A port directly to RS485 devices and bus systems. Communication takes place via a virtual COM port, allowing existing software to be used without the need for complex modifications.
Automatic data transfer: The hardware-based direction switching automatically handles the transition between transmission and reception. Configuration via RTS/CTS signals or additional software commands is not required, simplifying commissioning.
For Modbus RTU and other RS485 applications: Suitable for industrial automation, building automation, measurement and control technology, and energy monitoring. Supports baud rates from 300 to 512,000 b/s and RS485 cable lengths of up to approx. 1.2 km.
Reliable operation: The integrated 120 Ω terminating resistor reduces signal reflections on longer bus lines. ESD protection, protective diodes and resettable fuses contribute to safe operation.
High compatibility: The FTDI FT232RNL chipset supports Windows XP, 7, 8, 8.1, 10 and 11, as well as Linux, macOS, Android and Windows CE. In addition, a USB-powered 5 V output with up to 400 mA is available for devices with low current consumption.
The InLine USB to RS485 Converter connects a computer with a USB-A port to devices and networks that use an RS485 interface. Communication takes place via a virtual COM port, enabling the use of existing software without the need for extensive modifications.
The integrated FTDI FT232RNL chipset ensures reliable data transmission. The automatic hardware direction switching handles the transition between transmission and reception entirely autonomously. Configuration via RTS/CTS signals or software commands is not required.
Product type: USB to Serial RS485 Converter
Chipset: FTDI FT232RNL
Host connector: USB-A
Device connector: RS485 screw terminal
Pin assignment: GND, A, B, +5 V (ground, RS485+, RS485−, power supply)
Baud rate: 300 to 512,000 bps
Transmission mode: Half-duplex with automatic direction switching
Maximum RS485 cable length: up to approx. 1.2 km
Maximum USB cable length: up to approx. 5 m
Bus participants: up to 32 devices per bus segment (an RS485 repeater is recommended for larger networks)
Termination resistor: Integrated 120 Ω termination resistor
+5 V output: USB-powered 5 V output for devices with low current consumption (max. 400 mA)
USB protection: 200 mA PTC fuse, ESD protection
RS485 protection: Protection diodes, resettable fuse
Status indicators: PWR, TXD, RXD (power, transmit, receive)
Supported operating systems: Windows XP / 7 / 8 / 8.1 / 10 / 11, Linux, macOS, Android, Windows CE
Operating temperature: -40 °C to +85 °C
Humidity: 5 % to 95 % RH, non-condensing
The integrated 120 Ω terminating resistor reduces signal reflections on longer bus lines.
Automatic direction switching handles the transition between transmission and reception entirely via hardware. Configuration via RTS/CTS signals or software commands is not required.

Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-15 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Package type	Polybag
Power
Output voltage	5 V
Software
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows 11, Windows 10, Windows XP, Windows CE
Mac operating systems supported	MacOS
Mac compatibility
Technical data
Side B	USB-A male
Article width	2.20cm
Length packaging	0.165m
Supported OS	Windows, Mac OS, Linux, Android
Side A	RS485 female
Variant	Supports serial port
Article height	1.10cm
Packaging volume	0.0004m³
Width packaging	0.100m
Height packaging	0.022m
Weight	0.033kg
Net weight	0.014kg
Article length	7.80cm
Technical details
Host interface	USB 2.0
Output interface	RS-485
Connector 1	USB Type-A
Connector 2	Terminal block
Connector gender	Male/Female
RS-485 signals	GND
Baud rate	512 Kbit/s
Product colour	Black
Chipset	FTDI FT232RNL
Package volume	400 cm³
Weight & dimensions
Width	22 mm
Depth	78 mm
Height	11 mm
Weight	14 g
Package width	100 mm
Package depth	165 mm
Package height	22 mm
Package weight	33 g
Dimensions (WxDxH)	22 x 78 x 11 mm

---
