InLine® USB to serial RS232 Converter with isolator content_copy

Secure RS232 connections via galvanically isolated USB interfaceReliable protection against interference: The galvanic isolation of up to 2.5 kV prevents a direct electrical connection between USB and RS232. This reduces potential differences, ground loops and electrical interference, thereby enhancing operational reliability.
Easy connection to RS232 devices: The USB to RS232 Converter connects computers with a USB-A port to serial devices via a 4-pin screw terminal. Communication takes place conveniently via a virtual COM port and can be integrated into existing applications.
Tried-and-tested FTDI chipset: The integrated FT232RNL chipset supports baud rates from 300 to 921,600 b/s and ensures stable and reliable data transmission. Compatible with Windows, Linux, macOS and Android.
Comprehensive protection features: The integrated isolated DC/DC converter, a 200 mA PTC fuse, ESD protection and TVS diodes protect the Converter and connected devices during daily use and contribute to a high level of operational reliability.
Designed for demanding applications: The Converter exclusively supports the RS232 signals TX, RX and GND. The two GND connections are internally linked and form the galvanically isolated RS232 ground. The operating temperature range of -40 °C to +85 °C allows for use even under demanding environmental conditions.
The InLine USB to RS232 Converter with isolator connects modern computers with a USB-A interface to devices that still communicate via a serial RS232 interface. The connection is made via a 4-pin screw terminal and is provided as a virtual COM port. This allows existing applications to continue to be used without any modifications.
The integrated galvanic isolation up to 2.5 kV prevents a direct electrical connection between the USB and RS232 sides. This reduces potential differences, ground loops and electrical interference. This enhances operational reliability, particularly in environments where interference is a critical concern.
The FTDI FT232RNL chipset enables reliable data transmission at baud rates ranging from 300 to 921,600 b/s. This is complemented by an integrated isolated DC/DC converter, a 200 mA PTC fuse, ESD protection and TVS diodes to protect the Converter and the connected devices.
The Converter supports only the RS232 signals TX, RX and GND. The two GND terminals are internally connected to each other and form the galvanically isolated RS232 ground. No other RS232 control signals are available.

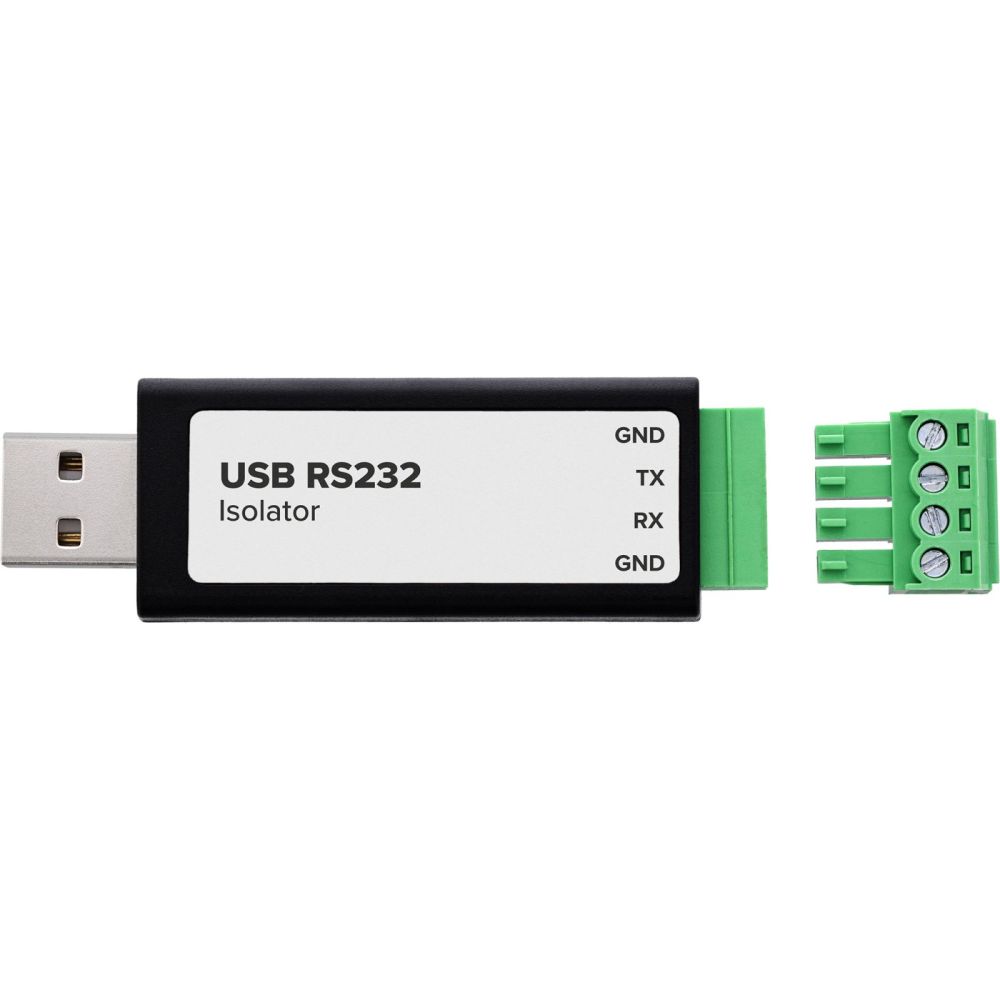

Product type: USB to RS232 Converter with isolator
Chipset: FTDI FT232RNL
Host connection: USB-A
Device connection: RS232 screw terminal
Pin configuration: GND, TX, RX, GND (ground, transmit, receive, additional ground)
Baud rate: 300 to 921,600 bps
Transmission mode: Point-to-point
Maximum RS232 cable length: up to approx. 15 m
Maximum USB cable length: up to approx. 5 m
Signal isolation: ADI magnetic isolation technology
Isolation voltage: up to 2.5 kV galvanic isolation
Power supply isolation: integrated isolated DC/DC converter
USB protection: 200 mA PTC fuse, ESD protection
RS232 protection: TVS diode, protective diodes

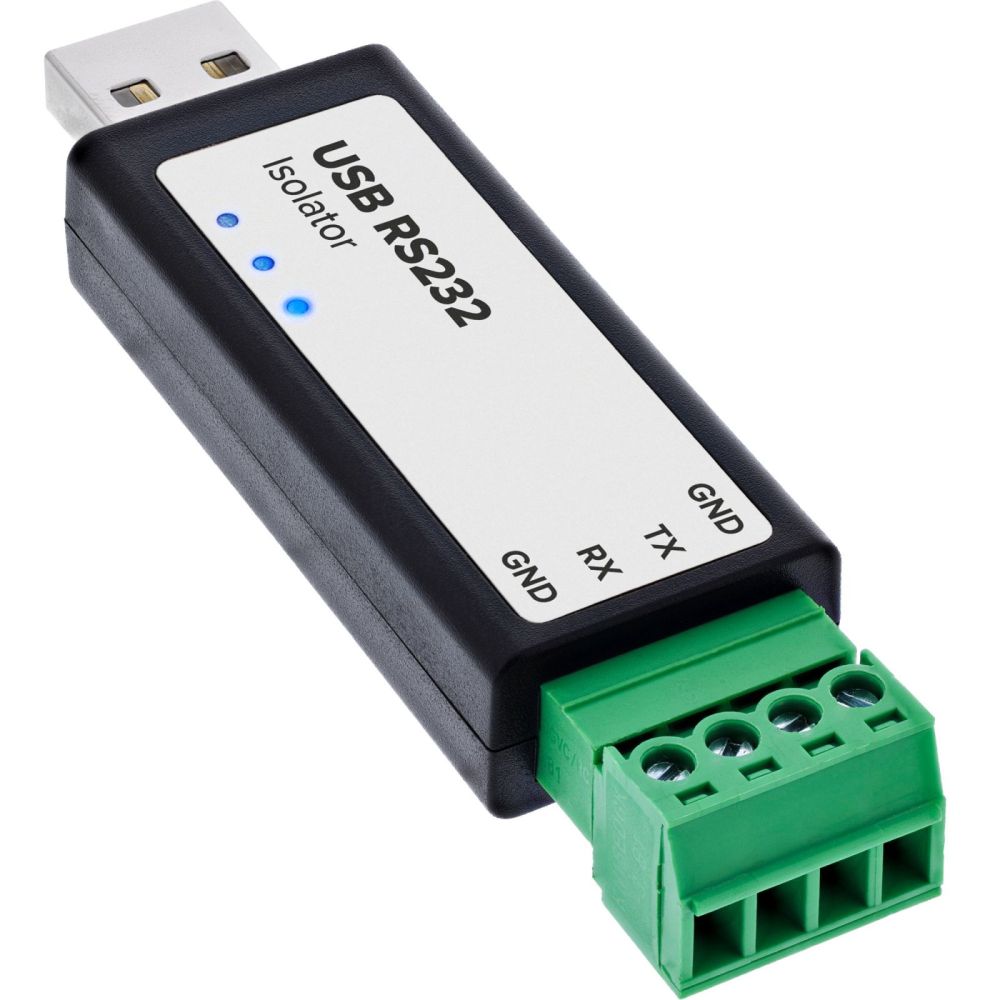

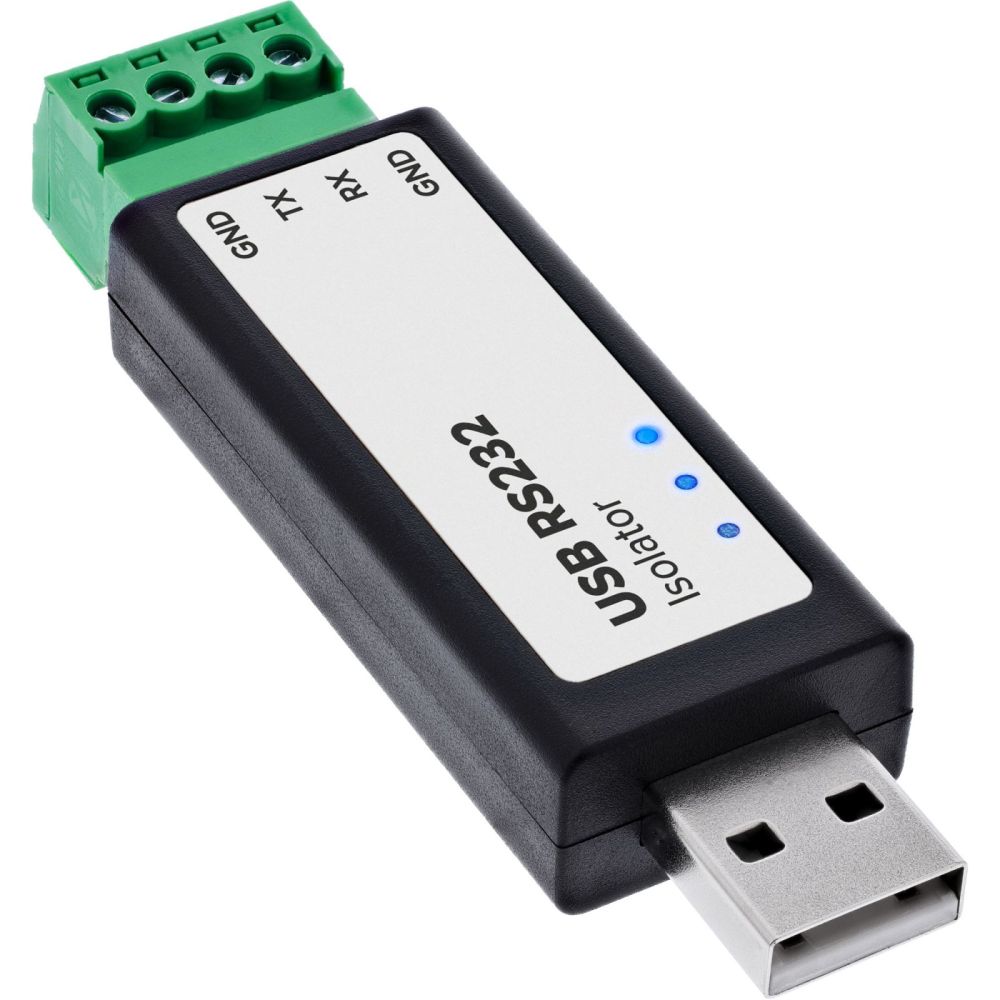

Status indicators: PWR, TXD, RXD (Power, Transmit, Receive)
Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux, macOS, Android
Operating temperature: -40 °C to +85 °C
Humidity: 5 % to 95 % RH, non-condensing

Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-15 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Package type	Polybag
Software
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows 11, Windows 10
Mac operating systems supported	MacOS
Mac compatibility
Technical data
Length packaging	0.165m
Supported OS	Windows, Mac OS, Linux, Android
Side B	USB-A male
Article width	2.20cm
Side A	RS232 female with isolator
Height packaging	0.011m
Weight	0.030kg
Variant	Supports serial port
Article height	1.10cm
Net weight	0.014kg
Article length	7.80cm
Packaging volume	0.0002m³
Width packaging	0.100m
Technical details
Host interface	USB 2.0
Output interface	RS-232
Connector 1	USB Type-A
Connector 2	Terminal block
Connector gender	Male/Female
RS-232 signals	GND, Tx, Rx
Isolation	2.5 kV
Baud rate	921.6 Kbit/s
Product colour	Black
Chipset	FT232RNL
Package volume	200 cm³
Weight & dimensions
Width	22 mm
Depth	78 mm
Height	11 mm
Weight	14 g
Package width	100 mm
Package depth	165 mm
Package height	11 mm
Package weight	30 g
Dimensions (WxDxH)	22 x 78 x 11 mm

---
