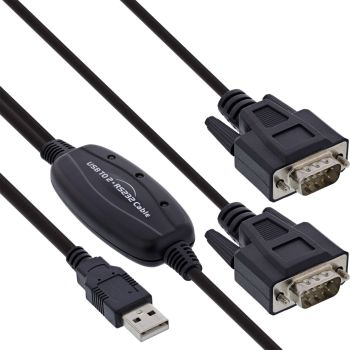

InLine® USB 2.0 to 2x Serial Adapter Cable USB A to 2x 9 Pin SubD male 1.5m content_copy

USB to 2x RS232 adapter cable for serial devices and COM port expansionTwo serial ports via USB: Adds two independent RS232 interfaces to a laptop or PC, allowing simultaneous use of multiple serial devices and applications.
Reliable connection with FTDI chipset: The integrated FT2232 chipset supports stable data communication with compatible RS232 devices and serial applications.
Ideal for older serial hardware: Enables the connection of modems, PDAs or other devices with a 9-pin Sub-D interface to modern systems with USB 2.0.
Wide system compatibility: Supports Windows 2000 and later, Linux and Mac OS X and later for flexible use in various working environments and applications.
Easy installation and use: The USB to serial adapter cable enables the quick expansion of existing systems with two additional COM ports without the need for internal hardware.
The USB 2.0 to 2x RS232 adapter cable expands systems with two additional serial interfaces and enables the simple connection of compatible RS232 devices via a USB port. This allows existing serial devices to continue to be used with modern computers or laptops.
The integrated FTDI FT2232 chipset supports reliable data communication and enables the simultaneous operation of two independent serial connections. The adapter cable is suitable for configuration, communication and diagnostic applications with compatible serial devices.
With two 9-pin Sub-D connectors, various RS232 devices can be connected. Support for Windows 2000 and later, Linux and Mac OS X and later enables flexible use in various system environments.
The adapter cable supports data transfer rates of up to approx. 1 Mb/s and is suitable for expanding existing systems with additional COM ports without complex hardware installation.
Note: Please install the software first and then connect the device to the USB port.
USB 2.0 Type A connector
2x RS232 interface
2x 9-pin Sub-D connectors
Data transfer rate up to approx. 1 Mb/s
FTDI FT2232 chipset
Supports Windows 2000 and later
Supports Linux
Supports Mac OS X and later
Length approx. 1.5 m

Logistics data
Package volume	700 cm³
Other features
Dimensions (WxDxH)	35 x 1500 x 17 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	155 mm
Package depth	165 mm
Package height	25 mm
Package weight	150 g
Package type	Polybag
Performance
Product colour	Black
Data transfer rate	0.001 Gbit/s
Chipset	FTDI FT2232
Compatible operating systems	Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11, Linux, Mac OS X
Ports & interfaces
Connector 1	9pin Sub D male
Connector 2	2 x RS232 9 Pin Sub-D
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	2.0
Cable length	1.5 m
Technical data
Data transmission rate	1Mb/s
Length	1.50m
Article height	1.70cm
Length packaging	0.165m
Variant	Supports serial port
Compatibility DisplayPort	USB 2.0
Width packaging	0.155m
Chipset	FTDI FT2232
Colour	Black
Height packaging	0.025m
Signal	Data
Side B	USB-A male
Type	For modem, ISDN systems or PDA
Weight	0.150kg
Side A	Sub-D male 9pin x2
Net weight	0.134kg
Packaging volume	0.0007m³
Article length	150.00cm
Article width	3.50cm
Weight & dimensions
Width	35 mm
Depth	1500 mm
Height	17 mm
Weight	134 g

---
