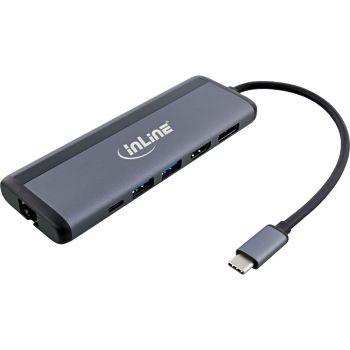

InLine® 8-in-1 USB-C Multihub, HDMI, DP, USB 3.2, PD 3.0 100W, MST content_copy

Full workstation connectivity and two displays via a USB-C portTwo monitors in parallel: HDMI and DisplayPort deliver up to 8K in single mode or 4K 60 Hz in dual mode.
Fast USB peripherals: 2x USB-A (USB 3.2 Gen.1) with up to 5 Gb/s for storage devices and accessories.
Charge and work over a single cable: USB-C Power Delivery 3.0 up to 100 W, of which up to 85 W to the host.
Stable wired network: RJ45 Gigabit with 1000 Mb/s for a consistent connection.
Fast media reading: SD 3.0 and microSD 3.0 card reader up to 104 MB/s.
This 8-in-1 USB-C hub consolidates video, power, data, and network in a compact housing. Via HDMI and DisplayPort you can run two displays simultaneously thanks to MST - crisp up to 4K 60 Hz in dual mode or up to 8K in single mode. The USB-C PD port supplies your notebook with up to 100 W (max. 85 W to the host), while two USB-A ports and the SD/microSD slots provide fast access to peripherals and memory cards. The PD port is for charging only; for 8K and 4K dual, DisplayPort 1.4 with DSC on the computer's USB-C port is required.
In professional IT environments, at mobile workstations, and in meeting rooms, the hub expands existing hardware quickly and cleanly without re-cabling. The slim aluminum housing fits in the notebook bag and proves itself in on-site installations and service deployments as well as in continuous operation in companies and public institutions.
Connector: USB-C plug with 15 cm cable
Video ports: 1x HDMI Type A, 1x DisplayPort port
HDMI standard: 2.1
DisplayPort standard: 1.4
HDMI resolution: 8K 7680x4320@30 Hz (single display), 4K 3840x2160@60 Hz (dual display)
DisplayPort resolution: 8K 7680x4320@30 Hz (single display), 4K 3840x2160@60 Hz (dual display)
Note: For 8K and 4K dual, DisplayPort 1.4 with DSC on the computer's USB-C port is required; 3840x2160@60 Hz over both ports simultaneously is possible
Card reader: 1x SD 3.0, 1x microSD 3.0, up to 104 MB/s
USB-A: 2x USB-A (USB 3.2 Gen.1), up to 5 Gb/s
USB-C power: Power Delivery 3.0 up to 100 W (max. 85 W to the host), charging only
Network: 1x RJ45, 1000 Mb/s
Housing: aluminum
Color: gray

Features
Data transfer rate	1000 Mbit/s
Maximum resolution (HDMI)	7680 x 4320 pixels
Product colour	Grey
Housing material	Aluminium
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Cable type	Round cable
USB Power Delivery (USB PD)
Other features
Dimensions (WxDxH)	450 x 130 x 15 mm
Packaging data
Package width	123 mm
Package depth	170 mm
Package height	21 mm
Package volume	500 cm³
Package weight	125 g
Ports & interfaces
Host interface	USB Type-C
Hub interfaces	DisplayPort, HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Ports quantity	5
Ethernet LAN (RJ-45) ports	1
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated
Technical data
Ports	2x USB-A, 1x USB-C (PD)
Article width	45.00cm
Height packaging	0.021m
Width packaging	0.123m
Colour	Grey
Type	USB-C Multiport Dock
Article height	1.50cm
Connection	USB-C
Length packaging	0.170m
USB specification	USB 3.2 Gen.1
Weight	0.125kg
Device type	Multi-Hub
Article length	13.00cm
Packaging volume	0.0005m³
Transmission rate	5Gb/s
Video output	1x DisplayPort (max. 7680x4320 @ 30Hz), 1x HDMI (max. 7680x4320 @ 30Hz)
Net weight	0.082kg
Ethernet
Weight & dimensions
Width	450 mm
Depth	130 mm
Height	15 mm
Weight	82 g

---
