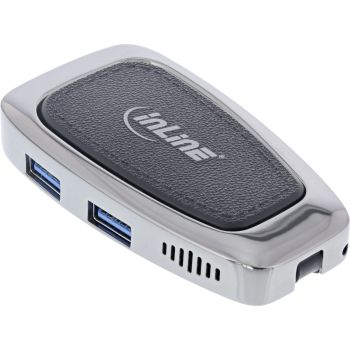

InLine® USB 3.2 Gen. 2 USB-C Multi Hub (2xUSB-A + 1xHDMI + 1xUSB-C) content_copy

More ports, 4K video and charging via a single USB-C portCompact 4-in-1 expansion: Use 2x USB-A, 1x HDMI and 1x USB-C via one port.
4K output at 60 Hz: Drive external displays smoothly and in detail.
Data up to 10 Gb/s: Fast work with SSDs, hard drives and USB flash drives.
Power Delivery up to 100 W: Charge the notebook and operate peripherals at the same time.
Portable and robust: Aluminum housing with stowable cable for use on the go.
The multi-function hub expands one USB-C port to include two USB-A, HDMI and USB-C. It supports data rates up to 10 Gb/s, 4K at 60 Hz via HDMI 2.0, and Power Delivery up to 100 W. The polished aluminum housing is compact, the connection cable can be stowed under the housing. Plug & Play and an LED status indicator facilitate quick use. USB-C with DisplayPort Alt Mode is required for HDMI output.
Whether at the desk, in the meeting room or on the go: The hub fits into professional IT environments, supports on-site installations and service deployments, and integrates reliably into existing infrastructures of companies and public institutions.
Connection: USB 3.2 Gen.2 Type-C plug (input, 10 Gb/s)
Outputs: 2x USB 3.2 Gen.2 Type-A (10 Gb/s), 1x USB 3.2 Gen.2 Type-C (10 Gb/s, PD up to 100 W), 1x HDMI 2.0 (4K at 60 Hz)
Requirement: USB-C with DisplayPort Alt Mode
Compatibility: Mac and Windows, Thunderbolt 3.0
Chipset: Realtek RTS5423, Parade PS186
Housing: Polished aluminum
Cable: Stowable under the housing
Dimensions: approx. 85.5 x 46.5 x 16 mm
Operation: Plug & Play
Indicator: LED status
Color: Silver
Scope of delivery: Multi-hub, manual DE/EN

Features
Data transfer rate	10000 Mbit/s
Maximum resolution (HDMI)	3840 x 2160 pixels
Product colour	Silver
Housing material	Aluminium
USB Power Delivery up to	100 W
HD type	4K Ultra HD
USB Power Delivery (USB PD)
LED indicators
Plug and Play
Other features
Dimensions (WxDxH)	48 x 85 x 16 mm
Chipset	Realtek RTS5423, Parade PS186
Packaging content
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	90 mm
Package depth	180 mm
Package height	25 mm
Package volume	500 cm³
Package weight	116 g
Package type	Hanging box
Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
Ports quantity	2
USB Type-C DisplayPort Alternate Mode
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Video input	USB-C male
Weight	0.116kg
USB specification	USB 3.2 Gen.2
Transmission rate	10Gb/s
Type	USB-C Multiport Dock
Article width	4.80cm
Ports	2x USB-A, 1x USB-C
Article height	1.60cm
Connection	USB-C
Video output	1x HDMI (max. 3840x2160 @ 60Hz)
Height packaging	0.025m
Colour	Silver
Packaging volume	0.0005m³
Net weight	0.076kg
Width packaging	0.090m
Length packaging	0.180m
Device type	Multi-Hub
Article length	8.50cm
Ethernet
Power supply
Weight & dimensions
Width	48 mm
Depth	85 mm
Height	16 mm
Weight	76 g

---
