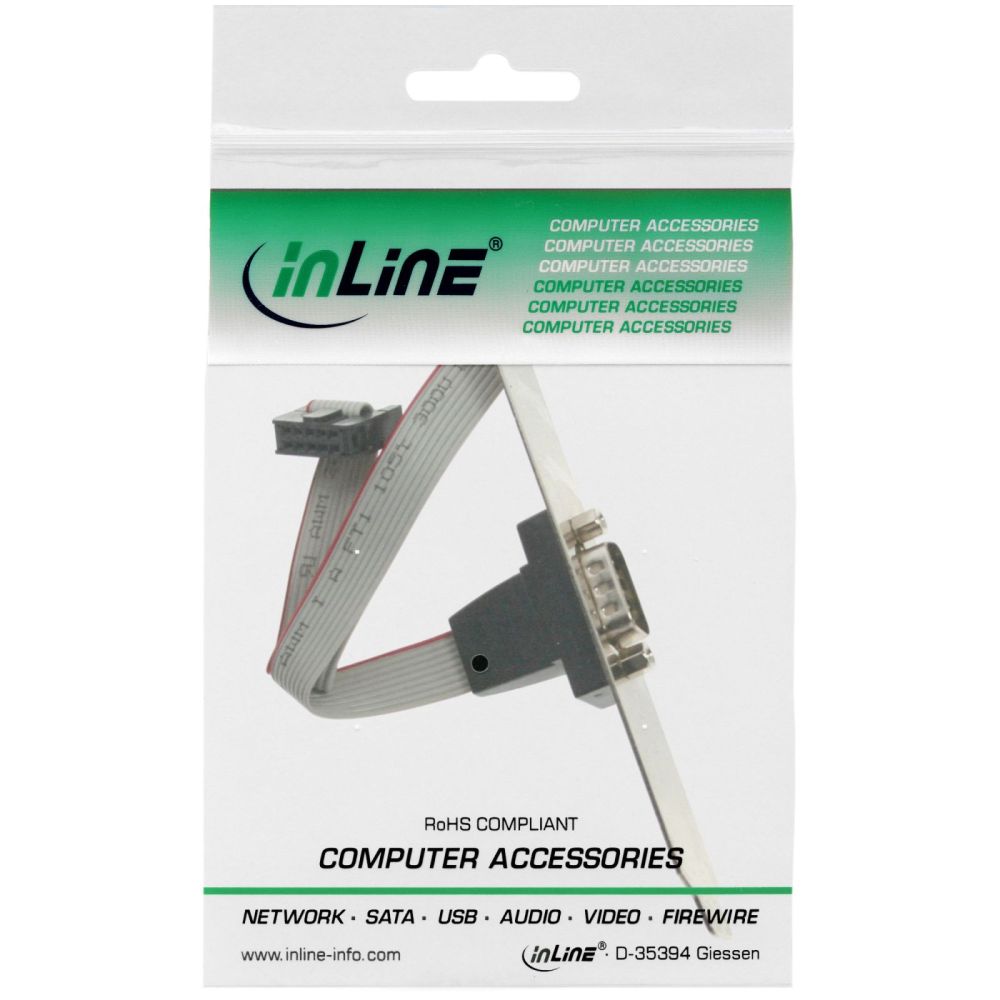

InLine® Slot Bracket DB9 male to 10Pin internal female, 0.25m content_copy

Cleanly route the serial mainboard interface to the outsideInternal interface routed to the outside: Brings the 9-pin Sub-D to the slot bracket so you can conveniently connect serial devices.
Easy retrofit without soldering: Plug the 10-pin female header directly onto the mainboard header.
Low-error connection thanks to defined pinout: The clear pin assignment helps with correct wiring.
Flexible placement in the case: Approx. 25 cm of cable slack makes installation easier.

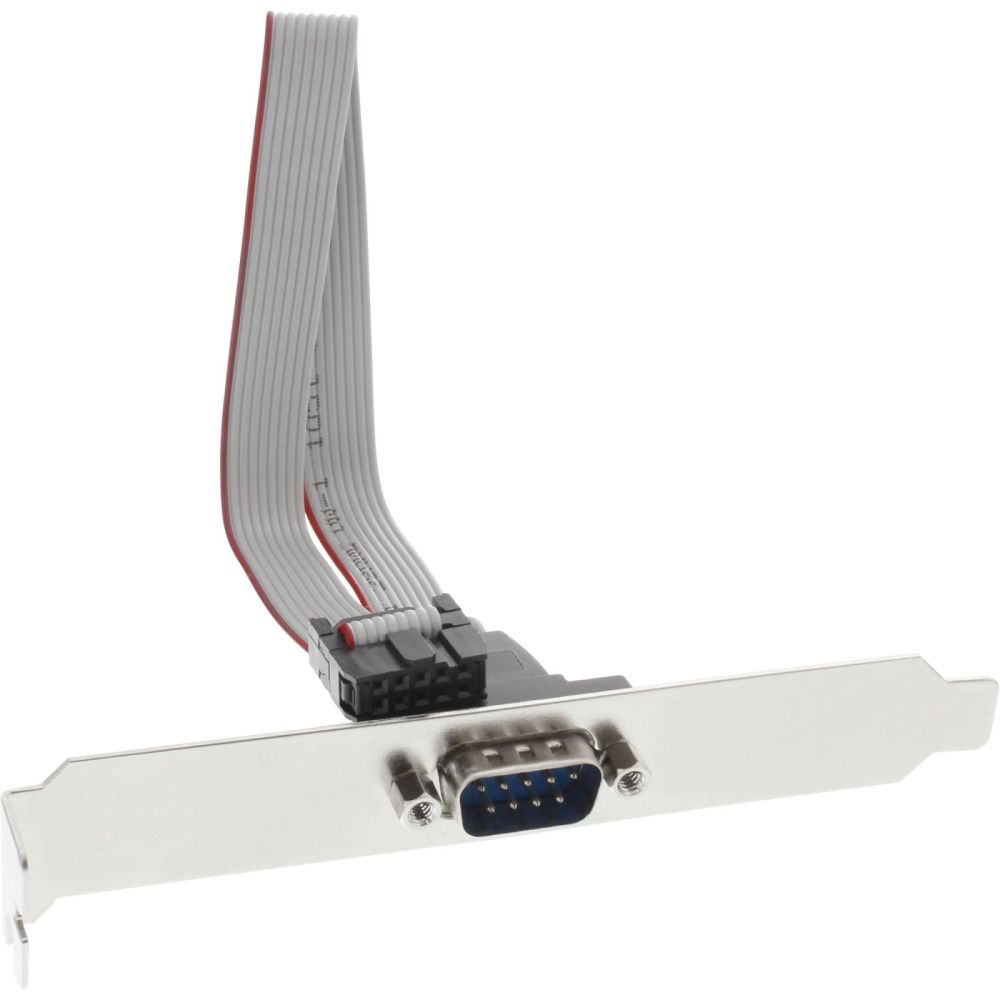

With this slot bracket you route the serial interface of your mainboard to the outside and create a full 9-pin Sub-D connector on the back of the case. The 10-pin female header is plugged onto the internal header without additional tools; the clear pin assignment supports a secure connection so that you can reliably connect serial devices.
In professional IT environments and on-site installations, the solution provides fast, clean access to serial ports, for example for configuration, service tasks, or operating existing peripherals. It also facilitates integration without rewiring in established infrastructures of companies and public institutions.
Connection: 9-pin Sub-D plug to 10-pin female header
Length: approx. 25 cm
Pinout: Serial -> female header: 1-1, 6-2, 2-3, 7-4, 3-5, 8-6, 4-7, 9-8, 5-9
Pin 10: not connected on female header
Form factor: slot bracket
Interface: serial

Design
Product colour	Silver
Certification	UL
Other features
Cable length	0.25 m
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	140 mm
Package height	9 mm
Package weight	30 g
Package volume	100 cm³
Technical data
Cable length	0.25m
UL E-number	E336285
Type	serial
Packaging volume	0.0001m³
Connections internal	10pin mainboard connector
Connections external	9pin Sub D male
Net weight	0.029kg
Width packaging	0.100m
Length packaging	0.140m
Weight	0.030kg
Height packaging	0.009m
PU	1Pieces
UL
Low Profile
Weight & dimensions
Weight	29 g

---
