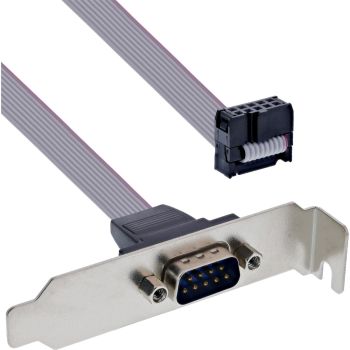

InLine® Slot Bracket DB9male to 10 Pin Internal header direct 1:1 0.6m content_copy

Low-profile RS232 slot bracket with 9-pin Sub-D connector for internal motherboard connectionsEasy retrofitting of an RS232 connection: Enables a PC to be expanded with a serial interface via the internal 10-pin motherboard header for classic COM port applications.
Direct 1:1 pin assignment for a stable connection: Supports unaltered signal transmission without adaptation and ensures reliable communication with serial devices.
Space-saving low-profile design: Suitable for compact enclosures and slimline systems where there is limited installation space available for expansions.
Compatible with 9-pin Sub-D devices: Provides a standardised connection for many existing RS232 applications and allows the reuse of existing hardware.
Flexible integration thanks to 0.6 m cable length: Supports a neat and simple installation within the chassis and facilitates the connection between the motherboard and the slot bracket.
This serial slot bracket allows for the simple retrofitting of an RS232 connection on a PC. It connects directly to the motherboard via a 10-pin female header and provides a 9-pin Sub-D connector on the slot bracket.
The 1:1 pin assignment ensures direct signal transmission without conversion. This makes the cable ideal for applications where stable and unaltered communication is required. Existing devices with a serial interface can be reused without any problems.
Thanks to its low-profile design, the slot bracket is also suitable for compact enclosures. The cable length of 0.6 m allows for flexible installation and supports neat cable routing inside the system.
The product offers a reliable solution for extending or restoring a serial connection and can be easily integrated into existing systems.
Cable length: 0.6 m
Connector: 9-pin Sub-D plug
Connector: 10-pin female header (motherboard header)
Design: Low profile
Pin assignment: 1:1 (1-1 to 9-9)
Pin 10: not assigned

Design
Product colour	Grey
Certification	UL
Features
Connector 1 gender	Male
Connector 2 gender	Female
Other features
Cable length	0.6 m
Packaging data
Quantity per pack	1 pc(s)
Package width	125 mm
Package depth	185 mm
Package height	20 mm
Package weight	29 g
Package volume	500 cm³
Technical data
PU	1Pieces
Packaging volume	0.0005m³
Shielding	Without
Cable length	0.60m
Width packaging	0.125m
Type	serial
Length packaging	0.185m
Weight	0.029kg
Connections internal	10pin mainboard connector
UL E-number	UL2651
Version	Bulk
Height packaging	0.020m
Connections external	9pin Sub D male
Net weight	0.029kg
UL
Low Profile
Weight & dimensions
Weight	29 g

---
