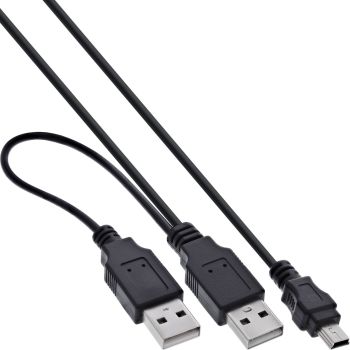

InLine® USB mini Y cable, 2x plug A to mini B plug (5-pin), 1.5m content_copy

Additional power supply via Y-cable: The USB mini Y-cable has two USB-A connectors, allowing compatible devices to receive additional power via a second USB port if a single connection is not sufficient.
Combined data and power transfer: The mini USB-B connector transfers data and simultaneously supports the power supply of external devices without the need for a separate power supply unit.
Suitable as a replacement cable: Ideal as a replacement solution for defective or lost original cables for external 2.5-inch hard drive enclosures with mini USB connectors.
Passive operation without electronics: The cable operates without active components, making it easy to use and requiring no additional configuration or driver installation.
Compatible with older interfaces: Supports the continued operation of existing hardware with mini USB ports and is suitable for systems where modern USB-C ports are not available.
The InLine USB Mini Y-cable is used for combined data and power transmission for external devices with a mini USB-B connection. It is often used with external 2.5-inch hard drive enclosures that draw their power from the USB connection.
The Y-design with two USB-A plugs allows additional power to be supplied via a second USB port. This is particularly helpful when a single USB port does not provide sufficient power. The connected device must be designed for this type of power supply. The cable itself does not provide any active power boost.
The 5-pin mini USB-B plug enables simultaneous data transfer and power supply via one interface. The cable is primarily suitable as a replacement cable and supports the reliable operation of compatible devices without additional power supplies.
Connection: 2x USB-A plug to mini USB-B plug
Number of pins mini USB: 5-pin
Cable type: USB mini Y-cable
Function: Data transfer and additional power supply

Features
Connector 1	Mini-USB B
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Logistics data
Package volume	200 cm³
Packaging data
Package width	100 mm
Package depth	140 mm
Package height	16 mm
Package weight	51 g
Technical data
Type	USB 2.0 mini
Signal	Data
Length	1.50m
Article width	1.50cm
Operation temperature	0 - 50°C
USB specification	USB 2.0
Data transmission rate	480Mb/s
Height packaging	0.016m
Width packaging	0.100m
Side A	USB-A male
Length packaging	0.140m
Colour	Black
Packing	Retail
Side B	miniUSB-B male
Net weight	0.045kg
Storage temperature	-20 - 60°C
Packaging volume	0.0002m³
Article height	0.80cm
Outer diameter	4.3mm
Article length	150.00cm
Weight	0.051kg
UL
Gold plated contacts
Weight & dimensions
Cable length	1.5 m
Width	15 mm
Depth	1500 mm
Height	8 mm
Weight	45 g
Dimensions (WxDxH)	15 x 1500 x 8 mm

---
