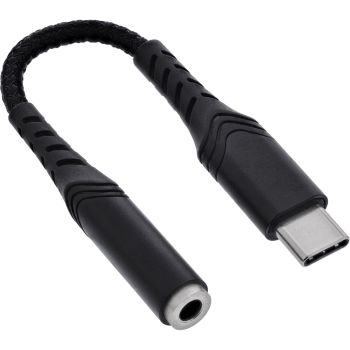

InLine® USB-C audio adapter to 3.5mm jack, DAC, 15 cm content_copy

Hi-res sound quality thanks to integrated DAC: The Conexant CX21988 digital-to-analogue converter supports up to 96kHz/24-bit and reduces distortion and signal loss for clear audio output via USB-C to 3.5mm jack.
Headset support with microphone function: The integrated 48kHz/16-bit ADC allows the use of stereo headsets with microphones and ensures stable voice transmission for phone calls, gaming or video calls.
Universal USB-C compatibility: The USB-C audio adapter works with compatible smartphones, tablets and notebooks with USB-C ports and reliably replaces missing 3.5 mm jacks.
Broad support for common standards: The 3.5 mm jack supports CTIA and OMTP headsets and automatically detects when it is plugged in or unplugged for convenient use without additional settings.
Robust aluminium housing with flexible cable: The shielded approx. 15 cm long cable ensures stable signal transmission and high durability in everyday mobile use or at work.
The InLine USB-C to 3.5 mm jack audio adapter allows stereo headsets with microphones to be connected to modern devices with a USB-C interface. The integrated Conexant CX21988 audio codec handles digital signal processing and ensures precise digital-to-analogue conversion.
With a DAC resolution of up to 96kHz/24Bit, the adapter supports high-resolution audio signals. At the same time, the integrated ADC with 48kHz/16Bit enables reliable voice transmission via the connected microphone. The signal-to-noise ratio of 100dB contributes to clear and detailed sound reproduction.
The 3.5 mm jack supports both CTIA and OMTP standard assignments. This means that numerous common headsets can be used. The plugging in and unplugging of headphones is automatically detected.
The robust aluminium housing reliably protects the integrated technology. The approx. 15 cm long, flexible and shielded cable supports stable signal transmission. Plug & Play enables direct use without additional driver installation.
The adapter is ideal as a replacement for missing jack connections and offers a high-quality audio solution via USB-C.
Crosstalk suppression: -50dB
Adapted headphone impedance: Typically 32 ohms
Total harmonic distortion including noise: THD+N -85dB

Inputs
USB connector type	USB Type-C
AUX in
Packaging content
Audio cable length	0.15 m
Packaging data
Quantity	1
Package width	100 mm
Package depth	17 mm
Package height	135 mm
Package volume	300 cm³
Package weight	31 g
Package type	Hanging box
Technical data
Supported OS	Windows, Mac, Linux
Width packaging	0.100m
Article length	13.50cm
Side A	USB-C male
Packaging volume	0.0003m³
Article width	1.10cm
Weight	0.031kg
Input	USB-C
Type	DAC
Side B	3.5mm jack female
Output	3.5mm jack audio output
Length packaging	0.017m
Article height	0.90cm
Signal	USB --> Audio
Net weight	0.006kg
Height packaging	0.135m
Audio signals
Technical details
Supported sample rates	96,48 kHz
Bit rate	24 bit
Accuracy	100 dB
Product colour	Black
Weight & dimensions
Width	11 mm
Depth	135 mm
Height	9 mm
Weight	6 g
Dimensions (WxDxH)	11 x 135 x 9 mm

---
