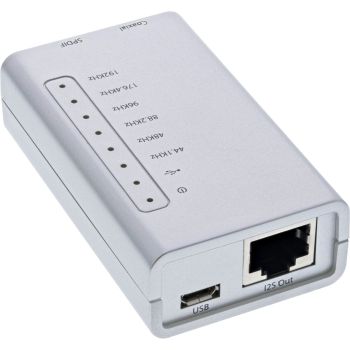

InLine® USB HD Audio Adapter 24 Bit 192kHz to Digital Coax/Toslink/I2S Converter content_copy

Digital USB audio output to Toslink/coax/I2S up to 192 kHzDigital output via USB: Connect a PC via Toslink, coaxial (RCA) or I2S (RJ45).
High-resolution playback up to 192 kHz/24 bit: Precise digital output for demanding audio applications.
Stable clocking via oscillator: Consistent playback even with fluctuating input signal.
Flexible control: Selectable sampling rate, USB Audio Class 2.0/1.0 and ASIO driver support.
Multichannel passthrough via S/PDIF: 5.1 and DTS-HD 7.1 are passed through.
This USB audio converter converts audio data from the computer via USB 2.0 into digital signals and outputs them optionally via S/PDIF (Toslink), coaxial (RCA) or I2S (RJ45). It supports sampling rates up to 192 kHz at 16/24 bit, provides a user-selectable sampling rate, and uses an integrated oscillator for uniform, precise output. USB Audio Class 2.0/1.0 as well as ASIO drivers are supported.
It proves itself in professional IT environments, in on-site installations, in service deployments, and in existing infrastructures of companies and public institutions when computers are digitally connected to audio systems, converters, or AV systems and high compatibility with S/PDIF and I2S is required.
Interface: USB 2.0
Power supply: via Micro-USB-B
Digital outputs: S/PDIF (Toslink), coaxial (RCA), I2S (RJ45)
Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit depth: 16/24 bit
Chipset: C-Media CM6631A
Audio standards: USB Audio Class 2.0/1.0
Drivers: ASIO (via chipset driver)
Passthrough: 5.1 and DTS-HD 7.1 via S/PDIF; no Dolby True-HD
Operating systems: Windows 8/7/Vista/XP 32/64 bit, Mac OS X 10.4 or higher
Scope of delivery: 1x USB HD audio converter, 1x manual, 1x Micro-USB cable, 1x driver CD

Inputs
Digital audio coaxial in	1
Outputs
S/PDIF out port
Packaging data
Package width	140 mm
Package depth	195 mm
Package height	36 mm
Package volume	1000 cm³
Package weight	147 g
Technical data
Power supply	Possible via micro USB
Width packaging	0.140m
Supported word size	16/24bit
Input	Micro USB
Signal	USB --> Audio
Type	DDC
Weight	0.147kg
Side B	Digital Coax/Toslink/I2S (RJ45)
Length packaging	0.195m
Article length	7.60cm
Side A	MicroUSB-B female
Sampling rate	44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
Height packaging	0.036m
Packaging volume	0.0010m³
Article height	2.00cm
Supported OS	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Mac OS X 10.4 or higher
Output	S/PDIF Toslink optical, Cinch (coaxial), I2S (RJ45)
Net weight	0.088kg
Chipset	CMedia CMS6631A
Variant	HD Audio
Article width	4.00cm
Weight & dimensions
Width	40 mm
Depth	76 mm
Height	20 mm
Weight	88 g
Dimensions (WxDxH)	40 x 76 x 20 mm

---
