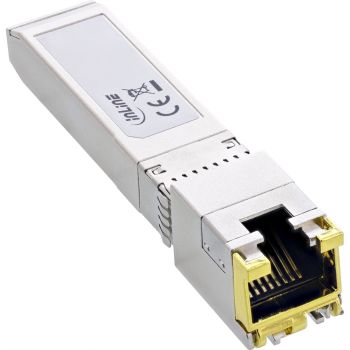

InLine® SFP+ module 10GBase-T with RJ-45 socket, 30m, 10Gb/s content_copy

RJ-45 for Cat.6a cables: Easy to integrate into existing networks – no fibre optic cable required.
10Gb/s speed: Maximum data rate over short copper distances – ideal for server and switch connections.
Up to 30 m range: Perfect for rack connections or short distances in technical rooms and data centres.
Auto-negotiation: Also supports 5G/2.5G/1G – automatic adaptation to connected devices.
Hot-plug & MSA-compatible: Easy retrofitting in many SFP+ slots – ready for immediate use.
The InLine SFP+ Module 32335W delivers ultra-fast 10Gb/s network connections based on classic copper cabling. It is perfect for short distances up to 30 metres via Cat.6a network cables – e.g. in data centres, server rooms or technical cabinets.
With its RJ-45 interface, the module can be connected directly to routers, switches or NAS systems – without the need for fibre optics or media converters. Thanks to auto-negotiation support, it also works with 5G, 2.5G or 1G components.
Installation is extremely simple: hot-plug-compatible and MSA-compliant, it fits into many SFP+ slots – e.g. in MikroTik, Cisco, QNAP or Ubiquiti.*
Whether as a cost-effective alternative to fibre optic connections or for quickly upgrading existing copper infrastructure, this compact RJ-45 module offers maximum compatibility and speed.
*Please check manufacturer compatibility in advance.
Experience the power of the perfect connection – with InLine.
Form factor: SFP+ module
Connector type: RJ-45 (8P8C)
Network standard: 10GBASE-T (also backwards compatible)
Compatible bandwidths: 10G / 5G / 2.5G / 1G
Cable length (max.): 30 m (Cat.6a)
Hot-plug capable: Yes
MSA compliant: Yes
Power consumption: max. 3.0 W
Temperature range: 0 °C to +65 °C
DDM monitoring: not available

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 65 °C
Other features
Dimensions (WxDxH)	67 x 0.25 x 13 mm
Packaging data
Package width	60 mm
Package depth	120 mm
Package height	15 mm
Package volume	0 cm³
Package weight	24 g
Performance
SFP transceiver type	Copper
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Fiber optic connector	RJ-45
Maximum transfer distance	30 m
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Copper ethernet cabling technology	2.5GBASE, 10GBASE, 1000BASE
Power
Input voltage	3.3 V
Power consumption (typical)	3 W
Technical data
Net weight	0.024kg
Weight	0.025kg
Type	SFP+ module
Variant	Ethernet
Number of ports	1
Transmission speed	10Gb/s
Article width	1.30cm
Length packaging	0.120m
Coding	CISCO
Article length	6.70cm
Width packaging	0.060m
Max. distance	30m
Article height	1.30cm
Height packaging	0.015m
Weight & dimensions
Width	67 mm
Depth	0.25 mm
Height	13 mm
Weight	1.3 kg

---
