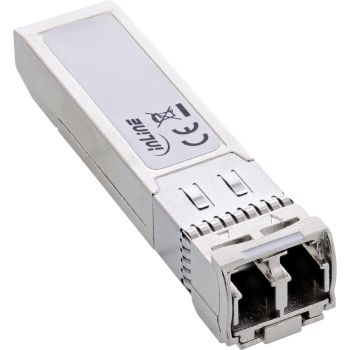

InLine® SFP+ module fibre optic 1550nm SM, LC sockets, 100km, 10Gb/s content_copy

Up to 100 km range: Ideal for very long fibre optic connections with single-mode fibres – e.g. between remote locations or technical rooms.
10 Gb/s high speed: Maximum network performance for servers, storage or backbone-capable routers and switches.
1550 nm FMI laser: For low-loss, stable signal transmission – particularly robust over longer distances.
Digital Diagnostics (DDM): Monitoring of temperature, voltage and reception level – ideal for fault analysis and maintenance.
Hot-plug capable & MSA-compatible: Universally applicable and interchangeable without interruption – compatible with many manufacturers.
The InLine SFP+ Module 32335U was developed for high-performance networks with particularly long fibre optic distances. With a range of up to 100 km and a data rate of 10 Gb/s, it is ideal for backbone connections, remote technical rooms or large industrial facilities.
The built-in 1550 nm FMI laser ensures reliable long-distance transmission, while the integrated APD receiver processes even weak signals cleanly. This makes the module ideal for critical applications with high transmission quality.
The DDM/DOM (Digital Diagnostics Monitoring) function allows precise monitoring of temperature, voltage, reception strength and laser current – ideal for system administrators who want full control over their network environment.
The module is hot-plug-compatible, fits into many MSA-compatible devices and can be replaced or retrofitted during operation.
Experience the power of the perfect connection – with InLine.
Form factor: SFP+ module (MSA-compatible)
Fibre type: Single mode
Wavelength: 1550 nm (FMI laser)
Range: up to 100 km
Transmission rate: up to 10 Gb/s
Connector: LC duplex
DDM/DOM: Yes
Hot-plug capable: Yes
Operating temperature: 0 °C to +70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	59 x 0.22 x 13 mm
Packaging data
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	21 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	10312.5 Mbit/s
Interface type	SFP+
Fiber optic connector	LC
Maximum transfer distance	100000 m
Wavelength	1550 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Networking standards	IEEE 802.3ae
Fiber ethernet cabling technology	10GBASE
Single-mode fiber (SMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Power consumption (typical)	2 W
Technical data
Type	SFP+ module
Net weight	0.021kg
Number of ports	1
Width packaging	0.060m
Coding	CISCO
Transmission speed	10Gb/s
Weight	0.022kg
Article length	5.90cm
Length packaging	0.090m
Article width	1.30cm
Variant	Single-Mode
Article height	1.30cm
Height packaging	0.020m
Max. distance	100km
Weight & dimensions
Width	59 mm
Depth	0.22 mm
Height	13 mm
Weight	1.3 kg

---
