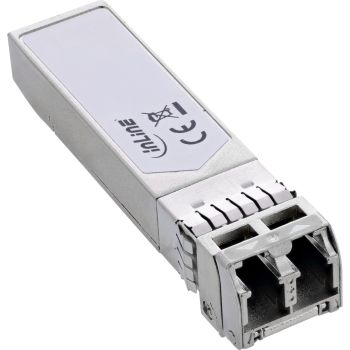

InLine® SFP+ module fibre optic EW 1550nm SM, LC sockets, 80km, 10Gb/s content_copy

For ultra-fast connections up to 10 Gb/s: Ideal for networks with high performance requirements – e.g. in server rooms or for long-distance connections.
Suitable for single-mode distances up to 80 km: Perfect for connections between remote buildings or technology centres with stable data rates.
1550 nm EML laser technology: High range with low attenuation – ideal for backbone and fibre optic connections.
Digital Diagnostics Monitoring (DDM): Monitors temperature, voltage and signal strength – for greater transparency during operation.
MSA-compatible and hot-plug capable: Can be used in switches, routers or converters – quick replacement without interruption.
The InLine SFP+ Module 32335T offers ultra-fast 10GbE connections over long distances. It is designed for use in single-mode fibre optics with a range of up to 80 km and is perfect for networks with high bandwidth requirements.
With 1550 nm EML laser technology and a reception range of 1260–1620 nm, the module ensures stable data transmission with low losses. It complies with the IEEE 802.3ae and MSA SFF-8472 standards and is therefore compatible with many network components.
Thanks to its hot-plug capability, it can be installed or replaced during operation – ideal for professional use. The integrated Digital Diagnostics Monitoring (DDM) enables permanent monitoring of important operating data such as temperature, voltage and signal quality.
Form factor: SFP+ module, MSA-compatible
Connector: LC duplex
Fibre type: Single mode
Wavelength: 1550 nm (transmitter)
Receiving range: 1260–1620 nm
Range: up to 80 km
Speed: up to 10 Gb/s
DDM/DOM: Yes
Hot-plug capable: Yes
Temperature range: 0 °C to +70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	57 x 0.23 x 13 mm
Packaging data
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	22 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	10312.5 Mbit/s
Interface type	SFP+
Fiber optic connector	LC
SFP transceiver standard	EW
Maximum transfer distance	80000 m
Wavelength	1550 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Networking standards	IEEE 802.3ae
Fiber ethernet cabling technology	10GBASE
Single-mode fiber (SMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Power consumption (typical)	2 W
Technical data
Type	SFP+ module
Net weight	0.022kg
Max. distance	80km
Number of ports	1
Length packaging	0.090m
Article height	1.30cm
Height packaging	0.020m
Coding	CISCO
Article length	5.70cm
Variant	Single-Mode
Transmission speed	10Gb/s
Width packaging	0.060m
Article width	1.30cm
Weight	0.023kg
Weight & dimensions
Width	57 mm
Depth	0.23 mm
Height	13 mm
Weight	1.3 kg

---
