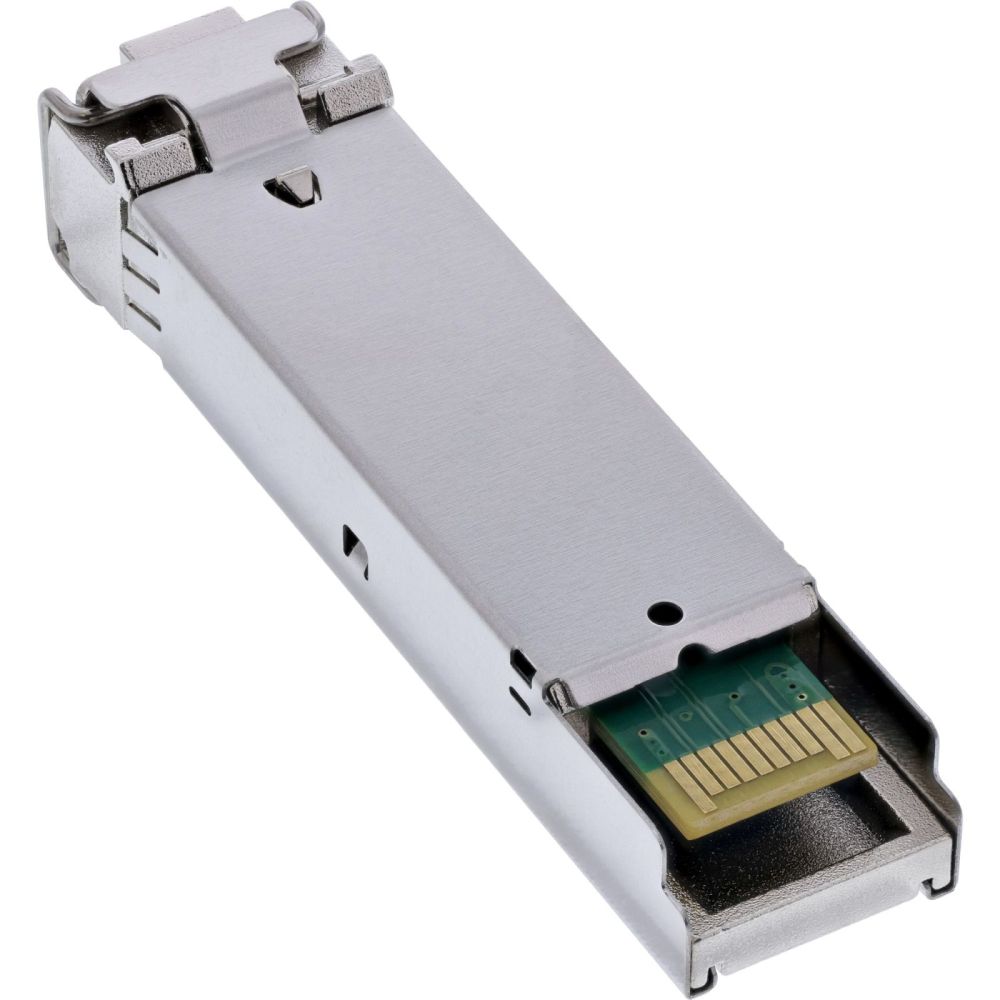

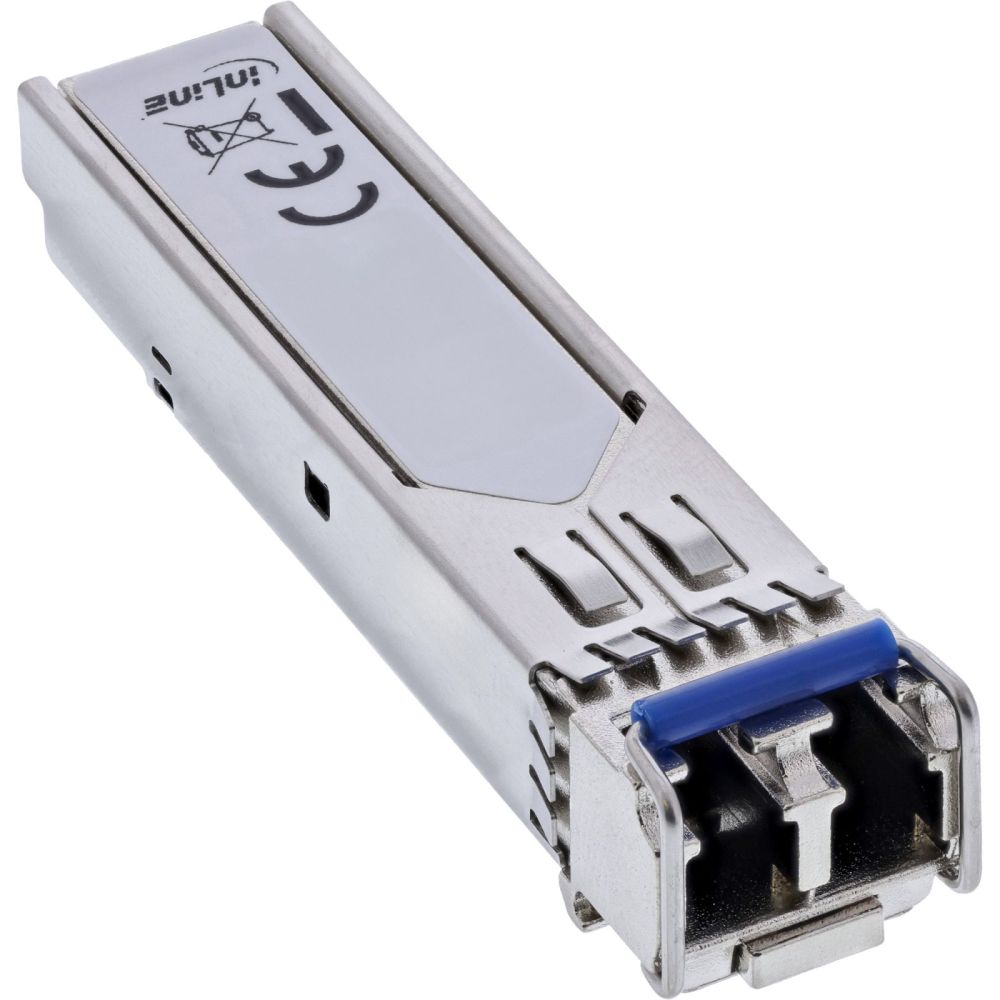

InLine® SFP module fiber optic 1310nm singlemode with LC sockets, 15km, 2.5Gb/s content_copy

SFP transceiver module for 2.5 Gb/s over single-mode fiber
High compatibility with standard network devices and switches
Optical LC duplex interface for a stable connection
Digital diagnostic monitoring (DDM) for real-time performance analysis
Hot-pluggable for easy installation and flexible replacement
The InLine® SFP module is the ideal solution for fast and reliable network connections. With a transmission rate of up to 2.5 Gb/s and a range of 15 kilometers, it enables stable and high-performance data transmission for corporate networks and data centers.
The optical LC duplex interface ensures precise signal transmission and is compatible with common network devices and switches. The digital diagnostic monitoring (DDM) function allows real-time control of key operating parameters and ensures secure and efficient network performance.
Thanks to the hot-pluggable design, the module can be easily installed or replaced without interrupting network operation. The robust construction guarantees reliable performance in the temperature range from 0 °C to 70 °C.
Technical specifications:
Wavelength: 1310nm
Optical interface: LC Duplex
Transmission distance: 15 km (single-mode fiber optic)
Digital diagnostics and monitoring (DDM)
Operating voltage: +3.3 V
Hot-pluggable design
Operating temperature: 0 °C to 70 °C
Storage temperature: -40 °C to 85 °C

Certificates
Compliance certificates	CE, RoHS, TÜV mark
Features
Product colour	Stainless steel
Hot-Plug support
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Other features
Dimensions (WxDxH)	60 x 0.19 x 15 mm
Packaging data
Package width	50 mm
Package depth	90 mm
Package height	15 mm
Package volume	100 cm³
Package weight	16 g
Package type	Polybag
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	2500 Mbit/s
Interface type	SFP
Fiber optic connector	LC
Maximum transfer distance	15000 m
Wavelength	1310 nm
Single-mode fiber (SMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Technical data
Net weight	0.016kg
Article width	1.50cm
Length packaging	0.090m
Coding	CISCO
Width packaging	0.050m
Article height	1.30cm
Article length	6.00cm
Variant	Single-Mode
Max. distance	15km
Type	SFP module
Height packaging	0.015m
Transmission speed	2.5Gb/s
Number of ports	1
Packaging volume	0.0001m³
Weight	0.019kg
Weight & dimensions
Width	60 mm
Depth	0.19 mm
Height	15 mm
Weight	1.3 kg

---
