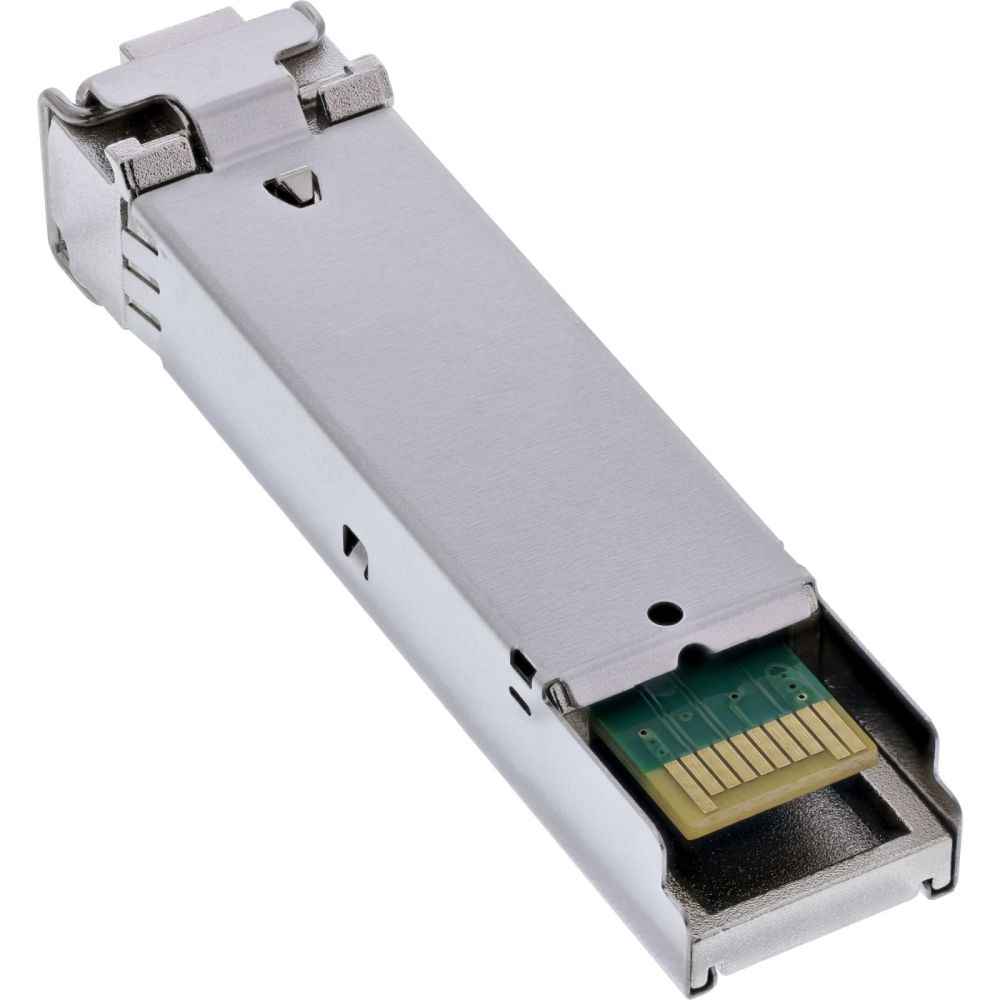

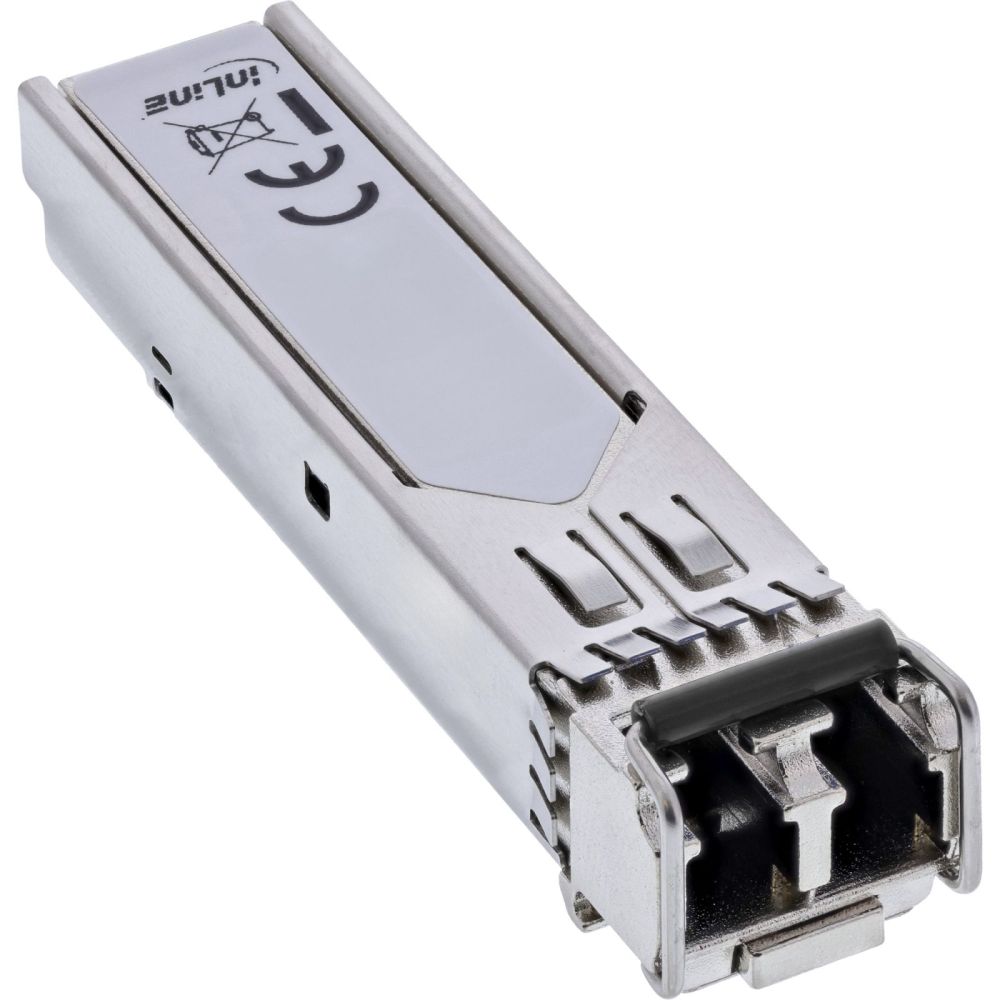

InLine® SFP module fiber optic 850nm multimode with LC sockets, 300m, 2.5Gb/s content_copy

SFP transceiver module for 2.5 Gb/s over multimode fiber
High compatibility with standard network devices and switches
Optical LC duplex interface for a stable connection
Digital diagnostic monitoring (DDM) for real-time performance analysis
Hot-pluggable for easy installation and flexible replacement
The InLine® SFP module is the ideal solution for fast and reliable network connections. With a transmission rate of up to 2.5 Gb/s and a range of 300 meters, it enables stable and high-performance data transmission for corporate networks and data centers.
The optical LC duplex interface ensures precise signal transmission and is compatible with common network devices and switches. The digital diagnostic monitoring (DDM) function allows real-time control of key operating parameters and ensures secure and efficient network performance.
Thanks to the hot-pluggable design, the module can be easily installed or replaced without interrupting network operation. The robust construction guarantees reliable performance in the temperature range from 0 °C to 70 °C.
Technical specifications:
Wavelength: 850nm
Optical interface: LC Duplex
Transmission distance: 300 m (multimode fiber optics)
Digital diagnostics and monitoring (DDM)
Operating voltage: +3.3 V
Hot-pluggable design
Operating temperature: 0 °C to 70 °C
Storage temperature: -40 °C to 85 °C

Certificates
Compliance certificates	CE, RoHS, TÜV mark
Features
Product colour	Stainless steel
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Other features
Dimensions (WxDxH)	60 x 0.18 x 16 mm
Packaging data
Package width	40 mm
Package depth	85 mm
Package height	15 mm
Package volume	100 cm³
Package weight	15 g
Package type	Polybag
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	2500 Mbit/s
Interface type	SFP
Fiber optic connector	LC
Maximum transfer distance	300 m
Wavelength	850 nm
Multi-mode fiber (MMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Technical data
Article length	6.00cm
Packaging volume	0.0001m³
Coding	CISCO
Length packaging	0.085m
Article width	1.60cm
Article height	1.60cm
Width packaging	0.040m
Max. distance	300m
Transmission speed	2.5Gb/s
Type	SFP module
Height packaging	0.015m
Variant	Multi-Mode
Net weight	0.015kg
Number of ports	1
Weight	0.018kg
Weight & dimensions
Width	60 mm
Depth	0.18 mm
Height	16 mm
Weight	1.6 kg

---
