InLine® SFP+ module fibre optic EW 1550nm SM, LC sockets, 40km, 10Gb/s content_copy

10 Gb/s high speed for your network: Ideal for server rooms, company networks and demanding connections with high bandwidth.
Up to 40 km fibre optic range: For single-mode routes between buildings, floors or technical rooms – stable and interference-free.
1550 nm EML laser for clear transmission: High signal quality with low attenuation – even over medium distances.
Digital Monitoring (DDM): Monitors operating parameters such as temperature, voltage or signal strength – for maximum control.
MSA standard & hot-plug capable: Compatible with common routers, switches or converters – interchangeable during operation.

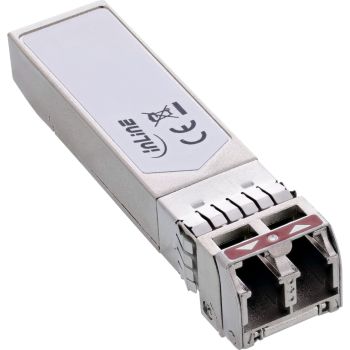

The InLine SFP+ Module 32335K brings powerful 10Gb/s fibre optic technology to your network. With a range of up to 40 km, it is ideal for medium-length single-mode links between buildings or technical areas.
The built-in 1550 nm EML laser, combined with a high-quality APD receiver, ensures stable signal transmission – even over longer connections. Thanks to MSA compatibility, the module can be used in numerous routers, switches and media converters.
The integrated DDM function (Digital Diagnostics Monitoring) enables the monitoring of important operating parameters such as temperature, voltage or reception strength – a major advantage for demanding environments.
The module is hot-plug capable and can be installed or replaced during operation without interrupting the network. With its compact LC duplex interface, it fits seamlessly into structured fibre optic installations.
Experience the power of the perfect connection – with InLine.
Form factor: SFP+ module, MSA-compatible
Connector: LC duplex
Fibre type: Single mode
Wavelength: 1550 nm (transmitter)
Receiving range: 1260–1620 nm
Range: up to 40 km
Speed: up to 10 Gb/s
DDM/DOM: Yes
Hot-plug capable: Yes
Temperature range: 0 °C to +70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	57 x 0.22 x 13 mm
Packaging data
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	21 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	10312.5 Mbit/s
Interface type	SFP+
Fiber optic connector	LC
SFP transceiver standard	EW
Maximum transfer distance	40000 m
Wavelength	1550 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Networking standards	IEEE 802.3ae
Fiber ethernet cabling technology	10GBASE
Single-mode fiber (SMF) supported
Digital Diagnostics Monitoring (DDM)
Power
Input voltage	3.3 V
Power consumption (typical)	2 W
Technical data
Weight	0.022kg
Height packaging	0.020m
Variant	Single-Mode
Max. distance	40km
Type	SFP+ module
Net weight	0.021kg
Number of ports	1
Article length	5.70cm
Article height	1.30cm
Transmission speed	10Gb/s
Width packaging	0.060m
Coding	CISCO
Length packaging	0.090m
Article width	1.30cm
Weight & dimensions
Width	57 mm
Depth	0.22 mm
Height	13 mm
Weight	1.3 kg

---
