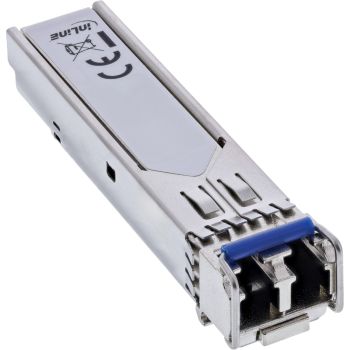

InLine® SFP module fibre optic LX 1310nm SM, LC sockets, 40km, 2.5Gb/s content_copy

Optimised for long distances: Supports single-mode connections with a range of up to 40 km – ideal for demanding fibre optic infrastructures.
Secure fibre optic connection with LC connector: LC duplex sockets enable a stable and space-saving connection in the network.
Stable transmission at 2.5 Gb/s: Perfect for applications where speed and reliability are crucial.
Standard-compatible for easy integration: Works with all devices that support the SFP MSA standard – hot-plug capable.
Flexible use: For media converters, switches and routers with fibre optic connection.
The InLine SFP Module 32335I enables high-performance fibre optic connections over long distances of up to 40 km. With an LC duplex connection, 2.5 Gb/s data rate and 1310 nm wavelength, it is ideal for backbone routes, company networks or connections between remote technical rooms.
Thanks to MSA compatibility, the module can be integrated into almost all SFP slots. The hot-plug function ensures easy installation during operation without system interruption. Reliable performance is guaranteed by the high-quality DFB laser with -2 to +3 dBm transmission power and PIN receiver with -20 dBm sensitivity.
Whether for campus networks, building connections or data centres, this SFP module impresses with its long range, robust design and maximum compatibility. Experience the power of the perfect connection – with InLine.
Form factor: SFP module, MSA-compatible
Connector: LC duplex
Fibre type: Single mode
Range: up to 40 km
Wavelength: 1310 nm
Speed: 2.5 Gb/s
Hot-plug capable: Yes
Temperature range: 0 °C to +70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	59 x 0.17 x 13 mm
Packaging data
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	16 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	2500 Mbit/s
Interface type	SFP
Fiber optic connector	LC
SFP transceiver standard	LX
Maximum transfer distance	40000 m
Wavelength	1310 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Single-mode fiber (SMF) supported
Technical data
Transmission speed	2.5Gb/s
Article length	5.90cm
Width packaging	0.060m
Variant	Single-Mode
Max. distance	40km
Number of ports	1
Length packaging	0.090m
Coding	CISCO
Net weight	0.016kg
Article width	1.30cm
Weight	0.017kg
Type	SFP module
Height packaging	0.020m
Article height	1.30cm
Weight & dimensions
Width	59 mm
Depth	0.17 mm
Height	13 mm
Weight	1.3 kg

---
