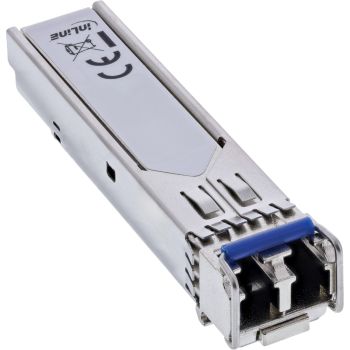

InLine® SFP module fibre optic LX 1310nm SM, LC sockets, 10km, 2.5Gb/s content_copy

Optimised for medium distances: Supports single-mode connections with a range of up to 10 km – ideal for home or building networks.
Secure fibre optic connection with LC connector: LC duplex sockets enable a stable and space-saving connection in the network.
Stable transmission at 2.5 Gb/s: Perfect for applications where speed and reliability are crucial.
Standard-compliant for easy integration: Works with all devices that support the SFP MSA standard – hot-plug capable.
Flexible use: Ideal for switches, media converters or routers with fibre optic connection.
The InLine SFP Module 32335H is the ideal solution for anyone who needs stable and powerful fibre optic connections over short distances. With a range of up to 10 km, an LC duplex connection and a data transfer rate of 2.5 Gb/s, the module offers the highest quality for network applications at home or in the office.
The SFP module operates in single-mode with a wavelength of 1310 nm and is compatible with all devices that support the SFP MSA standard. The hot-plug function ensures that the module can be replaced or installed during operation – without restarting.
Whether for home networks, building cabling or connections between technical rooms, the InLine module can be integrated in a variety of ways. Benefit from reliable speed, standardised design and high compatibility.
Experience the power of the perfect connection – with InLine.
Form factor: SFP module, MSA-compatible
Connector: LC duplex
Fibre type: Single mode
Range: up to 10 km
Wavelength: 1310 nm
Speed: 2.5 Gb/s
Hot-plug capable: Yes
Temperature range: 0 °C to +70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	57 x 0.17 x 13 mm
Packaging data
Package width	60 mm
Package depth	90 mm
Package height	20 mm
Package volume	0 cm³
Package weight	16 g
Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	2500 Mbit/s
Interface type	SFP
Fiber optic connector	LC
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Rx wavelength (min)	1260 nm
Rx wavelength (max)	1620 nm
Single-mode fiber (SMF) supported
Technical data
Length packaging	0.090m
Article width	1.30cm
Max. distance	10km
Variant	Single-Mode
Number of ports	1
Height packaging	0.020m
Net weight	0.016kg
Article height	1.30cm
Article length	5.70cm
Type	SFP module
Transmission speed	2.5Gb/s
Weight	0.017kg
Width packaging	0.060m
Coding	CISCO
Weight & dimensions
Width	57 mm
Depth	0.17 mm
Height	13 mm
Weight	1.3 kg

---
