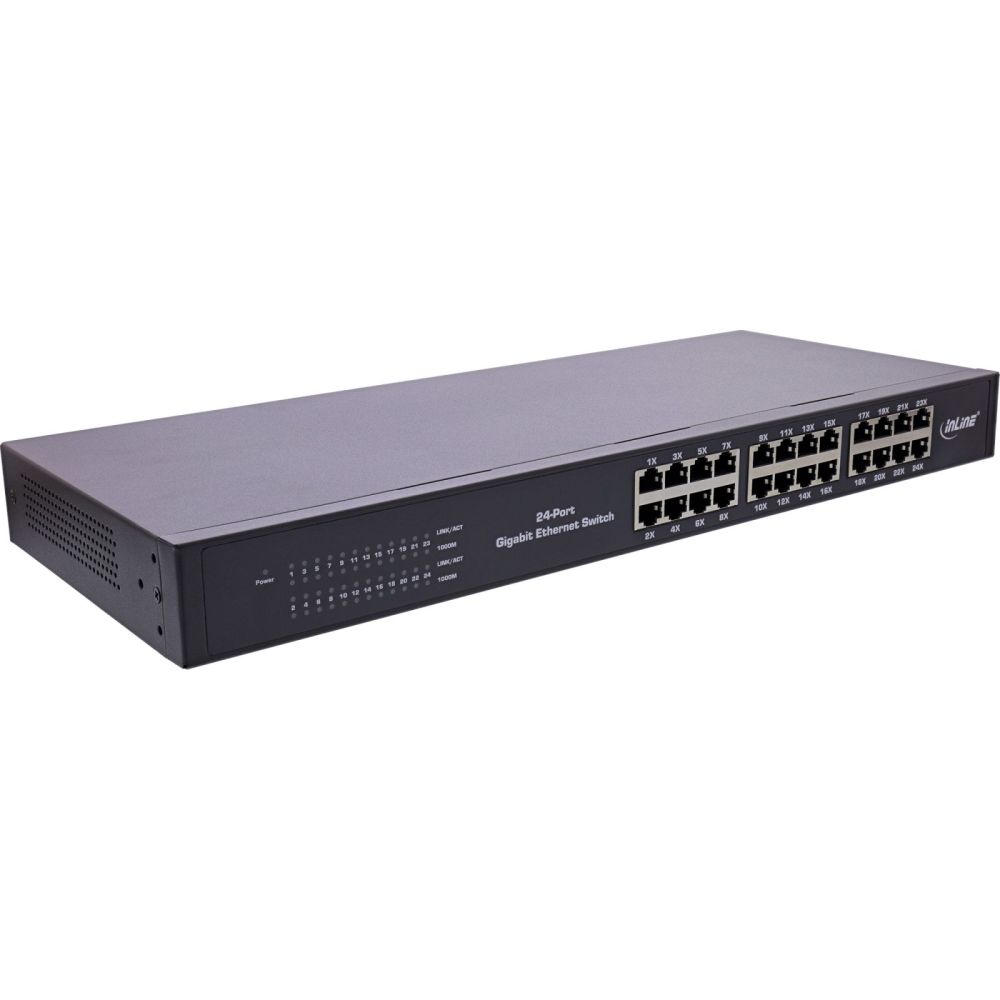

InLine® Gigabit Network Switch 24-Port, 1Gb/s, 48,26cm (19"), 1U, metal, fanless content_copy

Efficiently expand a Gigabit network in a 19-inch rackHigh port density for many end devices: 24x 10/100/1000 Mb/s with Auto-Negotiation and Auto MDI/MDIX.
Reduce power consumption during operation: IEEE 802.3az (EEE) adapts signal strength to cable length and load.
Stable forwarding under data load: Store-and-forward and IEEE 802.3x flow control support smooth traffic.
Quick diagnostics in everyday use: LEDs for Power and Link/Activity/Speed show status at a glance.
Rack-mountable and robust: 19 inch, 1U, metal housing with mounting brackets.
The 24-port Gigabit switch distributes traffic reliably and brings existing infrastructures up to 1 Gb/s per port with minimal effort. Auto-Negotiation and Auto MDI/MDIX simplify cabling, while IEEE 802.3az dynamically reduces power demand. Store-and-forward, flow control and jumbo frames support reliable forwarding; the MAC address table with 16K entries provides efficient switching.
In professional IT environments and existing infrastructures of companies and public institutions, the device can be operated in a space-saving manner in a 19-inch rack. For on-site installations and service deployments, the clear LED indicators and robust metal construction support swift commissioning and reliable operation.
Ports: 24x 10/100/1000 Mb/s, Auto-Negotiation, Auto MDI/MDIX
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Forwarding method: store-and-forward
Switching capacity: 52 Gb/s
MAC address table: 16K
Jumbo frames: supported
LEDs: LINK/ACT/SPEED (green), Power (red)
Chipset: RTL8382L, 2x RTL8218D, 2x RTL8231
Dimensions: 440 x 180 x 44 mm
Form factor: 19 inch, 1U
Mounting: 19-inch brackets included
Operating temperature: 0-40 °C
Storage temperature: -10-70 °C
Operating humidity: 10-90 %, non-condensing
Storage humidity: 5-90 %, non-condensing
Power supply: AC 100-240 V, 50/60 Hz (internal power supply)
Power consumption: max. 21 W
Housing: metal
Cables: UTP Cat.3/4/5 (10Base-T), UTP Cat.5/5e or higher (100Base-TX), UTP Cat.5e or higher (1000Base-T), EIA/TIA-568 100 Ohm STP, up to 100 m each
Forwarding rate: 10 Mb/s 14880 pps; 100 Mb/s 148800 pps; 1000 Mb/s 1488000 pps

Data transmission
Switching capacity	52 Gbit/s
MAC address table	16000 entries
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Housing material	Metal
LED indicators	Activity, Link, Power, Speed
Rack mounting
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support
Full duplex
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Other features
Dimensions (WxDxH)	440 x 25.16 x 180 mm
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports	24
Packaging content
Rack mount kit
Packaging data
Package width	260 mm
Package depth	516 mm
Package height	107 mm
Package volume	14400 cm³
Package weight	1.84 kg
Performance
Maximum data transfer rate	1000 Mbit/s
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	21 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Technical data
Number of ports	24
Packaging volume	0.0144m³
Article length	44.00cm
Net weight	1.843kg
Height packaging	0.107m
Article width	18.00cm
Type	19" switch
Length packaging	0.516m
Transmission speed	10/100/1000Mb/s
Weight	2.516kg
Width packaging	0.260m
Design	Rack-Mount
Article height	4.60cm
Fans
PoE
Managed
Fibre optics
Weight & dimensions
Width	440 mm
Depth	25.2 mm
Height	180 mm
Weight	4.6 kg

---
