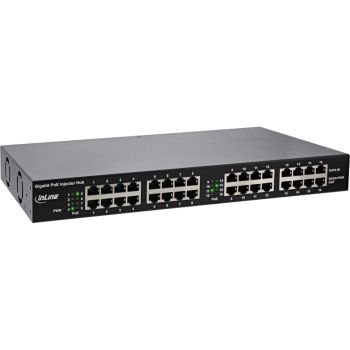

INLINE PoE+ Gigabit Network Injector Hub 16 port 16x PoE+ 19inch brackets incl. 2 fans content_copy

PoE+ retrofit for 16 ports without replacing the switchFast upgrade without replacing the infrastructure: You continue to use existing switches and provide PoE centrally.
Powerful for cameras and Wi-Fi: You power 16 devices via PoE+ with up to 30 W per port, 250 W total.
Stable Gigabit data: You pass data through transparently between DATA IN and DATA + PWR OUT.
Safe continuous rack operation: You benefit from protection against overcurrent, overvoltage and overheating per port as well as active cooling.
Flexible deployment: Power via Endspan over Cat.5/5e/6 and read states on clear status LEDs.
With the PoE+ Gigabit injector hub, you retrofit existing network segments to IEEE 802.3af/at without replacing existing switches. You power up to 16 PoE-capable end devices such as IP cameras or wireless access points with up to 30 W per port and pass data through transparently at 10/100/1000 Mb/s. Protection functions per port and two built-in fans support reliable operation.
In a 48,3 cm ( 19 inch ) rack with 1 U, you mount the solution quickly and provide PoE centrally. The device proves itself in professional IT environments, in on-site installations, in service deployments, and in existing infrastructures of companies and public institutions.
Form factor: 48,3 cm ( 19 inch ) 1 U
Ports DATA IN: 16x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
Ports DATA + PWR OUT: 16x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
PoE type: Endspan
PoE output voltage: 48-56 V DC per port
PoE output power: max. 30 W per port
Total power: 250 W
Pin assignment: 1/2 (+), 3/6 (-)
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af, IEEE 802.3at
Cooling: 2 fans (active)
LED indicators: PWR, PoE (1-16)
Input voltage: 100-240 V DC (external power supply or screw terminal block)
Dimensions: 358 x 205 x 44 mm
Weight: approx. 2.4 kg
Operating temperature: 0-40 °C
Storage temperature: -10-70 °C
Humidity: 20-95 % non-condensing
Cable: Cat.5/5e/6 Ethernet cable

Certificates
Compliance industry standards	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Features
Product colour	Black
Power protection features	Over current, Over voltage, Overheating
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Power over Ethernet (PoE)
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Storage temperature (T-T)	-10 - 70 °C
Packaging content
Wall mounting kit
AC adapter included
Power cord included
Manual
Packaging data
Package width	260 mm
Package depth	535 mm
Package height	950 mm
Package weight	3.3 kg
Package volume	132200 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	16
RJ-45 input ports	16
RJ-45 output ports	16
Power
Power over Ethernet (PoE) voltage	56 V
Output power	250 W
AC adapter input voltage	100 - 240 V
Power over Ethernet (PoE) power per port	30 W
Technical data
Length packaging	0.535m
Net weight	2.400kg
Width packaging	0.260m
Number of ports	16
Height packaging	0.950m
Article length	35.80cm
Type	Injector
Article height	4.30cm
Weight	3.300kg
Article width	20.00cm
Packaging volume	0.1322m³
Weight & dimensions
Size (imperial)	48.3 cm (19")
Width	200 mm
Depth	358 mm
Height	43 mm
Weight	2.4 kg
Dimensions (WxDxH)	200 x 358 x 43 mm

---
