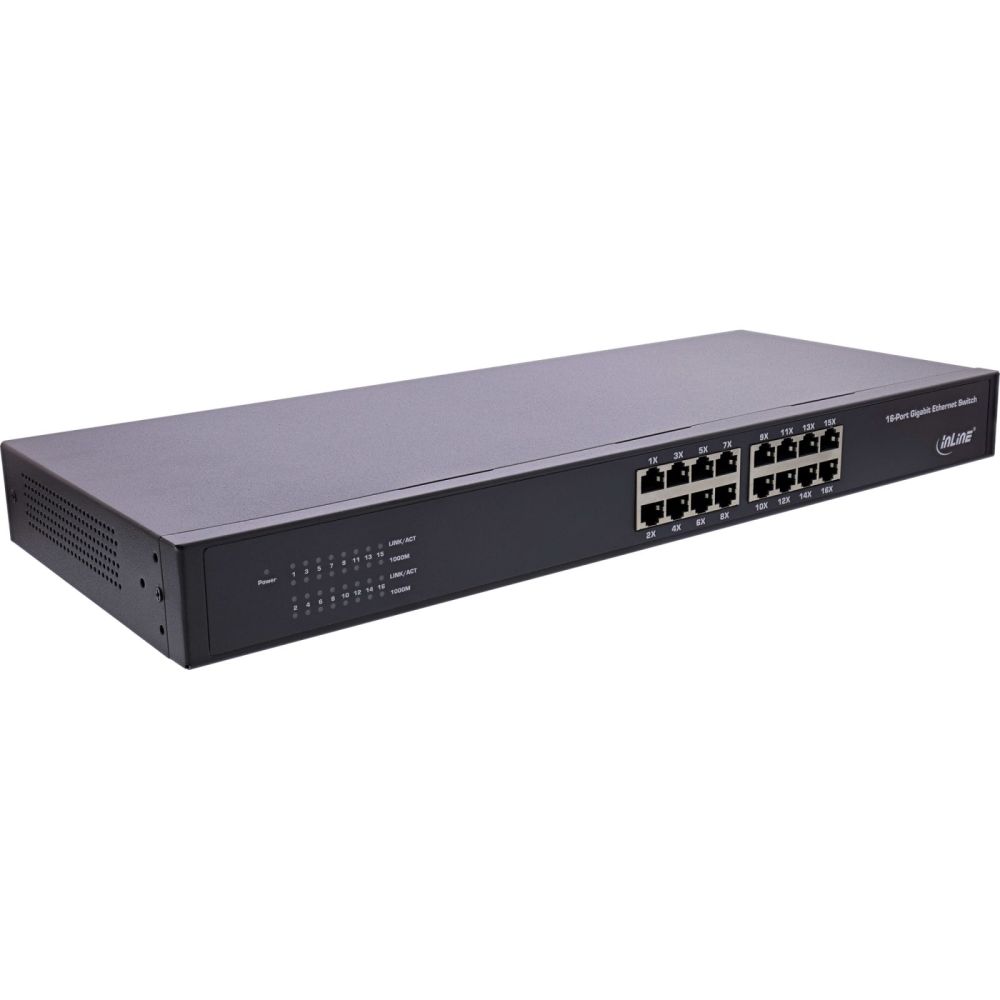

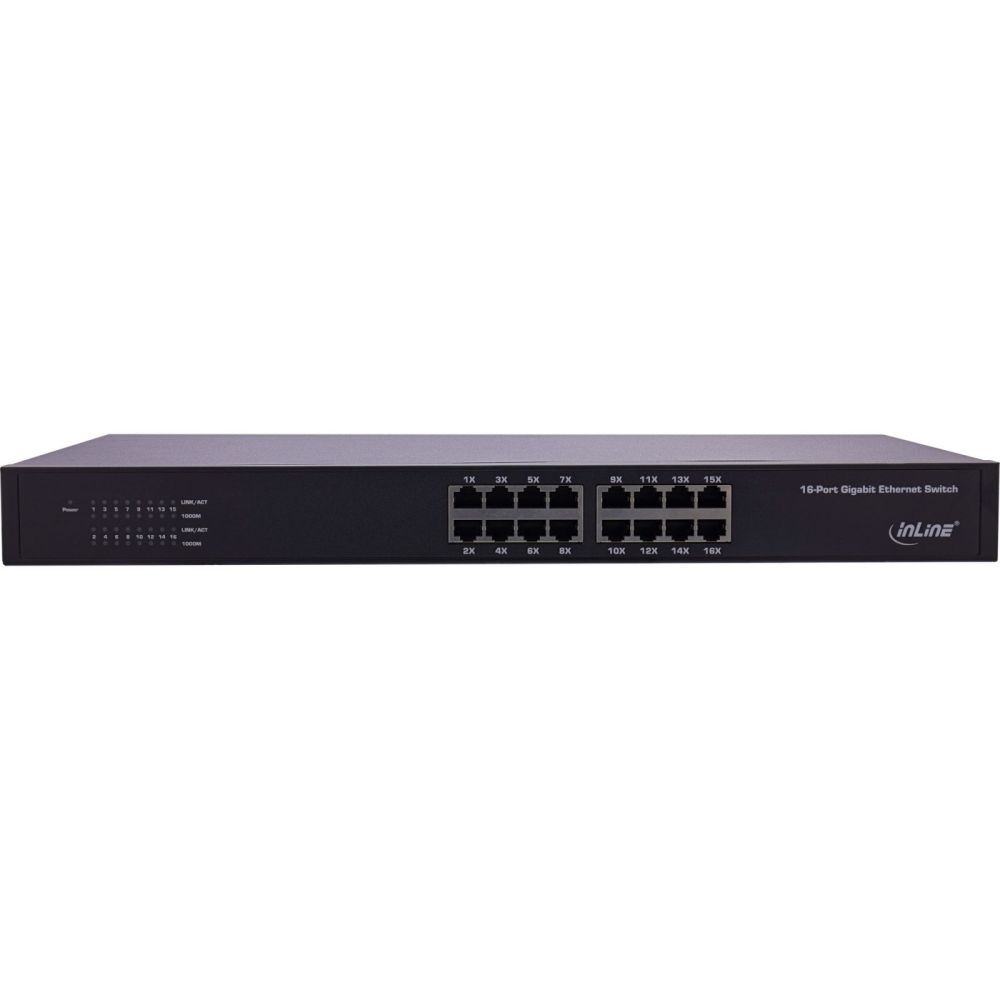

InLine® Gigabit network switch 16-port, 1Gb/s, 48,3 cm ( 19 inch ) 1U, metal, fanless content_copy

16-port Gigabit switch with automatic speed adjustment.
Plug & Play and Auto MDI/MDI-X crossover detection – Each individual port automatically detects the speed of the connected devices.
Green IT: Energy-saving thanks to IEEE 802.3az Energy Efficient Ethernet by detecting the cable length and automatic signal strength.
Store-and-forward technology: Prevents the forwarding of corrupted packets for stable data transmission.
Wireless: Noiseless design for office and home
With the InLine® 16-Port Gigabit Switch you can take your network connection to a new level. The switch automatically detects the optimum speed for each connected device and works reliably in half or full duplex mode. Installation is straightforward thanks to Auto-MDI/MDI-X – simply plug in and get started!
The integrated store-and-forward technology ensures that faulty packets are filtered out of the data traffic before they burden the network. The switch supports IEEE 802.3az Energy Efficient Ethernet, which automatically reduces power consumption depending on cable length and activity.
With its 19-inch format and fanless design, the switch is ideal for quiet use in offices or home applications. The robust design ensures reliable performance around the clock.
Technical specifications:
16x RJ45 ports, 10/100/1000Base-T, Auto-MDI/MDI-X
Chipsätze: RTL8382L + RTL8218D + 2x RTL8231
Store-and-forward switching, 8K MAC address table
IEEE standards: 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth: 32 Gbit/s
Jumbo frame: 9216 bytes
LED indicators: PWR, LNK/ACT
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: max. 21 W
Dimensions: 480 x 180 x 44 mm
Weight: approx. 2.15 kg
Operating temperature: 0–40 °C
Storage temperature: -40–70 °C
Scope of delivery
1x InLine® PoE+ Gigabit network injector hub 8 port
2x operating instructions (German/English)
1x power supply
2x 48,3 cm ( 19 inch ) mounting bracket
6x screws for the mounting brackets
4x rubber feet

Data transmission
Switching capacity	32 Gbit/s
MAC address table	8000 entries
Jumbo frames	9216
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Rack mounting
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Other features
Dimensions (WxDxH)	440 x 24.39 x 180 mm
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports	16
Packaging content
Cables included	AC
Rack mount kit
Packaging data
Package type	Box
Package width	260 mm
Package depth	520 mm
Package height	110 mm
Package volume	14900 cm³
Package weight	1.76 kg
Performance
Maximum data transfer rate	1000 Mbit/s
Built-in processor
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	21 W
Power supply included
Technical data
Design	Rack-Mount
Article height	4.70cm
Weight	2.439kg
Height packaging	0.110m
Article width	18.00cm
Type	19" switch
Packaging volume	0.0149m³
Transmission speed	10/100/1000Mb/s
Length packaging	0.520m
Article length	44.00cm
Operation temperature	0 to +40°C
Net weight	1.759kg
Storage temperature	-40 to +70°C
Width packaging	0.260m
Number of ports	16
Managed
Fibre optics
PoE
Fans
Weight & dimensions
Width	440 mm
Depth	24.4 mm
Height	180 mm
Weight	4.7 kg

---
