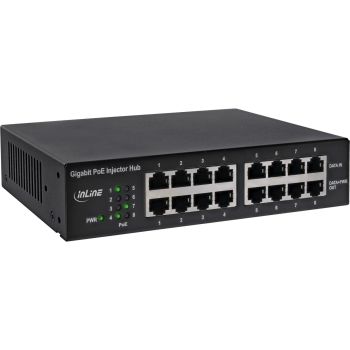

INLINE PoE+ Gigabit Network Injector Hub 8 port 8x PoE+ 48,3 cm ( 19 inch ) brackets incl. without fan content_copy

8-port injector hub for PoE/PoE+ with up to 30 W per port
Powers IP cameras, access points & more directly via the network cable
Gearless, fanless design for 48,3 cm ( 19 inch ) rack installation
High energy efficiency with 91.4% in operation
Protection against overcurrent, overvoltage and overheating per port
With the InLine® PoE+ injector hub, you can easily upgrade your network to Power over Ethernet (PoE) without having to replace your existing switches. The hub supplies up to eight devices simultaneously with power and data via standard Ethernet cables - without any additional power cables.
Thanks to support for PoE in accordance with IEEE 802.3af and PoE+ in accordance with IEEE 802.3at, each port delivers up to 30 watts of power - ideal for IP cameras, VoIP telephones or access points. The fanless 48,3 cm ( 19 inch ) 1U design enables quiet and reliable operation in office and server environments.
With up to 120 W total power via the power supply unit and 240 W via screw terminals, the hub offers sufficient reserves for high-performance applications. LED indicators provide information on the status and activity of the individual ports.
Technical specifications:
8x RJ45 DATA IN & 8x DATA + PWR OUT, each 10/100/1000Base-T
PoE/PoE+ compatible (IEEE 802.3af/at), up to 30 W per port
Total power: up to 240 W
Power supply: 100–240 V AC or 56 V DC via screw terminals
Protective functions: Overcurrent, overvoltage, overheating
LED indicators: PWR, PoE 1–8
Dimensions: 188 x 120 x 44 mm
Operating temperature: 0–40 °C
Storage temperature: -20–70 °C
Scope of delivery:
1x InLine® PoE+ injector hub 8 port
1x power supply
2x operating instructions (DE/EN)
2x 48,3 cm ( 19 inch ) mounting bracket
6x screws
4x rubber seals

Features
Product colour	Black
LED indicators	PoE, Power
Rack mounting
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	20 - 95%
Packaging content
Number of products included	1 pc(s)
AC adapter included
Manual
Packaging data
Package width	237 mm
Package depth	370 mm
Package height	85 mm
Package weight	2.1 kg
Package volume	7500 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
Power
Power over Ethernet (PoE) voltage	56 V
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W
Technical data
Type	Injector
Article width	12.00cm
Width packaging	0.237m
Height packaging	0.085m
Article height	4.40cm
Length packaging	0.370m
Weight	2.104kg
Packaging volume	0.0075m³
Article length	18.80cm
Net weight	1.521kg
Number of ports	8
Weight & dimensions
Size (imperial)	48.3 cm (19")
Width	120 mm
Depth	188 mm
Height	44 mm
Weight	1.52 kg
Dimensions (WxDxH)	120 x 188 x 44 mm

---
