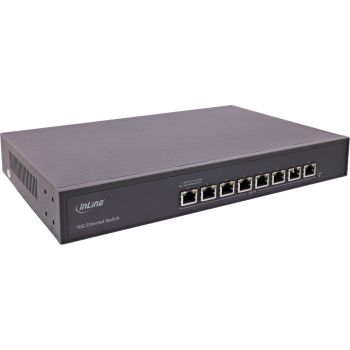

InLine® Network Switch 8-Port, 10 Gigabit Ethernet, 48,3 cm ( 19 inch ), Metal, Fan content_copy

Genuine 10GbE performance for professional networks: Eight RJ45 ports with 10GBase-T enable maximum transfer rates for data-intensive applications.
Maximum compatibility thanks to comprehensive standard support: Supports all common IEEE network standards from 10BASE-T to 10GBASE-T, including Auto-MDI/MDI-X.
Robust metal housing with 48,3 cm ( 19 inch ) mounting option: Ideal for installation in network cabinets or professional IT environments.
Intelligent data handling with high MAC capacity: 16K MAC addresses, store-and-forward transmission and jumbo frame support for efficient traffic.
Reliable continuous operation with active cooling: The integrated fan ensures stable operating temperatures even under full load.
The InLine® 10 Gigabit Network Switch with eight RJ45 ports is the ideal solution for professional users who want to combine high bandwidth requirements with easy integration. With support for common network standards – including 10GBASE-T – as well as Auto-MDI/MDI-X and automatic speed detection, the switch offers maximum flexibility in daily operation. Store-and-forward technology ensures that damaged packets are not forwarded, while a MAC table with 16,000 entries and jumbo frame support efficiently manages even complex network structures. The robust metal housing and 48,3 cm ( 19 inch ) rack mounting option make the switch ideal for server rooms, workshops or laboratories. Active ventilation ensures the necessary temperature balance and guarantees stable operation – even under permanently high loads. With a packet buffer of 12 Mbit and a switching capacity of 160 Gb/s, this device represents a future-proof expansion of your network environment.
Chipset: RTL9303
Standards: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10G Ethernet), IEEE 802.3x Flow control
Ports: 8x 10GBase-T RJ45, Auto-MDI/MDI-X
LED indicators: Power supply, port status
Network cable: 10BASE-T: UTP Category 3, 4, 5 cable or higher (≤ 100m); 100BASE-TX: UTP Category 5, 5e cable or higher (≤ 100m); 1000BASE-T: UTP Category 5e cable or higher (≤ 100m); 10GBASE-T: UTP Category 6a cable or higher (≤ 100m)
MAC address table: 16K, automatic learning, automatic updates
Jumbo frame supported
Packet buffer: 12Mbit
Packet forwarding rate: 119.04 Mp/s
Transmission type: Store-and-forward
Bandwidth: 160Gbit
VLANs: 1-4094
Dimensions (W x D x H): 320x210x45mm
Weight: approx. 1.8 kg
Power consumption: 100~240V AC, 50/60Hz, 12V DC, 4A
Power consumption: max. 34 watts
Fan: 12V, 0.48W, 4.8 CFM, 4000 rpm, approx. 35dBA, 40x40x20mm
Ambient conditions: Operating temperature 0-40°C, storage temperature -40-70°C, operating humidity 10-90% non-condensing, storage humidity 5-95% non-condensing
Scope of delivery: 1x InLine® 10 Gigabit network switch; 1x user manual (German/English); 1x power cable; 2x 48,3 cm ( 19 inch ) mounting brackets; 10x screws for mounting brackets; 4x rubber feet

Certificates
Compliance certificates	CE, TÜV mark
Data transmission
Switching capacity	160 Gbit/s
Forwarding rate	119.04 Mpps
MAC address table	16000 entries
Packet buffer memory	12 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
LED indicators	Power, Status
Rack mounting
Logistics data
Country of origin	Taiwan
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6a
Ethernet LAN data rates	100,1000,10000 Mbit/s
Virtual LAN features	Port-based VLAN
Number of VLANs	4094
10G support
Auto MDI/MDI-X
MAC address auto-learning supported
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Other features
Dimensions (WxDxH)	320 x 24.04 x 210 mm
Packaging content
Cables included	AC
Manual
Rack mount kit
Packaging data
Package type	Box
Package width	290 mm
Package depth	375 mm
Package height	85 mm
Package volume	1600 cm³
Package weight	1.84 kg
Performance
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity	8
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	12 V
Input current	4 A
Power consumption (max)	34 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Technical data
Max. supported data transfer rate	10Gb/s
Number of ports	8
Transmission speed	10Gb/s
Length packaging	0.375m
Article width	21.00cm
Height packaging	0.085m
Weight	2.404kg
Design	Desktop or rack/wall mounting
Net weight	1.840kg
Packaging volume	0.0016m³
Width packaging	0.290m
Type	19" switch
Article height	4.50cm
Article length	32.00cm
PoE
Managed
Fans
Fibre optics
Weight & dimensions
Width	320 mm
Depth	24 mm
Height	210 mm
Weight	4.5 kg

---
