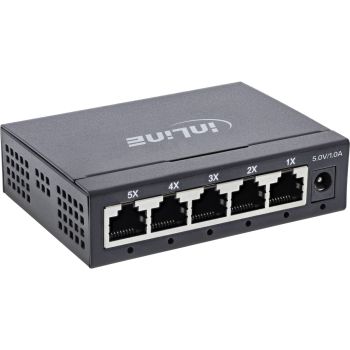

InLine® 5-port gigabit switch, 1 Gb/s, desktop, metal housing, fanless content_copy

Easy network expansion: Connect up to 5 devices via Ethernet. Plug-and-play without setup. Ideal as a LAN switch or network switch for stable LAN connections.
Automatic port adjustment: Each port automatically detects speed and duplex. Supports 10 Mb/s 100 Mb/s and 1000 Mb/s. Auto-negotiation for flexible use at home LAN...
Quiet operation without fan: The fanless metal housing operates silently. Suitable for quiet areas. Robust design for reliable continuous operation in everyday work environments.
Reliable data forwarding: Store-and-forward checks data packets before sending. This reduces errors and ensures stable transmissions in the home network and local LAN.
Flexible mounting and tidiness: Compact design for desktop. Pre-punched holes allow wall mounting. Auto MDI/MDIX avoids crossover cables and saves time for clean cabling.
The InLine Gigabit network switch with five ports is the ideal solution for easy expansion of an existing network. It enables the connection of several Ethernet devices via patch cables with a length of up to 100 m and reliably distributes data within the local network. Plug-and-play operation means that no software installation or configuration is required.
All ports automatically detect the connected devices and automatically adjust the speed and duplex mode. Transfer rates of 10 Mb/s, 100 Mb/s and 1000 Mb/s are supported. Auto MDI/MDIX ensures that no special crossover cable is required.
The robust metal housing protects the electronics inside and supports stable continuous operation. Thanks to the fanless design, the switch operates completely silently. The compact design is suitable for use on the desk or for space-saving wall mounting using the pre-punched mounting holes on the underside.
The switch supports common Ethernet standards and can be easily integrated into existing networks. It is ideal for applications where reliable, quiet and maintenance-free network distribution is required.
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
CSMA/CD
TCP/IP
IEEE802.3x flow control
Backpressure for half-duplex
MAC address table: 4K
Forwarding rate: 1488000 pps per port
Backbone bandwidth: 1 Gb/s
Operating temperature: 0 °C to 60 °C
Storage temperature: -10 °C to 70 °C

Data transmission
Switching capacity	1 Gbit/s
Forwarding rate	1.488 Mpps
MAC address table	4000 entries
Transmission method	Store-and-forward
Store-and-forward
Design
Product colour	Black
LED indicators	Link, Power
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex
Half duplex
Flow control support
Auto MDI/MDI-X
Auto-negotiation
MAC address auto-learning supported
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Other features
Dimensions (WxDxH)	93 x 2.89 x 68 mm
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports	5
Packaging data
Package width	110 mm
Package depth	160 mm
Package height	65 mm
Package volume	1200 cm³
Package weight	162 g
Performance
Maximum data transfer rate	1000 Mbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power
DC input voltage	5 V
Input current	1 A
Power supply included
Technical data
Height packaging	0.065m
Article height	2.50cm
Number of ports	5
Type	Desktop switch
Width packaging	0.110m
Transmission speed	10/100/1000Mb/s
Article width	6.80cm
Net weight	0.162kg
Design	Desktop
Packaging volume	0.0012m³
Article length	9.30cm
Weight	0.289kg
Length packaging	0.160m
Fibre optics
Fans
Managed
PoE
Weight & dimensions
Width	93 mm
Depth	2.89 mm
Height	68 mm
Weight	2.5 kg

---
