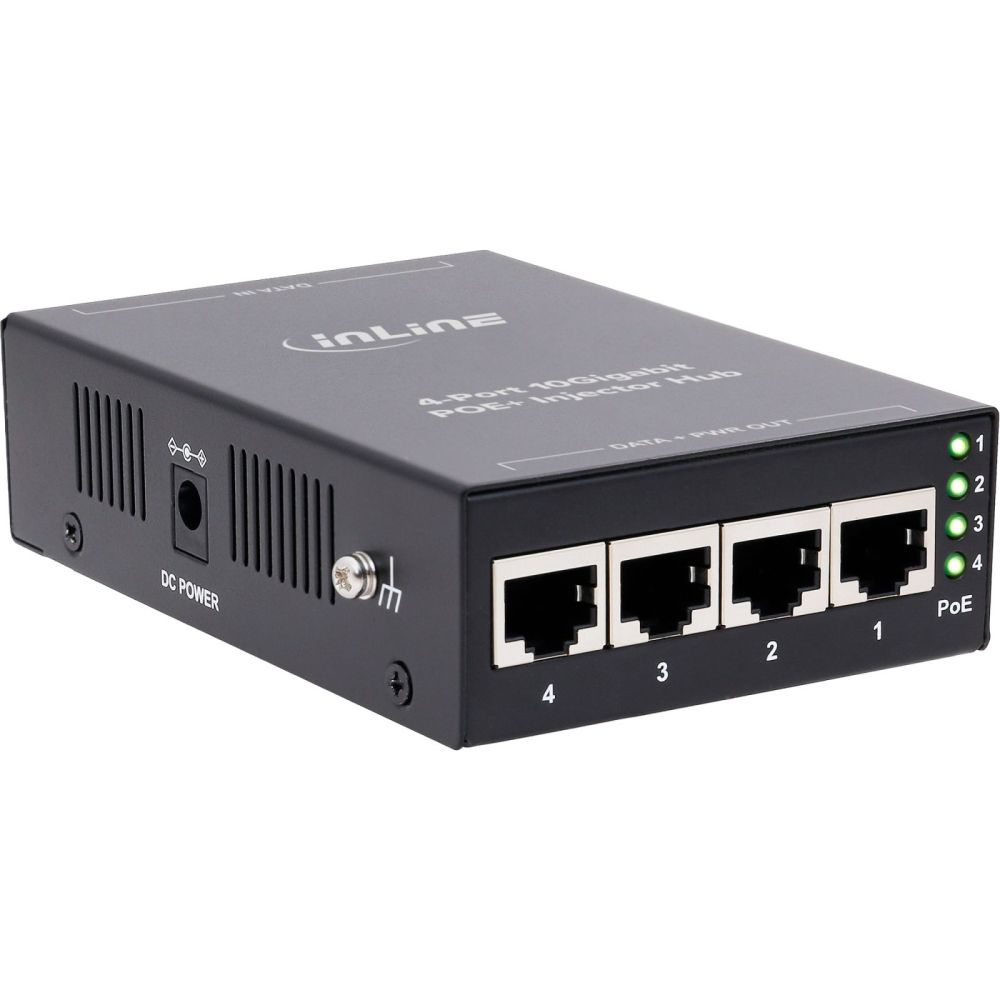

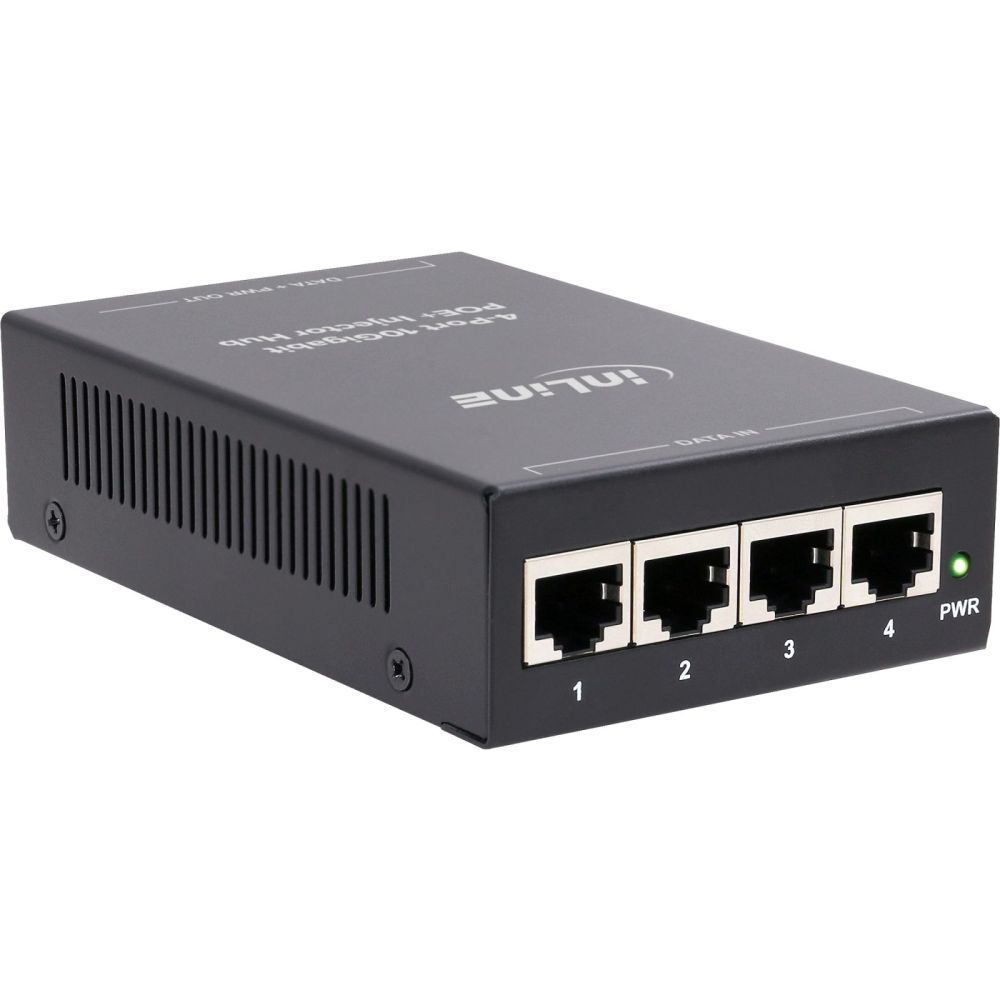

InLine® PoE+ 10Gigabit injector hub 4 port (4x PoE+), 10Gb/s, metal, fanless content_copy

Easy PoE upgrade for existing networks: Power up to four devices without replacing your switches – ideal for retrofitting.
High performance for professional applications: With up to 30W per port and a total power output of 65W, the injector is suitable for demanding devices.
Super-fast 10G connectivity: Supports 10GBase-T on all ports – perfect for data-intensive applications such as IP cameras or access points.
Reliability through triple protection: Each port offers protection against overcurrent, overvoltage and overheating for maximum operational reliability.
Compact, robust and informative: Metal housing with clear LED indicators ensures easy installation and an optimal overview of network operation.
With the InLine® PoE+ 10 Gigabit Network Injector Hub, you can expand your network with powerful PoE functionality in no time at all – without having to replace existing switches. The compact injector reliably supplies up to four network devices such as IP cameras, WLAN access points or IP telephones with power and data via a single network cable. Both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) are supported with up to 30 watts per port, for a total of 65 watts available.
Thanks to 10GBase-T support on all four RJ45 ports, the device is ready for modern, high-performance networks. PoE power is supplied via the endspan method, while Auto-MDI/MDI-X allows for easy connection to any network device. For maximum operational reliability, each output is equipped with overcurrent, overvoltage and overheating protection. The LED indicators for power and PoE status provide an overview at all times.
Whether for home offices, video surveillance or professional network installations, this PoE injector impresses with its performance, security and flexibility in a robust metal housing.
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 5G/2.5GBase-T, IEEE 802.3an 10GBase-T, IEEE 802.3af, IEEE 802.3at
Ports DATA IN: 4x 10GBase-T RJ45, Auto-MDI/MDI-X
Ports DATA + PWR OUT: 4x 10GBase-T RJ45, Auto-MDI/MDI-X
PoE power supply: Endspan, 56V DC per port, max. 30W
Total power: 65 watts
Pin assignment: Pins 1/2(+), 3/6(–)
LED indicators: PWR, PoE (1–4)
Dimensions: 120 x 78 x 32 mm
Weight: approx. 500 g
Power consumption: 56V DC external power supply
Environmental conditions: Operation 0–40° C, storage –20–70° C, humidity 5–95% non-condensing

Features
Product colour	Black
Network
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10000 Mbit/s
Networking standards	IEEE 802.3at, IEEE 802.3af, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Packaging content
Number of products included	1 pc(s)
Packaging data
Package width	145 mm
Package depth	230 mm
Package height	80 mm
Package weight	878 g
Package volume	2700 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
DC-in jack
Power
Power over Ethernet (PoE) voltage	56 V
Output power	65 W
Technical data
Number of ports	4
Max. supported data transfer rate	10Gb/s
Weight	0.878kg
Net weight	0.288kg
Max. supported power	65W
Width packaging	0.145m
Packaging volume	0.0027m³
Article height	3.20cm
Type	Injector
Max. supported PoE standard	802.3at
Length packaging	0.230m
Article length	12.00cm
Height packaging	0.080m
Article width	8.00cm
Weight & dimensions
Width	80 mm
Depth	120 mm
Height	32 mm
Weight	500 g
Dimensions (WxDxH)	80 x 120 x 32 mm

---
