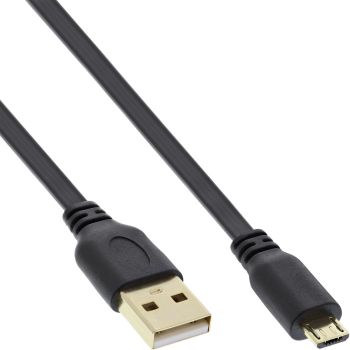

InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m
|
2,06 EUR |
|||||||||||
|
( 2,45 EUR incl. VAT ) ≈ £1.72 | ≈ $2.31 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22194699 | ||||||||||
| Mfg Part No: | 31703F | ||||||||||
| UPC/EAN: | 4043718275489 | ||||||||||
| Weight: | 0.012 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 31703F:
Fast data transfer: USB 2.0 supports data rates of up to 480 Mb/s, enabling reliable data exchange between compatible devices with USB-A and Micro-B ports.
Suitable connector combination: The USB-A male connector connects compatible devices with a USB-A port to devices with a Micro-B socket. Ideal for existing USB connections.
Gold-plated contacts: The gold-plated contacts support a reliable electrical connection between the connected devices and complement the Micro-USB cable's robust construction.
Backward-compatible USB standard: The USB 2.0 cable is backward compatible and can also transfer data with compatible devices using older USB standards.
This data cable suits connections within existing USB installations where different distances need to be bridged. The series is available in 0.3 m, 0.5 m, 1 m, 2 m and 3 m lengths, allowing you to choose the length to match the intended distance between devices.
The variants allow both short connections between adjacent devices and longer cable runs. This lets you select the cable length to suit the installation conditions or device layout.
USB standard: USB 2.0, backward compatible
Connector 1: USB-A male connector
Connector 2: Micro-B male connector
Color: Black
Variant: Flat cable with gold-plated contacts
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | Micro-USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Product colour | Black |
| Logistics data | |
| Package volume | 100 cm³ |
| Packaging data | |
| Package width | 65 mm |
| Package depth | 95 mm |
| Package height | 11 mm |
| Package weight | 12 g |
| Technical data | |
| Packing | Retail |
| Length packaging | 0.095m |
| Packaging volume | 0.0001m³ |
| Article height | 0.90cm |
| Weight | 0.012kg |
| Width packaging | 0.065m |
| Article length | 30.00cm |
| Colour | Black |
| Height packaging | 0.011m |
| Outer diameter | 1.45x4.8mm |
| Side A | USB-A male |
| Length | 0.30m |
| Article width | 1.50cm |
| USB specification | USB 2.0 |
| Data transmission rate | 480Mb/s |
| Type | USB 2.0 micro |
| Signal | Data |
| Side B | microUSB-B male |
| Net weight | 0.009kg |
| Storage temperature | -20 - 60°C |
| Operation temperature | 0 - 50°C |
| Variant | Gold plated contacts, flat |
| Shielding | Unshielded |
| Gold plated contacts | |
| UL | |
| Weight & dimensions | |
| Cable length | 0.3 m |
| Width | 15 mm |
| Depth | 300 mm |
| Height | 9 mm |
| Weight | 9 g |
| Dimensions (WxDxH) | 15 x 300 x 9 mm |
Questions & answers
What is the delivery time of InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m?
The article InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 31703F to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m always at the best possible price. We can give you a discount of 2% on InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Micro-USB 2.0 flat cable, USB-A to Micro-B, black, 0.3 m we can offer you a price of 2,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
