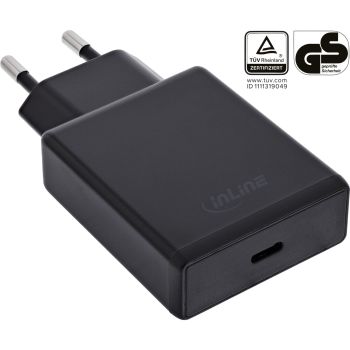

InLine® USB power supply charger, single USB-C, PD, AVS, 65W, black content_copy

65 W USB-C fast charger for smartphones, tablets and laptopsFast charging at up to 65 W: The USB-C charger supports USB Power Delivery and provides compatible devices with the power they need. Smartphones, tablets and many laptops can be reliably powered using just one charger. The high output power enables versatile use in everyday life and when on the move.
Modern fast-charging standards for the latest devices: With USB Power Delivery, PPS and AVS, the fast charger supports modern charging profiles for compatible devices. Intelligent power adjustment ensures a power supply tailored to requirements and supports efficient charging for different device categories.
A single charger for smartphones, tablets and laptops: Instead of using multiple chargers, numerous compatible USB-C devices can be powered by a single charger. This saves space on your desk, reduces cable clutter and makes it easier to take with you when travelling.
Integrated safety features for added security: Overvoltage, overcurrent and short-circuit protection ensure safe operation in daily use. The integrated temperature monitoring automatically switches the charger off if necessary and resumes operation once it has cooled down sufficiently.
Compact for everyday use and travel: The slim design takes up little space in a bag, rucksack or on a desk. Despite its compact dimensions, the USB-C fast charger delivers up to 65 W of power and is suitable for many compatible devices with USB-C charging capability.
The InLine USB-C charger with up to 65 W output power combines high charging power, modern fast-charging standards and a compact design in a single device. Thanks to USB Power Delivery, PPS and AVS, the charger supports current charging profiles and is suitable for numerous compatible USB-C devices.
With its high output power, the charger can be used for many smartphones, tablets and laptops. Support for PPS and AVS enables flexible adjustment of charging parameters within supported charging profiles and ensures efficient power delivery to compatible devices.
In everyday use, a single USB-C charger reduces the need for multiple chargers. This makes the product suitable for use at work, at home or on the go. Its compact dimensions make it easy to transport and ensure space-saving use.
Input voltage: 100–240 VAC, 1.5 A
Input AC frequency: 50/60 Hz
Output voltage/output current/output power:
USB-C output (DC): 5.0 V 3.0 A 15.0 W / 9.0 V 3.0 A 27.0 W / 12.0 V 3.0 A 36.0 W / 15.0 V 3.0 A 45.0 W / 20.0 V 3.25 A 65.0 W
PPS USB-C output (DC): 5.0–11.0 V 4.05 A 44.55 W
AVS USB-C output (DC): 9.0–15.0 V 3.0 A 45.0 W / 12.0–20.0 V 3.0 A 60.0 W
Average operating efficiency: 81.25% (230 V, 50 Hz, USB-C: 5 VDC, 2.0 A)
Efficiency at low load (10%): 73.52% (230 V, 50 Hz, USB-C: 5 VDC, 2.0 A)
Power consumption at no load: 0.08 W
Total output power: max. 65.0 W
Overvoltage and overcurrent protection, as well as short-circuit protection
Dimensions: 93 x 47 x 18 mm (LxWxH)

Certificates
Compliance certificates	CE, GS mark, TÜV mark, RoHS
Design
Product colour	Black
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	47 x 92 x 17 mm
Packaging content
Manual
Packaging data
Package width	85 mm
Package depth	150 mm
Package height	32 mm
Package volume	400 cm³
Package weight	100 g
Performance
Charger compatibility	Universal
Power source type	AC
Fast charging technology	Power Delivery, Quick Charge
Charger type	Indoor
Number of simultaneously connected devices (max)	1
USB Power Delivery up to	65 W
Power protection features	Over voltage, Over current, Short circuit, Overheating
Wireless charging
Fast charging
Programmable power supply (PPS)
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	1.5 A
Maximum power	65 W
Maximum output voltage	20 V
Minimum output voltage	5 V
AC adapter power	65 W
AC adapter output current	3.25 A
Port 1 output power	65 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	3.25 A
Port 1 output current	3 A
Average active efficiency	81.25% (230 V, 50 Hz, USB-C: 5 VDC, 2.0 A)
Power plug type	Type C
Efficiency (@10 %)	73.52%
Technical data
Type	USB power adapter
Width packaging	0.085m
Article height	1.70cm
USB-C	1
Article length	9.20cm
Max. power	65.0W
Article width	4.70cm
Height packaging	0.036m
Length packaging	0.150m
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Outputs	1x USB-C
Net weight	0.068kg
Colour	Black
Packaging volume	0.0004m³
Weight	0.100kg
Cable included
GaN
Quick Charge
Display
Power Delivery
Wireless Charging
Weight & dimensions
Width	47 mm
Depth	92 mm
Height	17 mm
Weight	68 g

---
