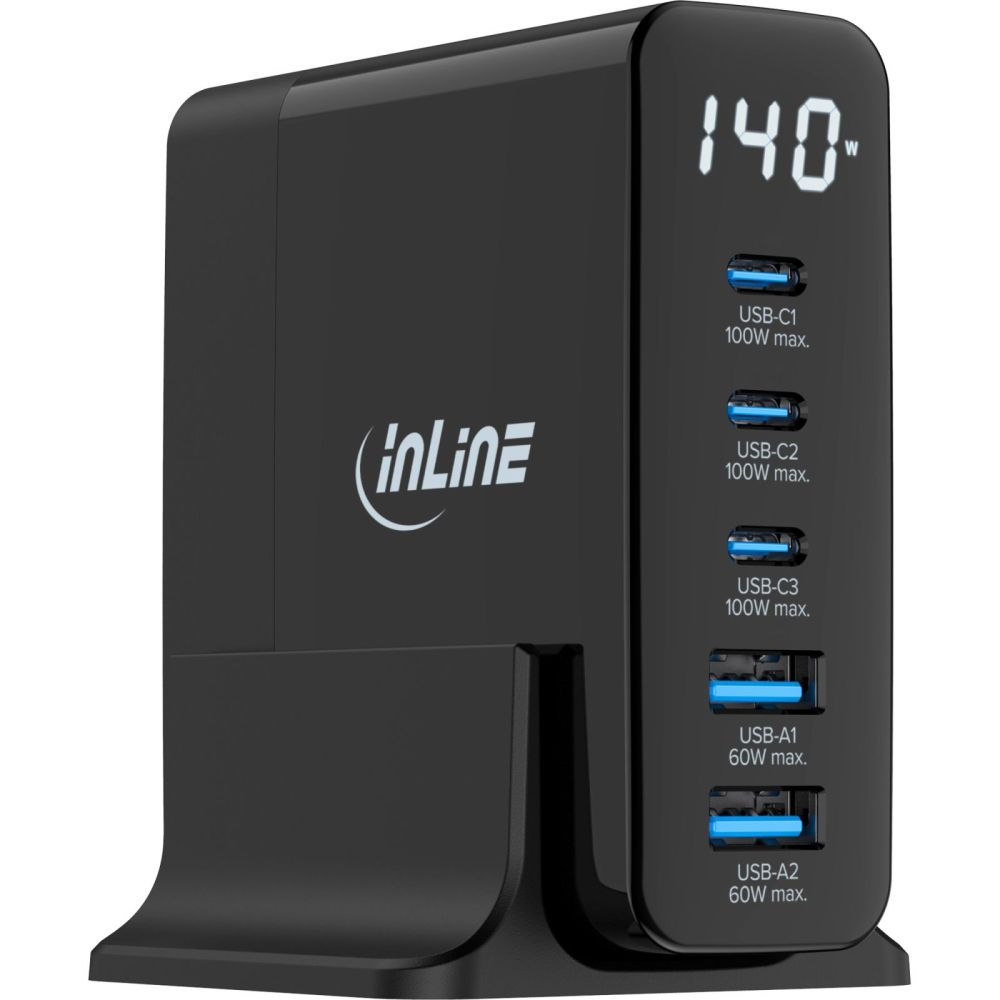

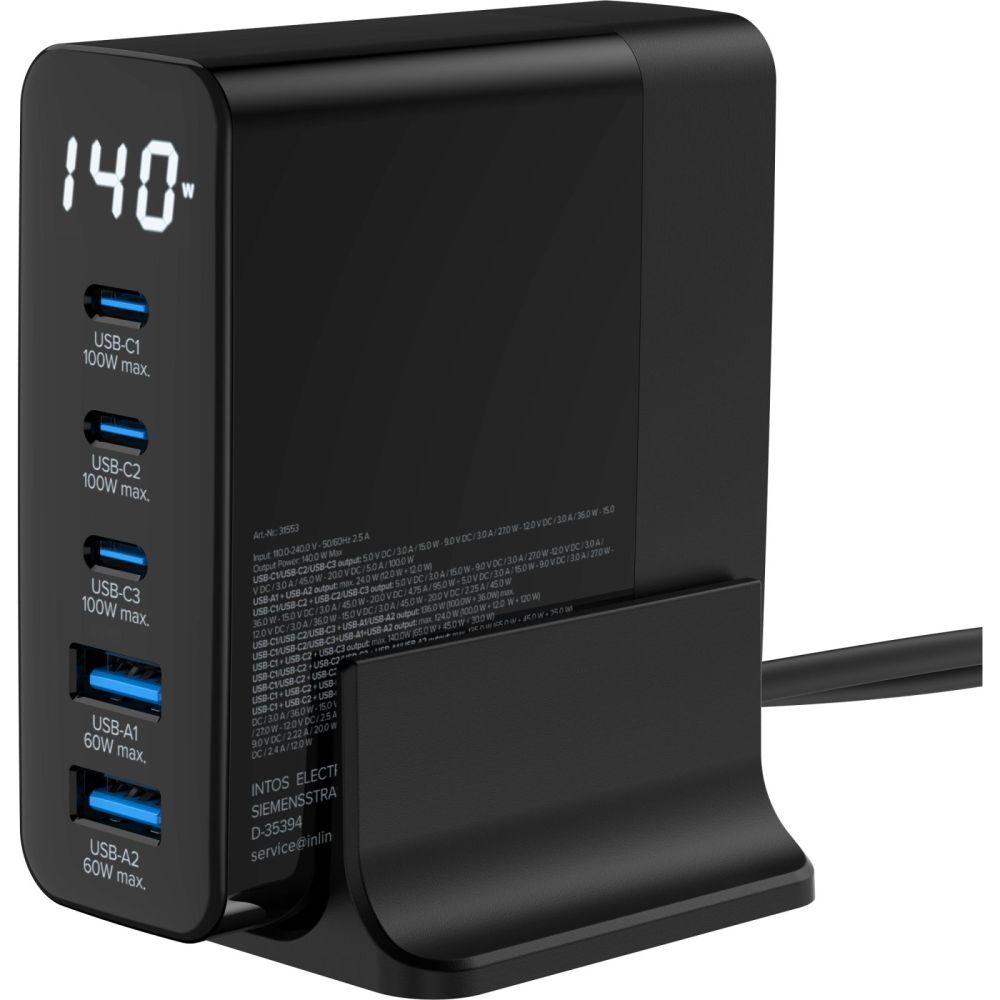

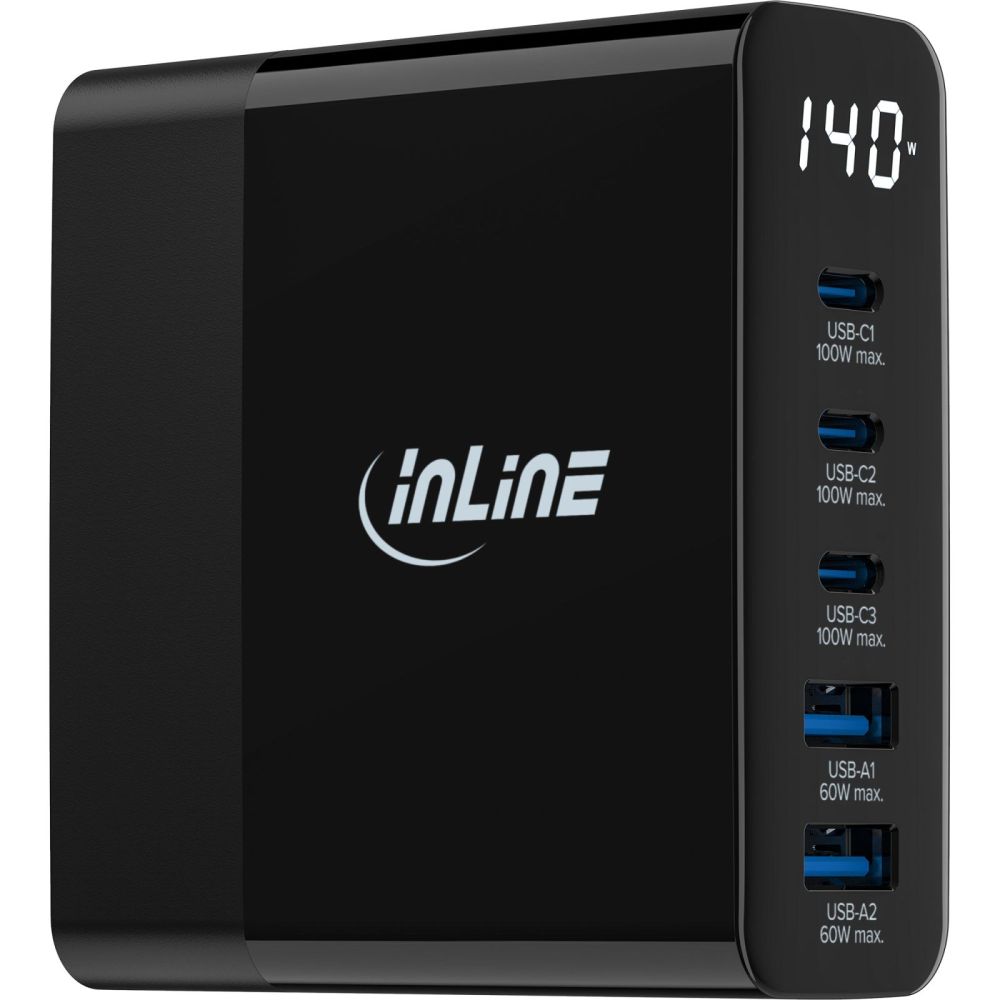

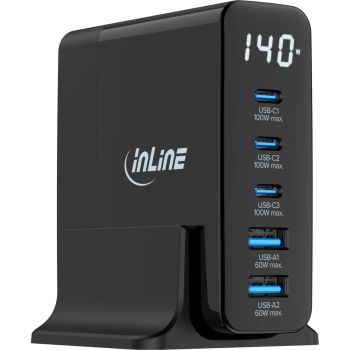

InLine® USB PD power supply, GaN charger, 5-port, USB-C + USB-A, 140W, w/display content_copy

Flexible fast charging with consumption display and 140 WReal-time overview of consumption: Integrated display shows the current power in watts.
Parallel fast charging across five ports: 3x USB-C with Power Delivery 3.0, 2x USB-A with Quick Charge 3.0.
High power for smartphone, tablet and notebook: Up to 140 W for multiple devices simultaneously.
Compact GaN design: High efficiency and low heat generation in a small form factor.
Safe operation: Protection against overvoltage, overheating and short circuit.
The 5-port USB charger with GaN technology combines high charging performance with transparent consumption control. The integrated display shows the current power output in watts so you can compare and optimize charging processes. With up to 140 W, the device supplies three USB-C and two USB-A ports in parallel; modern fast-charging standards accelerate charging with high efficiency. Intelligent detection adapts the power to the device and charge level, protects the battery and delivers reliable power.
This creates a central, space-saving charging station in office and meeting areas that also proves itself when traveling or in service deployments. Thanks to the compact form factor and protection features including automatic temperature shutdown, the charger operates reliably in professional IT environments and within existing infrastructures of companies and public institutions.
Ports: 3x USB-C, 2x USB-A
Standards: USB Power Delivery 3.0 (USB-C), Quick Charge 3.0 (USB-A)
Total output power: max. 140.0 W
Input: 100-240 VAC, 50/60 Hz, 2.50 A
Technology: GaN (gallium nitride)
Display: digital watt display
No-load power consumption: 0.22 W
Protection features: overvoltage, overheating, short circuit; automatic shutdown at overtemperature with recovery after cooling
Power supply dimensions: 80 x 31 x 85 mm (L x W x H)

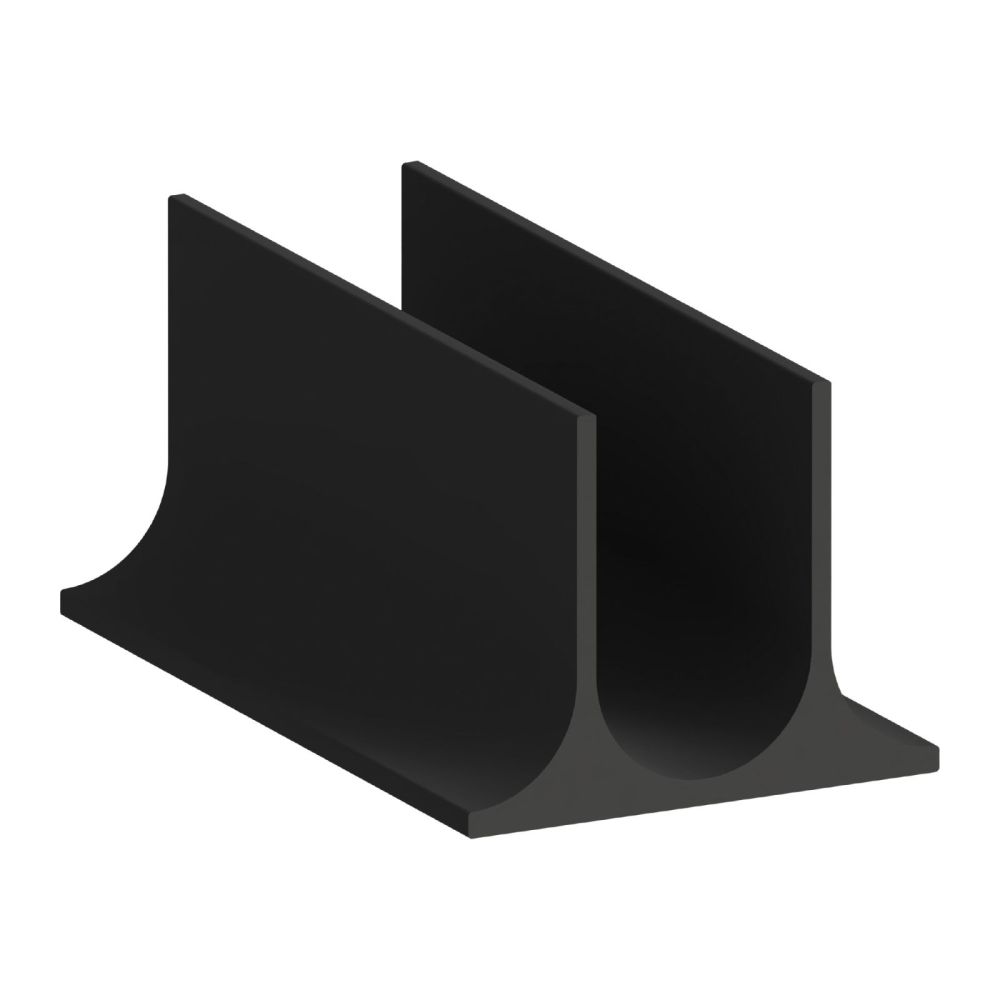

Stand dimensions: 60 x 60 x 32.5 mm (L x W x H)
Weight: approx. 349 g

Certificates
Compliance certificates	CE
Design
Product colour	Black
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	31 x 79 x 86 mm
Packaging data
Package width	146 mm
Package depth	200 mm
Package height	49 mm
Package volume	1400 cm³
Package weight	476 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C ports quantity	3
Fast charging technology	Quick Charge 3.0
Charger type	Indoor
Number of simultaneously connected devices (max)	5
USB Power Delivery revision	3.0
Power protection features	Over voltage, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input current	2.5 A
Maximum power	140 W
Maximum output voltage	20 V
Minimum output voltage	5 V
AC adapter power	100 W
Port 1 output power	100 W
Port 2 output power	100 W
Port 3 output power	100 W
Port 4 output power	100 W
Port 5 output power	100 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	5 A
Port 1 output current	5 A
Port 2 output current	5 A
Port 3 output current	5 A
Port 4 output current	5 A
Port 5 output current	5 A
Power consumption (no load)	0.22 W
Average active efficiency	86,22 % (230 V, 50 Hz, USB-C1 + USB-C2 + USB-C3 + USB-A1 + USB-A2 5.0 V / 2.0 A + 5.0 V / 2.0 A + 5.0 V / 2.0 A + 5.0 V / 2.4 A + 5.0 V / 2.4 A) / 90,04 % (230 V, 50 Hz, USB-C1 + USB-C2 + USB-C3 + USB-A1 + USB-A2 20,0 V / 3.25 A + 20.0 V / 1.5 A + 15.0 V / 1.33 A + 5.0 V / 2.4 A + 5.0 V / 2.4 A)
Efficiency (@10 %)	85.54%
Efficiency at low load (10%)
Technical data
Height packaging	0.049m
Article length	7.90cm
USB-C	3
Article height	8.60cm
Length packaging	0.200m
Colour	Black
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Width packaging	0.146m
USB-A	2
Max. power	140.0W
Article width	3.10cm
Output voltage	5.0 V DC - 20.0 V DC
Type	USB power adapter
Outputs	2x USB-A, 3x USB-C
Packaging volume	0.0014m³
Weight	0.476kg
Net weight	0.289kg
Cable included	EU-Power cable
Wireless Charging
Quick Charge
Power Delivery
GaN
Display
Weight & dimensions
Width	31 mm
Depth	79 mm
Height	86 mm
Weight	289 g

---
