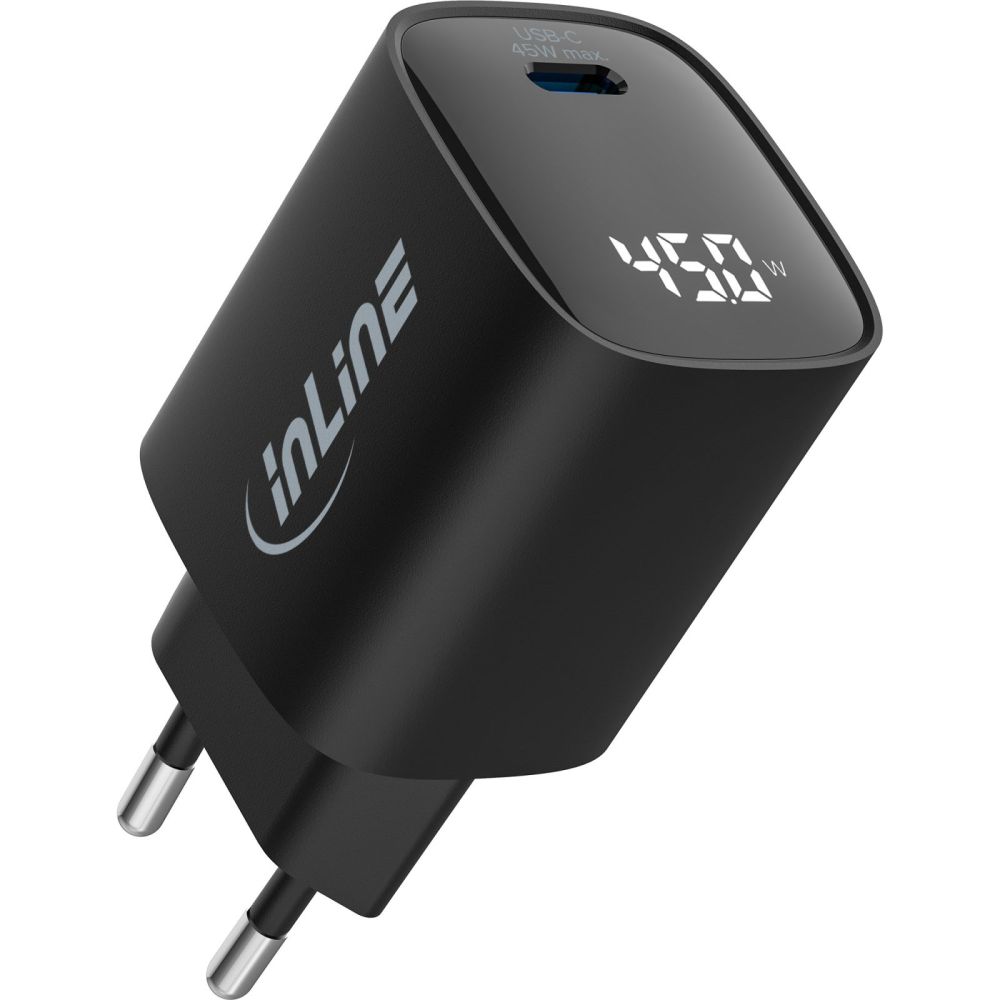

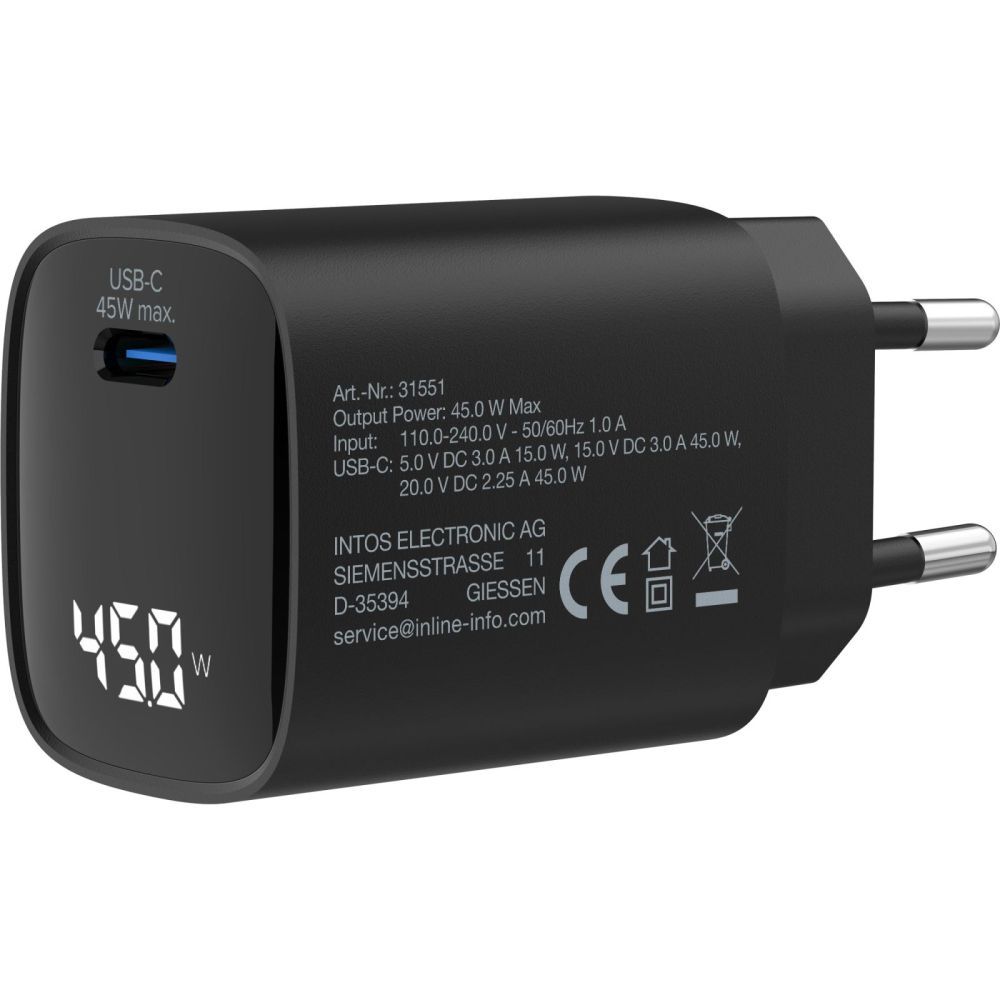

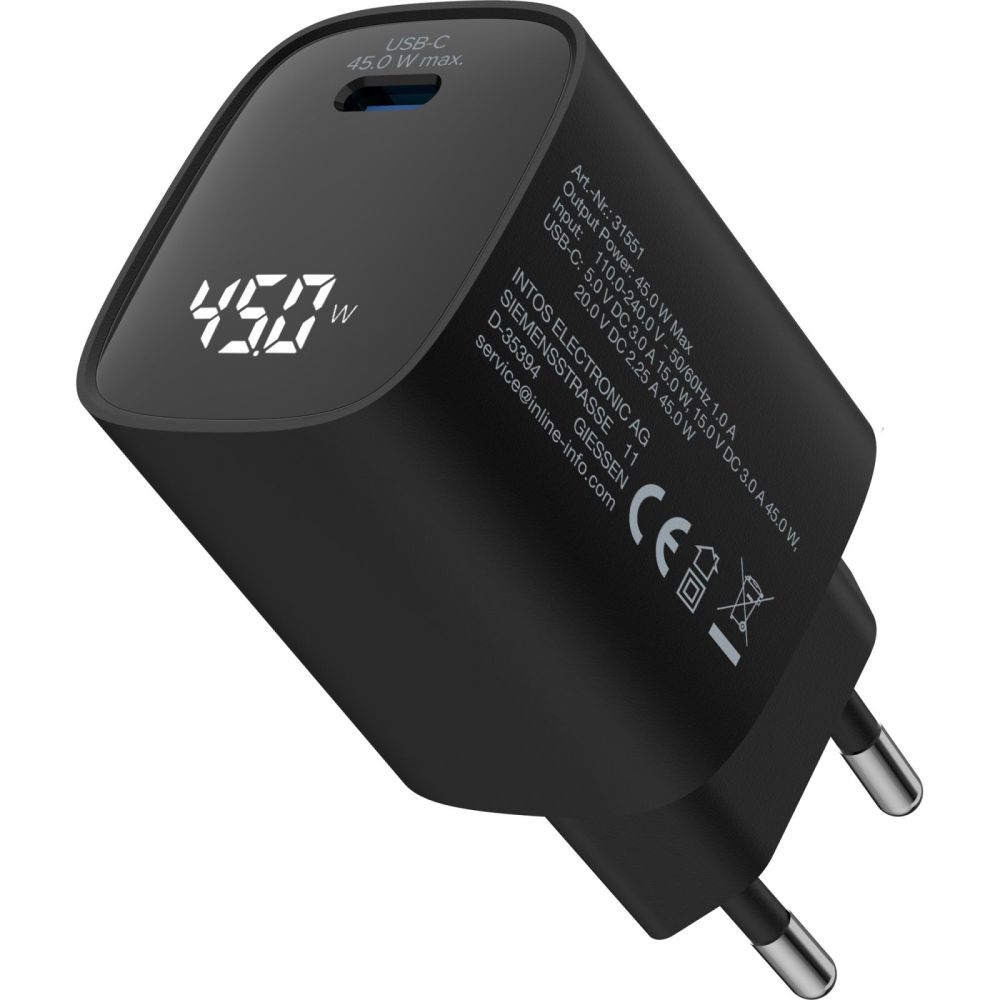

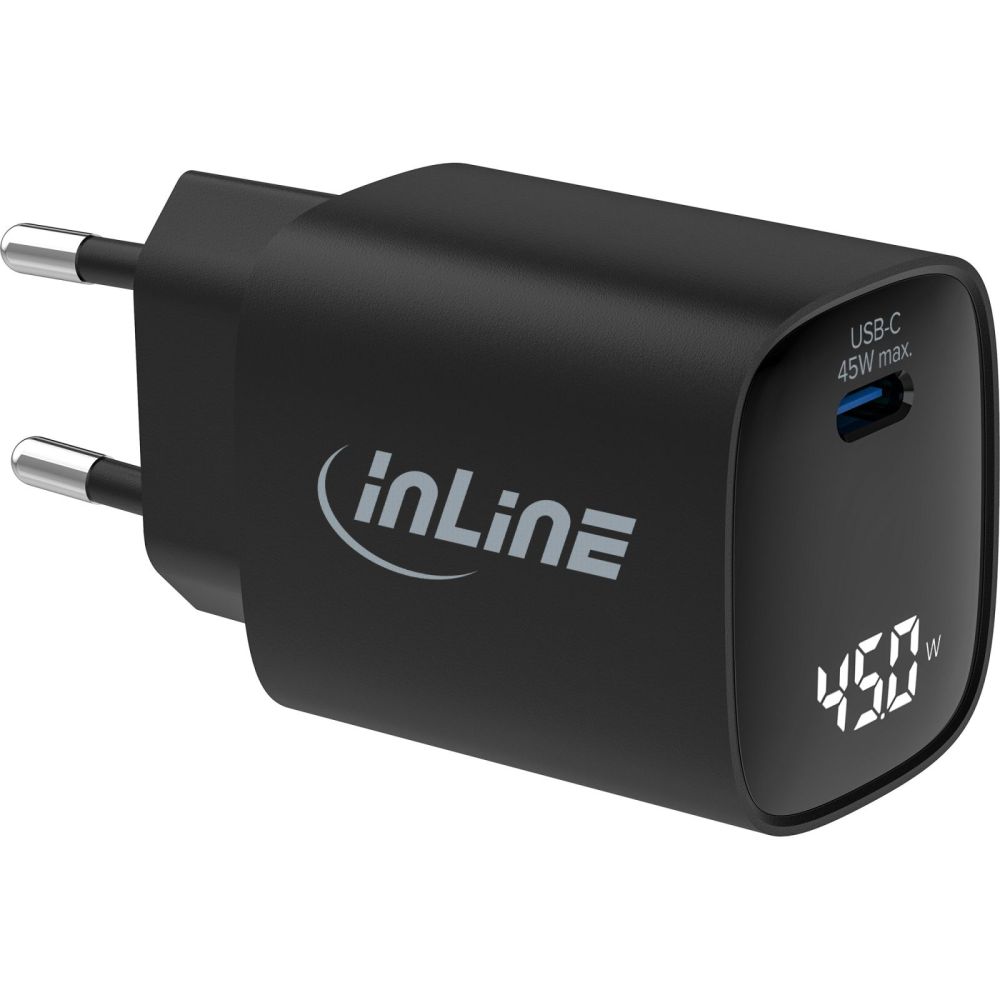

InLine® USB PD power supply, GaN charger, 1-port, USB-C, 45W, with display content_copy

Fast USB-C charging with power readout on the displayCheck energy consumption in real time: Integrated display shows current power in watts for transparent monitoring.
Fast charging with Power Delivery 3.0: Up to 45 W for compatible smartphones and tablets.
Efficient GaN technology: High charging efficiency with compact design and low heat dissipation.
Comprehensive safety: Protection against overvoltage, overheating, and short circuit, automatic restart after cooling.
Compact for travel and workstation: Lightweight design fits easily into power strips.
This 1-port USB-C power supply reliably delivers up to 45 W with Power Delivery 3.0 and makes the current energy consumption visible on a digital display. This allows you to keep an eye on power draw, adjust charging habits, and compare device consumption - for conscious, efficient charging with modern gallium nitride technology.
Whether at the desk, on the go, or during on-site installations: The compact format facilitates mobile use, while the robust design in professional IT environments and in existing infrastructures of companies and public institutions enables a reliable power supply.
Connector: 1x USB-C
Output power: max. 45 W
Fast-charging standard: Power Delivery 3.0
Technology: gallium nitride (GaN)
Display: Digital display for power values in watts
Input: 100-240 V AC, 50/60 Hz, 1.0 A
Output profiles: 5.0 V/3.0 A (15.0 W), 9.0 V/3.0 A (27.0 W), 12.0 V/3.0 A (36.0 W), 15.0 V/3.0 A (45.0 W), 20.0 V/2.25 A (45.0 W)
Average efficiency (230 V, 50 Hz, 5.0 V/3.0 A): 83.87 %
Average efficiency (230 V, 50 Hz, 20.0 V/2.25 A): 88.70 %
Efficiency at low load (10 %, 230 V, 50 Hz, 5.0 V/3.0 A): 78.01 %
Efficiency at low load (10 %, 230 V, 50 Hz, 20.0 V/2.25 A): 80.91 %
Power consumption at no load: 0.09 W
Protective functions: overvoltage, short circuit, thermal shutdown with automatic continuation after cooling
Dimensions: 81.8 x 39 x 33.5 mm (L x W x H)
Weight: approx. 96 g

Certificates
Compliance certificates	CE
Design
Product colour	Black
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	40 x 82 x 35 mm
Packaging data
Package width	61 mm
Package depth	125 mm
Package height	41 mm
Package volume	300 cm³
Package weight	100 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB Type-C ports quantity	1
Charger type	Indoor
Number of simultaneously connected devices (max)	1
USB Power Delivery revision	3.0
Power protection features	Over voltage, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	1 A
Maximum power	45 W
Maximum output voltage	20 V
Minimum output voltage	5 V
Port 1 output power	45 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	2.25 A
Power consumption (no load)	0.09 W
Average active efficiency	83.87% (230V, 50Hz, 5.0V/3.0A) / 88.70% (230V, 50Hz, 20.0V/2.25A)
Power plug type	Type C
Efficiency (@10 %)	80.91%
Efficiency at low load (10%)
Technical data
Width packaging	0.061m
Colour	Black
Outputs	1x USB-C
Length packaging	0.125m
Output voltage	5.0 V DC - 20.0 V DC
Weight	0.100kg
Packaging volume	0.0003m³
Type	USB power adapter
Max. power	45.0W
Article width	4.00cm
Article length	8.20cm
USB-C	1
Net weight	0.093kg
Article height	3.50cm
Height packaging	0.041m
Display
Quick Charge
Power Delivery
GaN
Wireless Charging
Cable included
Weight & dimensions
Width	40 mm
Depth	82 mm
Height	35 mm
Weight	93 g

---
