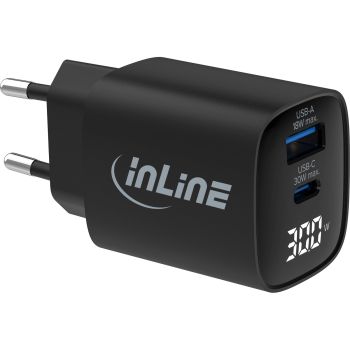

INLINE USB PD power supply GaN charger 2-port USB-C + USB-A with display 30W black content_copy

SMART POWER DISPLAY: The built-in digital display shows you the current power consumption in watts at all times. At the same time, you can see at a glance whether the device is fully charged – without having to unlock your smartphone screen, for example.
FAST AND EFFICIENT CHARGING THANKS TO HIGHLY EFFICIENT GAN TECHNOLOGY: Up to 1,000 times more efficient than conventional chargers, with lower heat generation and less energy loss.
DOUBLE POWER UP TO 30W: With one USB-C and one USB-A port, you can charge your smartphone and earphones at the same time using a single charger, or use the full 30W for a single device!
POWER DELIVERY 3.0 AND QUICKCHARGE 3.0: Charge your devices in a flash in the shortest possible time. Versatile output options from 5-12V ensure maximum compatibility for different charging situations.
HIGH SAFETY: With built-in protection against overvoltage, overheating and short circuits, our charger ensures safe charging for your devices.
Since 1991, InLine has been connecting industry and end users with high-quality IT accessories manufactured and tested according to German quality standards. This USB charger from InLine combines state-of-the-art charging technology with a smart consumption display. Gain valuable insights into energy consumption while the charger reliably, quickly and safely supplies your smartphone and other devices with power. The built-in digital display allows you to keep an eye on the current energy consumption in watts and compare different devices with each other. By displaying energy consumption, you can monitor the efficiency of your devices, adjust charging habits and learn to use energy more consciously. The USB charger is equipped with state-of-the-art, environmentally friendly technology to ensure fast and efficient charging performance. With a high output power of 30 watts, you can charge multiple devices simultaneously without compromising charging speed. It also supports Power Delivery 3.0 on the USB-C port and Quick Charge 3.0 on the USB-A port. Intelligent charging detection adjusts the charging speed to the device and the state of charge.

Certificates
Compliance certificates	CE
Design
Product colour	Black
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	40 x 82 x 34 mm
Packaging data
Package width	60 mm
Package depth	125 mm
Package height	40 mm
Package volume	300 cm³
Package weight	81 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	1
Fast charging technology	Quick Charge 3.0
Charger type	Indoor
Number of simultaneously connected devices (max)	2
USB Power Delivery revision	3.0
Power protection features	Over voltage, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.85 A
Maximum power	30 W
Maximum output voltage	12 V
Minimum output voltage	5 V
Port 1 output power	30 W
Port 2 output power	18 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	2.5 A
Port 1 output current	3 A
Power consumption (no load)	0.09 W
Average active efficiency	83.78% (230V, 50Hz, USB-A 5.0V/3.0A) / 87.77% (230V, 50Hz, USB-A 12.0V/1.5A) / 84.33% (230V, 50Hz, USB-C 5.0V/3.0A) / 88.73% (230V, 50Hz, USB-C 12.0V/2.5A) / 85.56% (230V, 50Hz, USB-A 5.0V/1.7A + USB-C 5.0V/1.7A)
Power plug type	Type C
Efficiency (@10 %)	82.21%
Efficiency at low load (10%)
Technical data
Output voltage	5.0 V DC - 12.0 V DC
Weight	0.081kg
Outputs	1x USB-A, 1x USB-C
Width packaging	0.060m
Colour	Black
Packaging volume	0.0003m³
Height packaging	0.040m
Type	USB power adapter
Length packaging	0.125m
USB-A	1
Article height	3.40cm
Max. power	30.0W
Article width	4.00cm
USB-C	1
Net weight	0.061kg
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Article length	8.20cm
Display
Wireless Charging
Power Delivery
GaN
Quick Charge
Cable included
Weight & dimensions
Width	40 mm
Depth	82 mm
Height	34 mm
Weight	61 g

---
