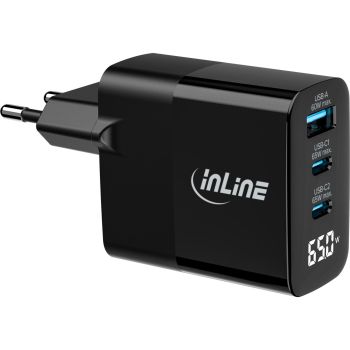

INLINE USB PD power supply GaN charger 3-port USB-C + USB-A with display 65W black content_copy

Fast multi-device charging with real-time power consumption displayReal-time power consumption monitoring: Integrated display shows the current power draw in W for comparison and monitoring.
Flexible fast charging on 3 ports: 2x USB-C with Power Delivery 3.0 and 1x USB-A with Quick Charge 3.0.
65 W total power in a compact form factor: GaN technology for high efficiency and low heat generation.
Intelligent power management: Adjusts the charging power to the device and charge level and protects the battery.
More safety in operation: Overvoltage, overheating, and short-circuit protection with automatic resumption after cooling.
This high-performance GaN power supply reliably powers multiple devices simultaneously. The display provides transparent insights into the current power consumption for each charging process, so you can track charging behavior and compare devices efficiently. Charge compatible devices quickly and safely via two USB-C ports with Power Delivery 3.0 and one USB-A port with Quick Charge 3.0.
In the office, on the go, and in professional IT environments, the consumption display helps make charge levels visible, check test devices, and identify energy potential. The compact form factor fits power strips and integrates smoothly into existing infrastructures of companies and public institutions - also ideal for service deployments.
Ports: 2x USB-C, 1x USB-A
Total output power: max. 65.0 W
Technology: GaN
Display: digital display for current power consumption (W)
Standard (USB-C): Power Delivery 3.0
Standard (USB-A): Quick Charge 3.0
Input: 100-240 V AC, 1.50 A, 50/60 Hz
Protection features: overvoltage, overheating, short-circuit; automatic shutdown at excessive temperature and automatic resumption after cooling
Power consumption at no load: 0.28 W
Dimensions: 94.4 x 52 x 35.3 mm (L x W x H)
Weight: approx. 117 g

Certificates
Compliance certificates	CE
Design
Product colour	Black
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	53 x 95 x 30 mm
Packaging data
Package width	61 mm
Package depth	125 mm
Package height	40 mm
Package volume	300 cm³
Package weight	148 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C ports quantity	1
Fast charging technology	Quick Charge 3.0
Charger type	Indoor
Number of simultaneously connected devices (max)	3
USB Power Delivery revision	3.0
Power protection features	Over voltage, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	1.5 A
Maximum power	65 W
Maximum output voltage	20 V
Minimum output voltage	3.4 V
AC adapter output current	5 A
Port 1 output power	65 W
Port 2 output power	65 W
Port 3 output power	60 W
Port 1 output current	3 A
Port 2 output current	3 A
Port 3 output current	5 A
Power consumption (no load)	0.28 W
Average active efficiency	89.98% (230V, 50 Hz, USB-C1+USB-C2 20.0V/2.25A + 12.0V/1.66A) / 90.02% (230V, 50 Hz, USB-C1+USB-C2+USB-A 20.0V/2.25A + 5.0V/1.5A + 5.0V/1.5A) / 84.31% (230V, 50 Hz, USB-C1+USB-C2+USB-A 5.0V/3.0A + 5.0V/1.5A + 5.0V/1.5A)
Power plug type	Type C
Efficiency (@10 %)	85.25%
Efficiency at low load (10%)
Technical data
Output voltage	5.0 V DC - 20.0 V DC
Net weight	0.118kg
Article width	5.30cm
Article height	3.00cm
Height packaging	0.040m
Article length	9.50cm
USB-A	1
Max. power	65.0W
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Width packaging	0.061m
Colour	Black
USB-C	2
Length packaging	0.125m
Type	USB power adapter
Packaging volume	0.0003m³
Outputs	1x USB-A, 2x USB-C
Weight	0.148kg
Cable included
Wireless Charging
Power Delivery
GaN
Quick Charge
Display
Weight & dimensions
Width	53 mm
Depth	95 mm
Height	30 mm
Weight	118 g

---
