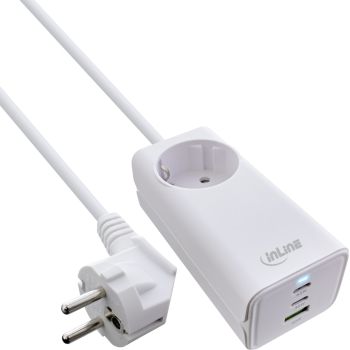

InLine® USB power supply, GaN charger, 2x USB-C, 1x USB-A, PD 3.0, safety socket content_copy

FAST AND EFFICIENT CHARGING THANKS TO HIGHLY EFFICIENT GAN TECHNOLOGY: Up to 1,000 times more efficient than conventional chargers, lower heat generation and less energy loss.
FOUR-FOLD POWER UP TO 65W: With two USB-C ports, one USB-A port and the protective contact socket, you can charge your smartphone or notebook and other devices simultaneously using a single charger, or use the full 65W for a single device!
POWER DELIVERY 3.0 (PD) and QUICKCHARGE 4+: Charge your devices in no time at all. Versatile output options from 5-20V ensure maximum compatibility for different charging situations. 1.5M CONNECTION CABLE: The connection cable allows you to position the charger flexibly and makes it easier to use.
HIGH SAFETY: With built-in protection against overcharging, overvoltage, overcurrent and short circuits, our charger ensures safe charging for your devices.
Since 1991, InLine has been connecting industry and end users with high-quality IT accessories manufactured and tested according to German quality standards. Experience the powerful and compact 65W GaN charger with 2x USB-C ports, 1x USB-A port, 1x safety socket and 1.5m connection cable – the perfect solution for fast and efficient charging of multiple devices at the same time! Thanks to GaN (gallium nitride) technology, this power supply is highly efficient and enables better performance with a smaller design. Electrons are conducted up to 1,000 times more efficiently than with conventional silicon semiconductors, resulting in less heat generation and less energy loss. The 65W GaN charger also supports Power Delivery 3.0 on the USB-C ports and Quickcharge 4+ on the USB-A port, offering various output options.

Certificates
Compliance certificates	cTUVus
Design
Product colour	White
Cable length	1.5 m
LED indicators
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	48 x 108 x 40 mm
Packaging content
Retractable cable
Packaging data
Package width	110 mm
Package depth	210 mm
Package height	60 mm
Package volume	1400 cm³
Package weight	525 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 2.0 ports quantity	1
USB Type-C ports quantity	2
Fast charging technology	Power Delivery 3.0, Quick Charge 2.0, Quick Charge 3.0, Quick Charge 4, Quick Charge 4+
Sockets quantity	1
Socket type	Type F
Charger type	Indoor
Number of simultaneously connected devices (max)	3
USB Power Delivery revision	3.0
Power protection features	Over voltage, Overheating, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	230 V
Input frequency	50/60 Hz
Input current	16 A
Maximum power	3680 W
Maximum output voltage	20 V
Minimum output voltage	3.3 V
Port 1 output power	65 W
Port 2 output power	30 W
Port 3 output power	30 W
Output current (5V)	4.5 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	3.25 A
Port 1 output current	5 A
Port 2 output current	3 A
Port 3 output current	4.5 A
Power consumption (no load)	0.18 W
Power plug type	Type F
Sustainability
Sustainability compliance
Technical data
Outputs	1x USB-A, 2x USB-C, 1x protective contact
Article length	10.80cm
Output voltage	3.3 V DC - 20.0 V DC
Packaging volume	0.0014m³
Width packaging	0.110m
Article height	4.00cm
Max. power	65.0W
Net weight	0.421kg
Type	USB power adapter
USB-A	1
Colour	White
Height packaging	0.060m
Weight	0.525kg
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
USB-C	2
Length packaging	0.210m
Article width	4.80cm
Power Delivery
GaN
Quick Charge
Wireless Charging
Cable included
Display
Weight & dimensions
Width	48 mm
Depth	108 mm
Height	40 mm
Weight	421 g

---
