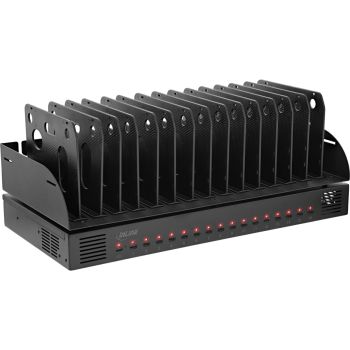

InLine® Multiport Power Supply, 1000W Charger, 16x USB-C, PD 3.0, QC 5.0, black content_copy

USB-C charging station with 16 ports, high charging power and flexible device placementCharge 16 devices centrally: 16 USB-C ports power compatible laptops, tablets, smartphones and other devices from a single charging point. When fully utilised, up to 65 W is available per port.
Up to 100 W per port: When a maximum of 10 devices are being charged simultaneously, up to 100 W per USB-C port is possible. This means that even compatible devices with higher power requirements can be charged.
Flexible device storage: Dividers in two sizes help to clearly separate different device formats directly on the power station and keep them organised whilst charging.
Designed for rack environments: The supplied mounting brackets allow the unit to be secured in a suitable rack environment and facilitate integration into existing equipment and IT infrastructures.
Protection under high load: Overvoltage, short-circuit and overtemperature protection support the charging process. When the internal device temperature reaches 70 °C or above, two fans are activated for active cooling.
With the InLine Multiport Powerstation, you can charge up to 16 compatible USB-C devices centrally at a single charging point. This solution combines numerous individual charging points and is ideal wherever laptops, tablets, smartphones and other USB-C devices are regularly charged.
The maximum total power output is 1000 W. USB Power Delivery 3.0 and Quick Charge 5.0 support compatible devices with different charging profiles. When all 16 ports are in use, up to 65 W is available per port. If a maximum of 10 devices are being charged simultaneously, up to 100 W per USB-C port is possible.
Technical specifications
Product type: USB-C Multi-port Power Station / Fast Charger
Number of charging ports: 16x USB-C
Maximum total output power: 1000 W
Charging standards: USB Power Delivery 3.0, Quick Charge 5.0
Input voltage: 100–240 V AC
Maximum input current: 12 A
Input frequency: 50/60 Hz
USB-C output: 5 V DC / 3 A / 15 W
USB-C output: 9 V DC / 3 A / 27 W
USB-C output: 12 V DC / 3 A / 36 W
USB-C output: 15 V DC / 3 A / 45 W
USB-C output: 20 V DC / 5 A / 100 W
Output power when using all 16 USB-C ports: up to 65 W per port
Output power with a maximum of 10 devices charging simultaneously: up to 100 W per port
Protection functions: Overvoltage, short-circuit and overtemperature protection
Active cooling: 2 fans activate at 70 °C internal unit temperature
Fan dimensions: 40 x 20 mm
Fan speed: 3600–5400 rpm.
Noise level: approx. 25–60 dB
Dimensions (L x W x H): approx. 442 x 213 x 66 mm
Colour: Black
Contents
1x InLine 1000 W Multiport Powerstation
15x 123 mm partition
15x 82 mm partition
2x mounting brackets for rack installation
1x mains cable, approx. 1.5 m
1x User manual (German/English)

Technical data
Output voltage	5.0 V DC - 20.0 V DC
Article length	44.00cm
Height packaging	0.170m
Article height	12.00cm
USB-C	16
Cable included	EU-Power cable
Type	USB power adapter
Max. power	1000.0W
Width packaging	0.275m
Outputs	16x USB-C
Colour	Black
Article width	21.50cm
