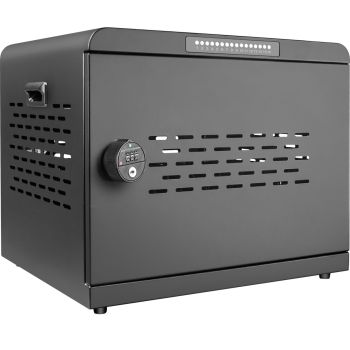

InLine® Charging Cabinet, 16x USB-C, 1000W, PD3, QC5, lockable, black content_copy

USB-C charging station for up to 16 devices with high charging power and flexible front doorsCentralised charging for 16 devices: The USB-C charging station combines charging and storage in one place. When fully occupied, up to 65 W per port is available for compatible devices.
Up to 100 W per port: When a maximum of 10 devices are being charged simultaneously, up to 100 W per USB-C port is possible. This is also suitable for compatible laptops with higher power requirements.
Two front doors included: A steel door without a window is already fitted. In addition, a door with a glass window is included and can be swapped for the fitted front door if required.
Secure and flexible organisation: The combination lock protects the contents from unauthorised access. Dividers and cable clips help to organise various devices and charging cables clearly.
Protection under heavy load: Overvoltage, short-circuit and overtemperature protection support the charging process. Two temperature-controlled fans help dissipate heat when the internal temperature rises.
With the InLine charging cabinet, you can charge and store up to 16 compatible USB-C devices in one central location. This solution is ideal wherever several mobile devices are regularly used, collected and then recharged. It helps you keep charging points, devices and cables neatly organised in one place.
The charging cabinet is supplied with two front doors. A steel door without a window is already fitted. A door with a glass panel is also included. If required, this can be swapped for the fitted front door. This allows you to choose between a closed front and a version that provides a view into the interior.
Technical Specifications
Product type: USB-C charging cabinet
Number of charging ports: 16x USB-C
Maximum total output power: 1000 W
Charging standards: USB Power Delivery 3.0, Quick Charge 5.0
Input voltage: 100–240 V AC
Maximum input current: 12 A
Input frequency: 50/60 Hz
USB-C output: 5 V DC / 3 A / 15 W
USB-C output: 9 V DC / 3 A / 27 W
USB-C output: 12 V DC / 3 A / 36 W
USB-C output: 15 V DC / 3 A / 45 W
USB-C output: 20 V DC / 5 A / 100 W
Output power when using all 16 USB-C ports: up to 65 W per port
Output power with a maximum of 10 devices charging simultaneously: up to 100 W per port
Protection functions: Overvoltage, short-circuit and overtemperature protection
Fans: 2 x 40 x 20 mm
Fan speed: 3600–5400 rpm
Noise level: approx. 25–60 dB
Dimensions (L x W x H): approx. 498 x 405 x 422 mm
Weight: approx. 17 kg
Lock: Combination lock with customisable code
Colour: Black
Contents
1x InLine charging cabinet with pre-fitted steel door without window
1x door with glass window to replace the pre-fitted steel door1x InLine 1000 W Multiport Power Station, pre-fitted
1x LED strip, pre-fitted
17x 123 mm divider
17x 82 mm divider
34x cable clips
1x mains cable, approx. 1.5 m
1x key
1x tool for changing the combination on the door lock
1x user manual in German/English

Technical data
Weight	24.000kg
Article length	48.00cm
Net weight	16.220kg
Output voltage	5.0 V DC - 20.0 V DC
Width packaging	0.550m
Article height	41.00cm
Cable included	EU-Power cable
Max. power	1000W
Packaging volume	0.1610m³
USB-C	16
Height packaging	0.500m
Type	Mobile charging cabinet
Article width	53.00cm
Length packaging	0.585m
Colour	Black
Outputs	16x USB-C
Display
Wireless Charging
Power Delivery
Quick Charge
GaN

---
