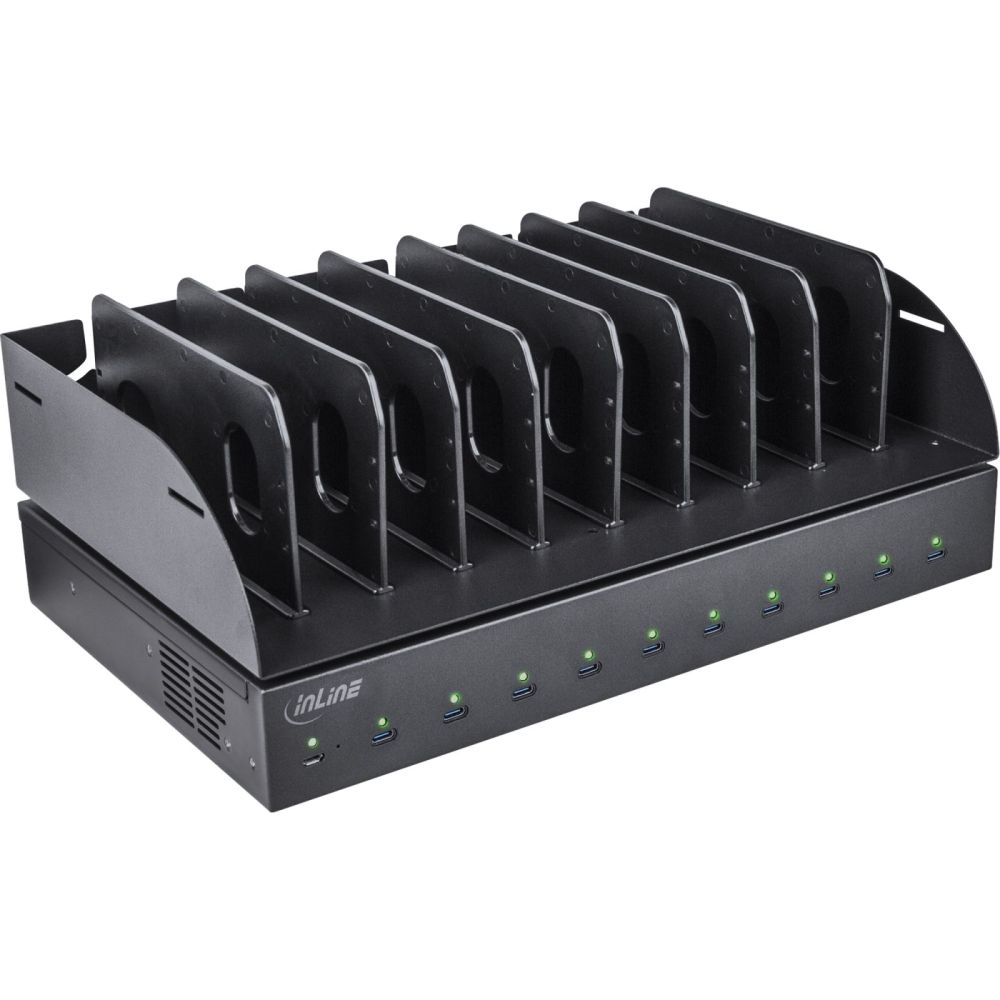

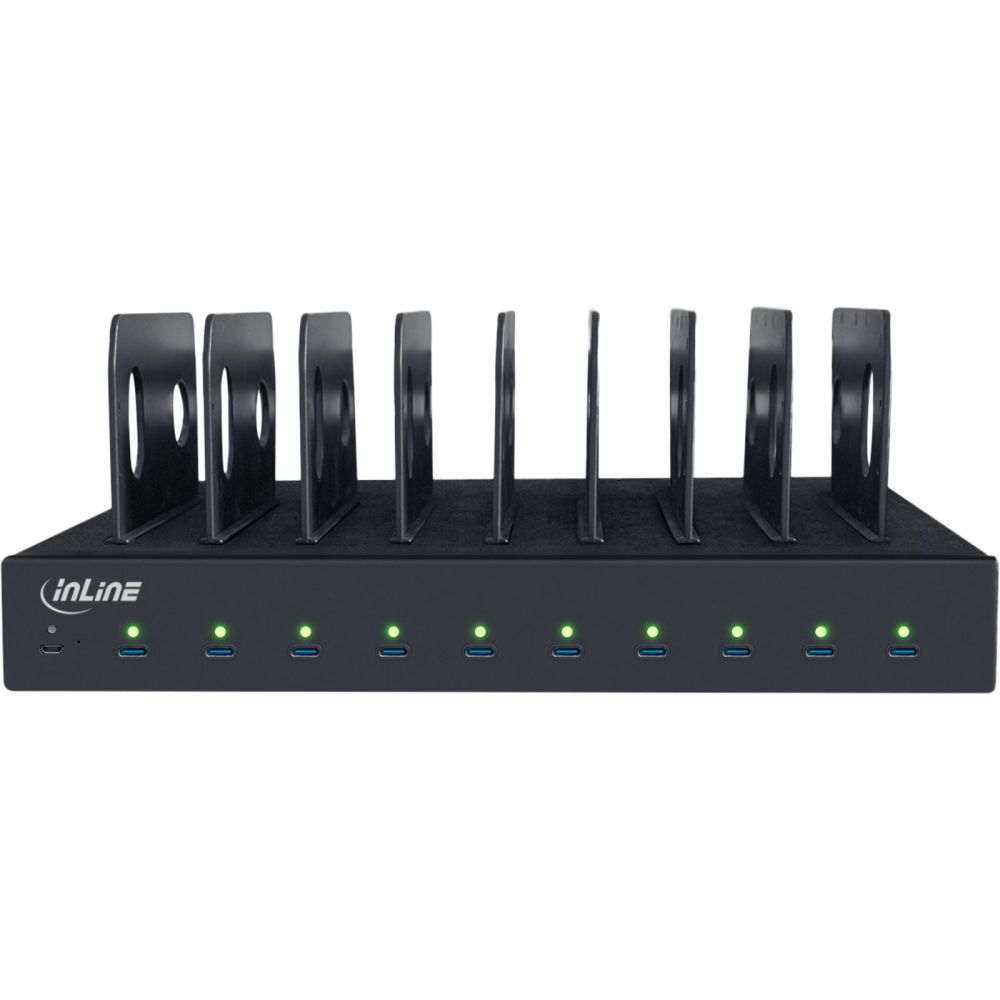

InLine® Multiport Power Supply, 1000W Charger, 10x USB-C, PD 3.0, QC 5.0, black content_copy

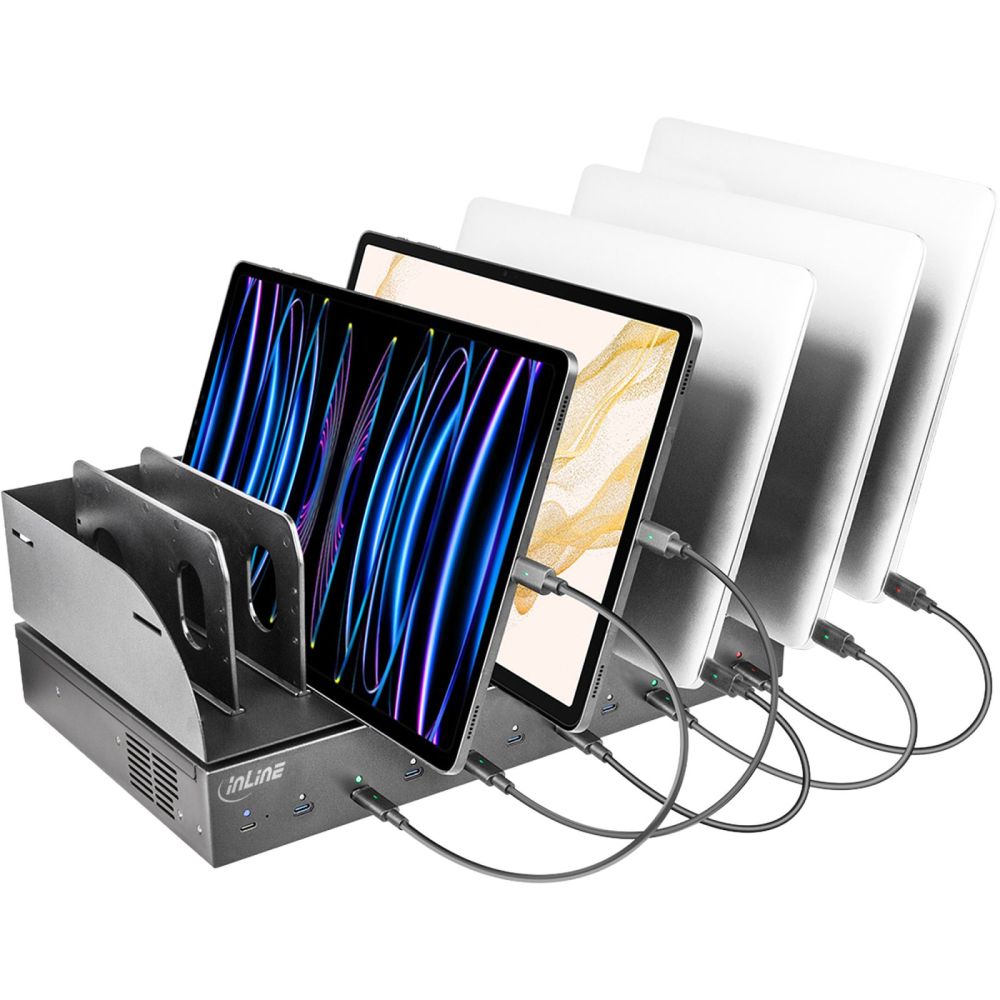

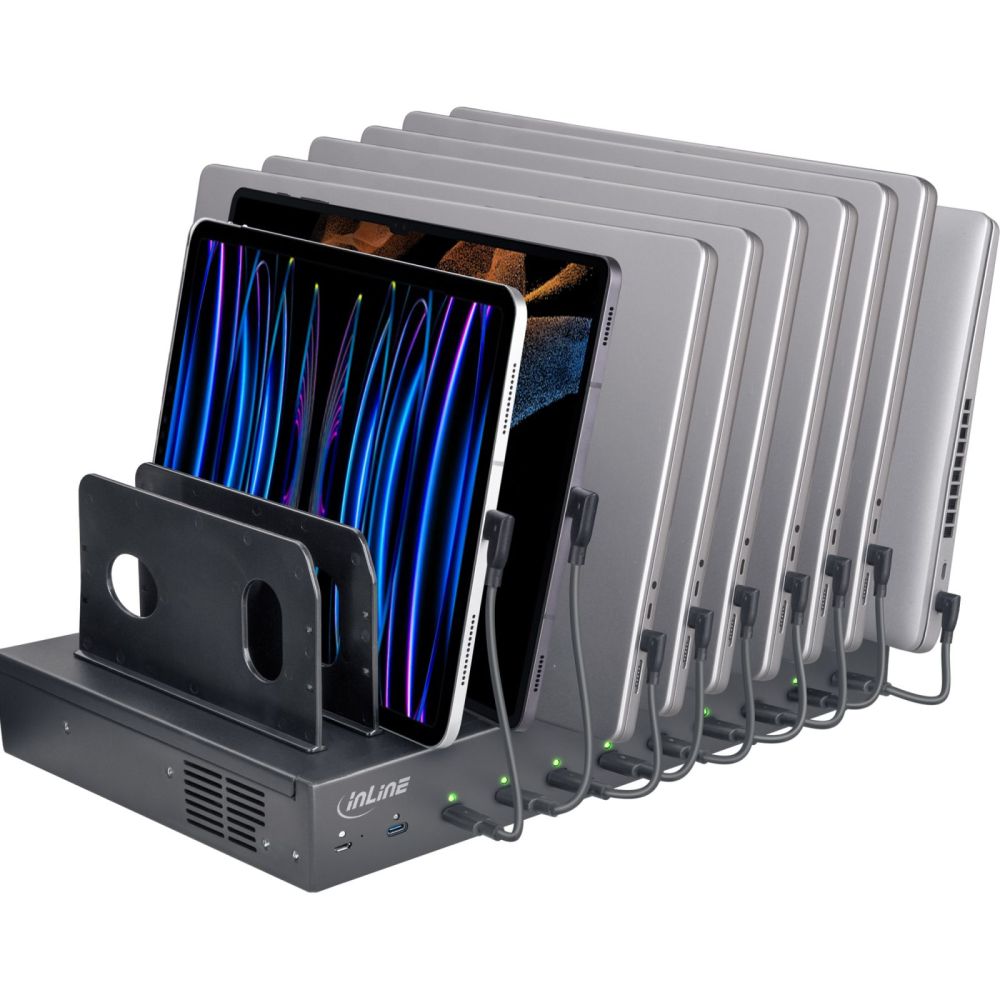

Simultaneous charging of up to ten devices: Enables the parallel charging of up to ten USB-C devices with support for Power Delivery 3.0 and Quick Charge 5.0.
Powerful charging distribution with up to 1,000 watts of total power: Up to 100 watts per port is reliably delivered, even when all ports are in use simultaneously.

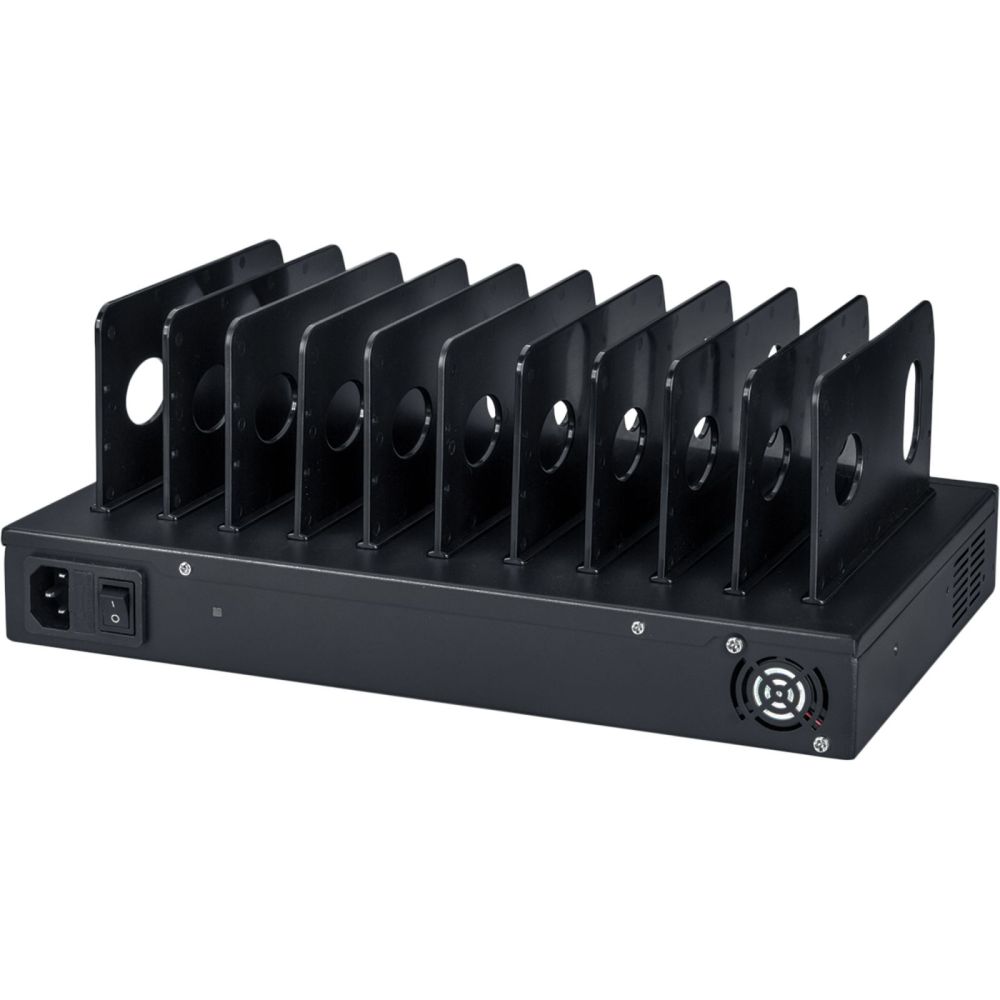

Professional equipment organisation with modular separation: Separators in two sizes, included in the scope of delivery, ensure tidy storage and a clear structure in the workplace.
Versatile use thanks to rack-mounting option and robust design: The supplied mounting brackets enable a fixed installation, ideal for technical rooms and server environments.
Comprehensive compatibility for professional IT infrastructures: Supports modern fast-charging standards and is suitable for laptops, tablets, smartphones and other mobile devices.
The InLine® multi-port power supply with a total output of 1,000 watts is the ideal solution for professional IT environments where a large number of mobile devices need to be charged simultaneously. Whether in technical rooms, training centres, service centres or modern offices – the compact power supply reliably delivers power via ten USB-C ports to laptops, tablets, smartphones and other USB-C-compatible devices. Up to 100 watts per port is available, with no loss of performance even at full capacity.

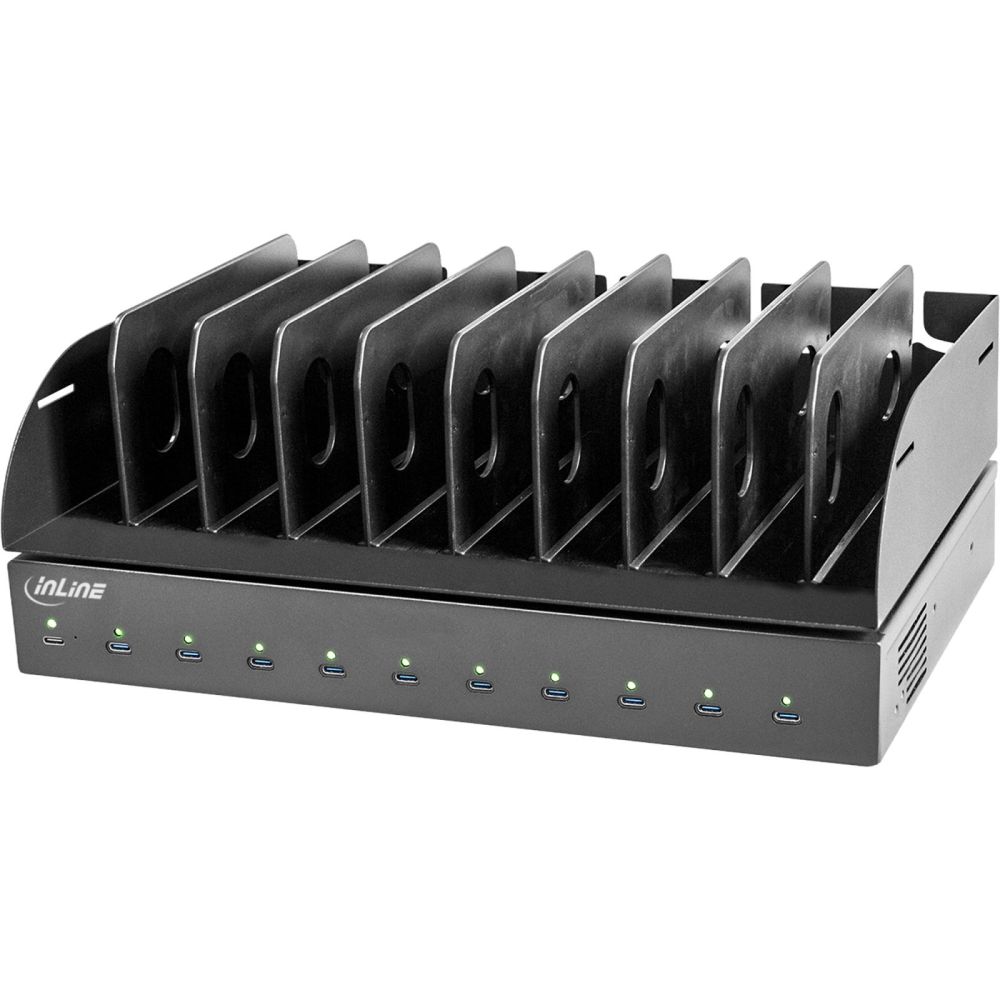

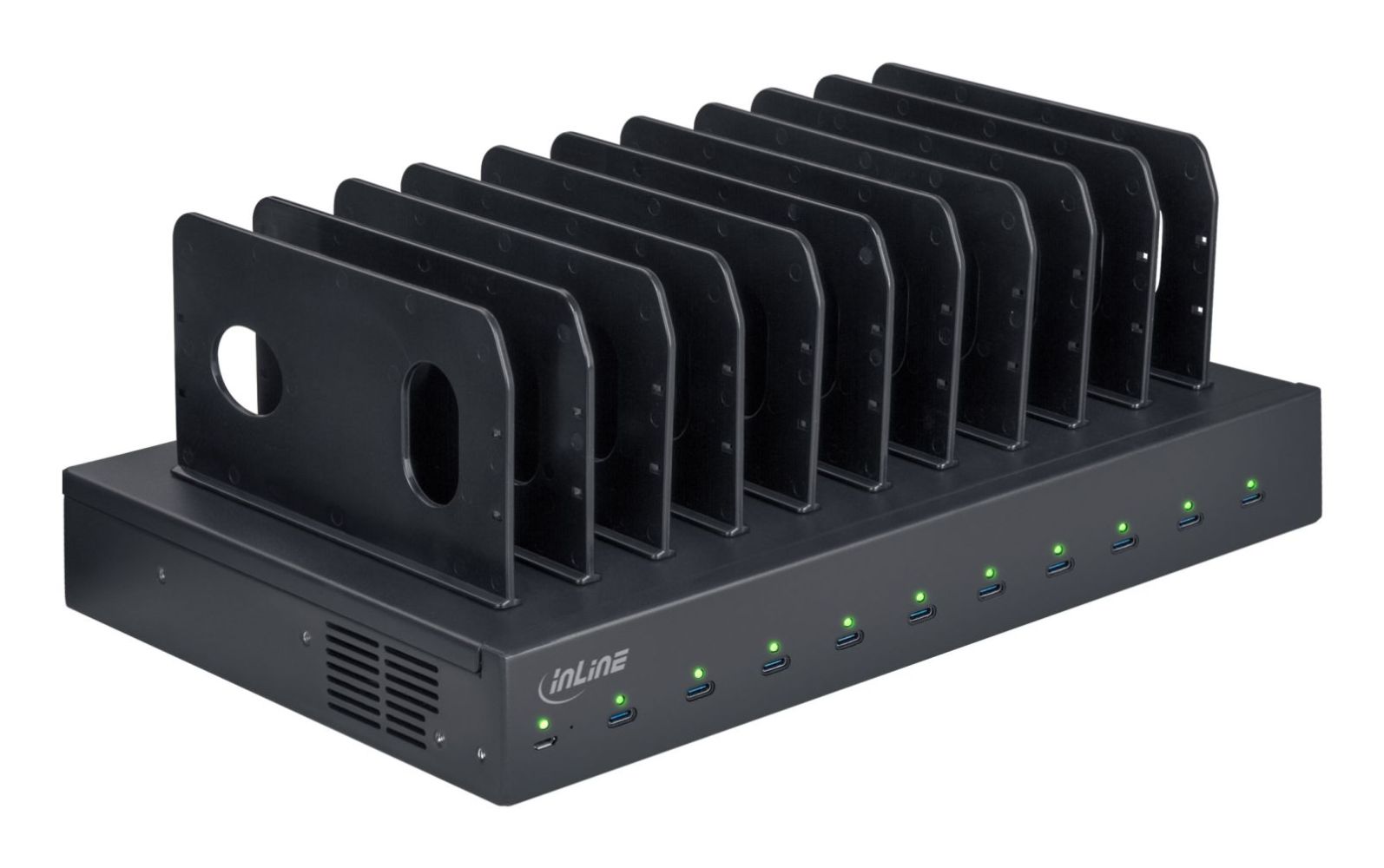

Thanks to the included separators, available in two lengths, devices can be neatly positioned side by side and stored in an organised manner. The robust construction and the option for rack mounting using the included brackets make the power supply particularly attractive for system integrators, IT departments or educational institutions.
Support for the latest fast-charging standards, such as Power Delivery 3.0 and Quick Charge 5.0, ensures high compatibility and future-proofing. Conventional USB devices can also be connected without any problems and are charged reliably.
With the InLine® Multiport power supply, professional users get a powerful and flexible charging unit for demanding continuous use.
10-port USB-C power supply
Compatible with Power Delivery 3.0 and Quick Charge 5.0
Max. total output power: 1,000.0 W
Input voltage: 100–240 V AC / 12 A max.
Input frequency: 50/60 Hz
USB-C output: 5.0 V / 3.0 A / 15.0 W
9.0 V / 3.0 A / 27.0 W
12.0 V / 3.0 A / 36.0 W
15.0 V / 3.0 A / 45.0 W
20.0 V / 5.0 A / 100.0 W
Protection functions: Overvoltage protection, short-circuit protection
Thermal protection with automatic resumption of charging once the unit has cooled down

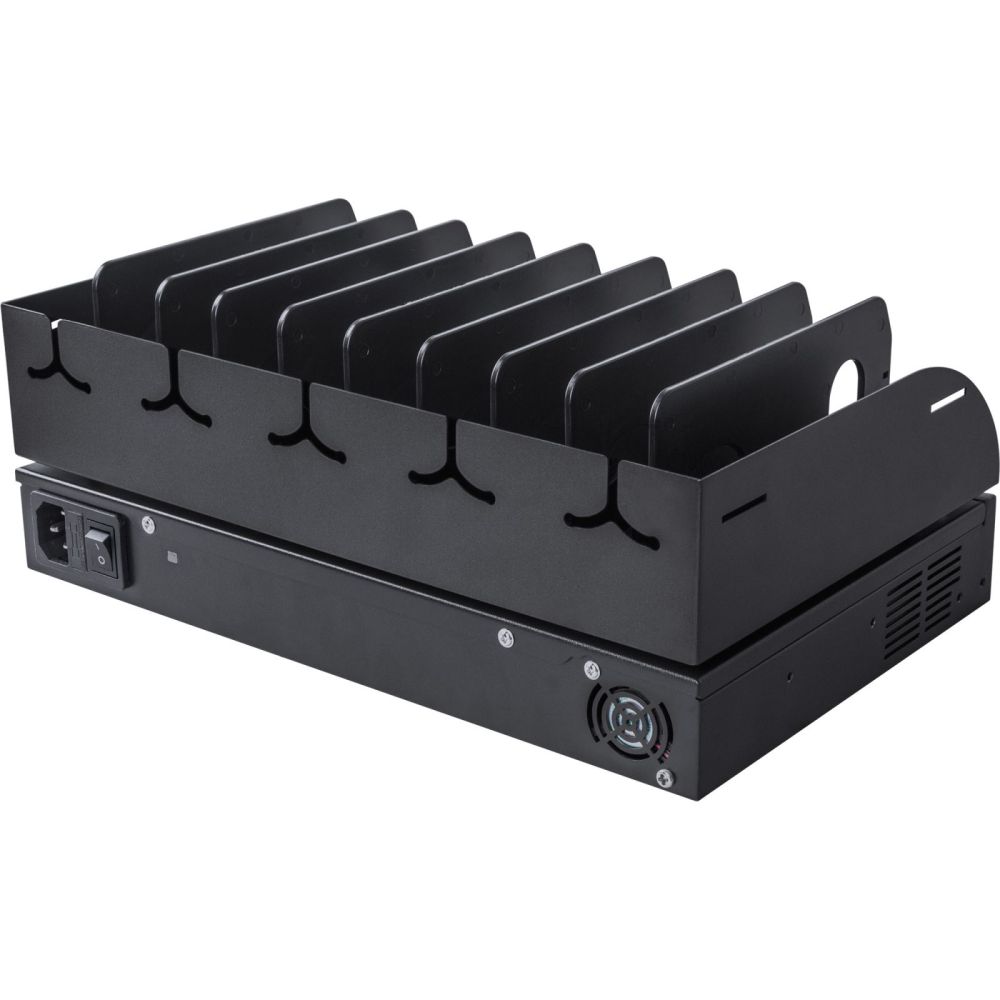

At temperatures of 70°C C inside the unit, the two fans are activated;
below this temperature, passive cooling is used
Fan dimensions: 40 x 20 mm
Speed range: 3600 to 5400 rpm
Noise level from 25 dB to 60 dB
Dimensions (L x W x H): approx. 340 x 213 x 66 mm
Weight: 3.3 kg (approx. 6 kg with isolators fitted)
Contents:1x InLine® Multiport power supply
9x 123 mm separators
9x 82 mm separators
2x mounting brackets for rack mounting
1x power cable, approx. 1.5 m
1x user manual (DE/EN)

Certificates
Compliance certificates	CE, TÜV mark
Design
Product colour	Black
Cable length	1.5 m
Logistics data
Country of origin	Taiwan
Other features
Dimensions (WxDxH)	210 x 340 x 50 mm
Packaging content
Cables included	AC
AC adapter included
Manual
Packaging data
Package width	270 mm
Package depth	470 mm
Package height	105 mm
Package volume	13000 cm³
Package weight	5.3 kg
Package type	Box
Performance
Charger compatibility	Universal
Power source type	AC
USB Type-C ports quantity	10
Fast charging technology	Power Delivery 3.0, Quick Charge 5
Charger type	Indoor
Number of simultaneously connected devices (max)	10
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Power protection features	Over voltage, Overheating, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	12 A
Maximum power	1000 W
Maximum output voltage	20 V
Minimum output voltage	5 V
Port 1 output power	100 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	5 A
Power plug type	Type C
Technical data
Packaging volume	0.0210m³
Outputs	10x USB-C
Net weight	3.940kg
Height packaging	0.170m
USB-C	10
Colour	Black
Article length	34.00cm
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Length packaging	0.470m
Max. power	1000W
Width packaging	0.270m
Cable included	EU-Power cable
Output voltage	5.0 V DC - 20.0 V DC
Weight	5.957kg
Type	USB power adapter
Article width	21.00cm
Article height	12.00cm
Wireless Charging
Power Delivery
Display
GaN
Quick Charge
Weight & dimensions
Width	210 mm
Depth	340 mm
Height	50 mm
Weight	3.35 kg

---
