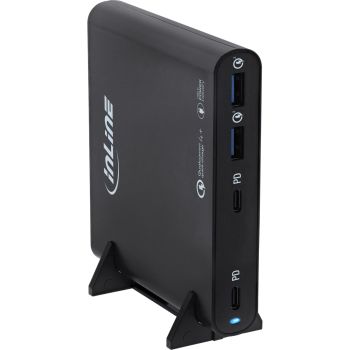

InLine® USB power supply, GaN charger, 4-port, 2x USB-C + 2x USB-A, 120W, black content_copy

The InLine® GaN charger provides you with four powerful connections in a compact and efficient housing. Two USB-C and two USB-A ports deliver a total output of up to 120 W and enable simultaneous charging of smartphones, tablets, laptops or accessories.
Thanks to modern GaN (gallium nitride) technology, the power supply is significantly more efficient than conventional silicon models. This means less heat generation, lower energy losses and a considerably smaller design. Ideal for professional applications in offices, conference rooms or mobile service use.
Both Power Delivery 3.0 and QuickCharge 4+ are supported, allowing even power-hungry devices to be charged reliably and quickly. Intelligent power distribution ensures that connected devices are always optimally supplied – even when several ports are in use at the same time.
The charger can be positioned flexibly: standing with the stand or lying flat thanks to the included rubber feet. This is particularly practical when space is limited but maximum performance is required.
Total power
USB-C 1USB-C 2USB-A 1USB-A 2
Single output
: 100 W: 100 W: :
2 outputs: 120 W: 60 W: 60 W:
3 outputs: 100 W: 45 W: 45 W: 10 W:
4 outputs: 100 W: 30 W: 30 W: 18 W: 18 W
Input voltage: AC 100–240 V
Output voltage: 5.0–20.0 V DC
Output current: max. 5.0 A
Output power: 120.0 W
Dimensions: 98 × 110 × 20 mm
Data at 230V 50Hz (USB-C + USB-A = 20.0V / 5.0A + 12.0V / 1.67A):
Average efficiency during operation: 90.55%
Efficiency at low load (10%): 83.45%
Power consumption at zero load: 0.284 W
Input AC frequency: 50/60 Hz, 2.3 A

Design
Product colour	Black
LED indicators
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	111 x 98 x 21 mm
Packaging content
Cables included	AC
Packaging data
Package width	112 mm
Package depth	210 mm
Package height	53 mm
Package volume	1300 cm³
Package weight	523 g
Performance
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C ports quantity	2
Charger type	Indoor
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	2.3 A
Maximum power	120 W
Maximum output voltage	20 V
Minimum output voltage	5 V
Efficiency at low load (10%)
Technical data
Height packaging	0.053m
Article height	2.10cm
Max. power	120.0W
Width packaging	0.112m
Output voltage	5.0 V DC - 20.0 V DC
Weight	0.523kg
Article length	9.80cm
USB-A	2
Net weight	0.288kg
Type	USB charging set
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Outputs	2x USB-A, 2x USB-C
Article width	11.10cm
Packaging volume	0.0013m³
USB-C	2
Length packaging	0.210m
Cable included	EU-Power cable
Quick Charge
Wireless Charging
GaN
Display
Power Delivery
Weight & dimensions
Width	111 mm
Depth	98 mm
Height	21 mm
Weight	288 g

---
