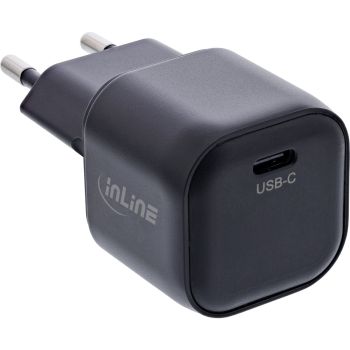

InLine® USB-C GaN power supply, PD, PPS, AVS, 100 W, black content_copy

Smart fast charging with precise power adjustmentSmart charging adjustment: AVS, PPS and Power Delivery dynamically adjust the voltage and power to suit compatible USB-C devices, supporting an efficient and optimised charging process.
High charging power: With up to 100 W of output power, the USB-C charger is suitable for numerous compatible devices and enables high-performance power delivery via USB-C.
Compact GaN technology: Modern GaN technology enables high power density in a space-saving design and is ideal for both mobile and stationary use.
Reliable protection: Integrated overvoltage, short-circuit and temperature protection ensure safe operation. Once the device has cooled down, the charging process resumes automatically.
Flexible USB-C power supply: Multiple Power Delivery profiles, as well as PPS and AVS modes, enable a needs-based power supply for compatible USB-C devices with varying power requirements.
The InLine USB-C GaN charger combines modern charging technologies in a compact housing. With a maximum output power of 100 W, it is suitable for numerous compatible USB-C devices and supports a high-performance power supply via a single USB-C port.
Thanks to support for Power Delivery, PPS (Programmable Power Supply) and AVS (Adjustable Voltage Supply), the output power is dynamically adapted to the requirements of compatible devices. The intelligent voltage regulation supports optimised charging efficiency and can precisely control the power supply.
The integrated GaN technology enables high power density whilst maintaining compact dimensions. This makes the charger suitable for use at home, in the office or whilst on the move.
Integrated protection mechanisms against overvoltage, short circuits and overtemperature ensure additional safety. If a critical temperature is reached, the charger switches off automatically. Once it has cooled down sufficiently, the charging process resumes automatically.
The combination of high power, intelligent voltage adjustment and a compact design makes the USB-C charger a high-performance solution for modern USB-C devices.
Input voltage: 200–240 VAC, 1.5 A
Input AC frequency: 50/60 Hz
Output voltage/output current/output power: 5.0 VDC / 3.0 A / 15.0 W – 9.0 VDC / 3.0 A / 27.0 W - 12.0 VDC / 3.0 A / 36.0 W - 15.0 VDC / 3.0 A / 45.0 W - 20.0 VDC / 5.0 A / 100.0 W
PPS: 5.0–20.0 V / 5.0 A / 25.0–100.0 W
AVS: 9.0–15.0 V / 3.0 A / 27.0–45.0 W – 15.0–20.0 V / 5.0 A / 75.0–100.0 W
Average operating efficiency: 86.10%
Efficiency at low load (10%): 83.06%
Power consumption at no load: 0.037 W
Total output power: max. 100.0 W
Overvoltage and short-circuit protection
If the power supply overheats, it switches off automatically and resumes charging automatically once it has cooled down
Dimensions: approx. 36 x 36 x 73 mm (W x H x D)
Weight: approx. 83 g

Certificates
Compliance certificates	CE
Design
Product colour	Black
Gallium nitride (GaN) transistors
Other features
Dimensions (WxDxH)	36 x 75 x 36 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	80 mm
Package depth	135 mm
Package height	40 mm
Package volume	400 cm³
Package weight	121 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB Type-C ports quantity	1
Charger type	Indoor
Number of simultaneously connected devices (max)	1
USB Power Delivery up to	100 W
Power protection features	Over voltage, Short circuit, Overheating
Wireless charging
Fast charging
Programmable power supply (PPS)
USB Power Delivery (USB PD)
Power
Input voltage	200 - 240 V
Input frequency	50/60 Hz
Input current	1.5 A
Maximum power	100 W
Maximum output voltage	20 V
Minimum output voltage	5 V
AC adapter power	100 W
AC adapter output current	5 A
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	5 A
Average active efficiency	86.10 %
Power plug type	Type C
Efficiency at low load (10%)
Technical data
Height packaging	0.040m
Net weight	0.083kg
Weight	0.121kg
Packaging volume	0.0004m³
Output voltage	5.0 V DC - 20.0 V DC
Colour	Black
Outputs	1x USB-C
Article width	3.60cm
Max. power	100.0W
Article length	7.50cm
Length packaging	0.135m
Article height	3.60cm
USB-C	1
Type	USB power adapter
Width packaging	0.080m
Wireless Charging
Power Delivery
Quick Charge
Display
Cable included
GaN
Weight & dimensions
Width	36 mm
Depth	75 mm
Height	36 mm
Weight	83 g

---
