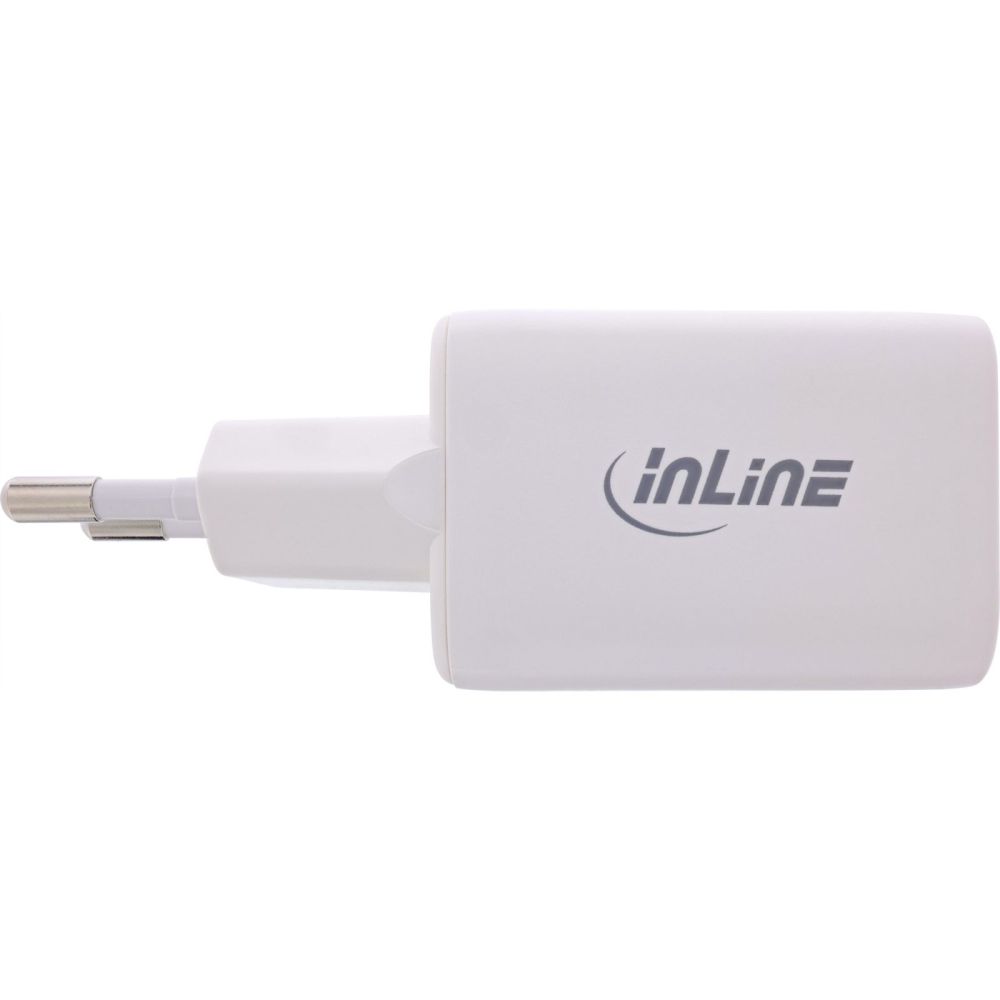

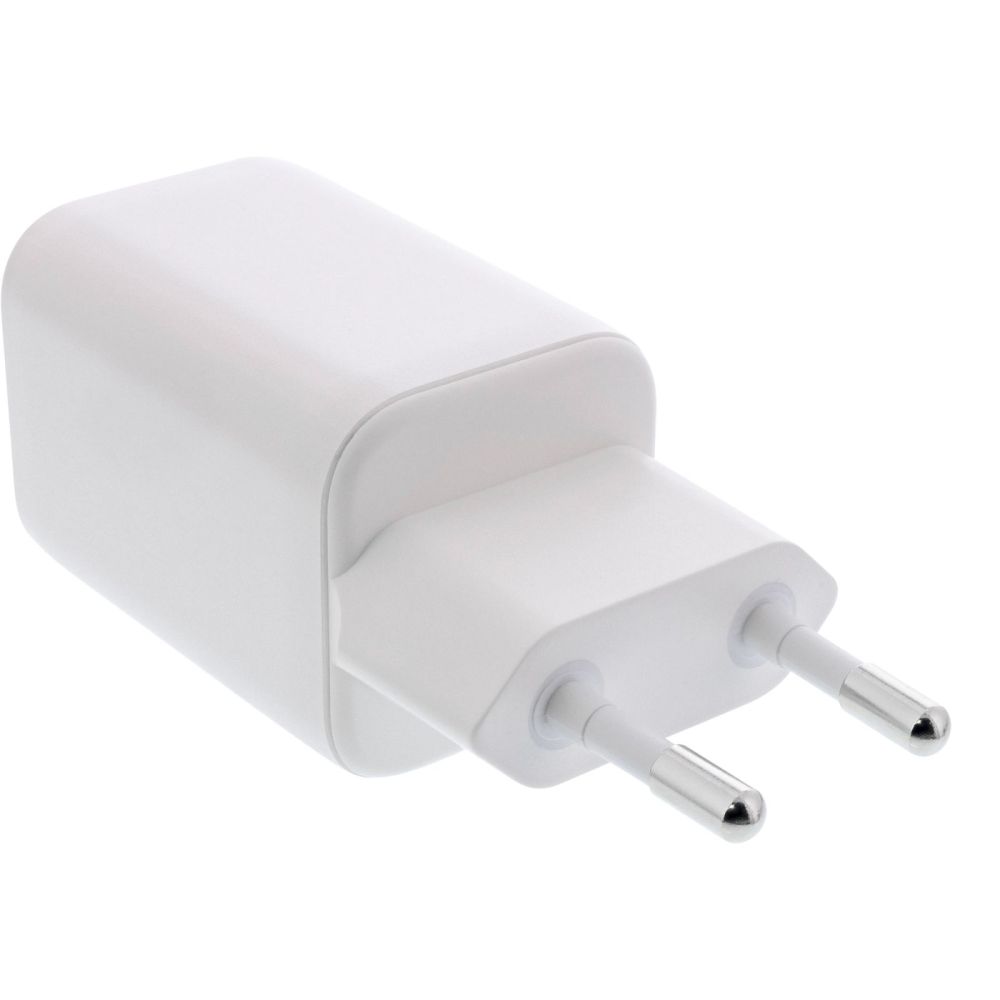

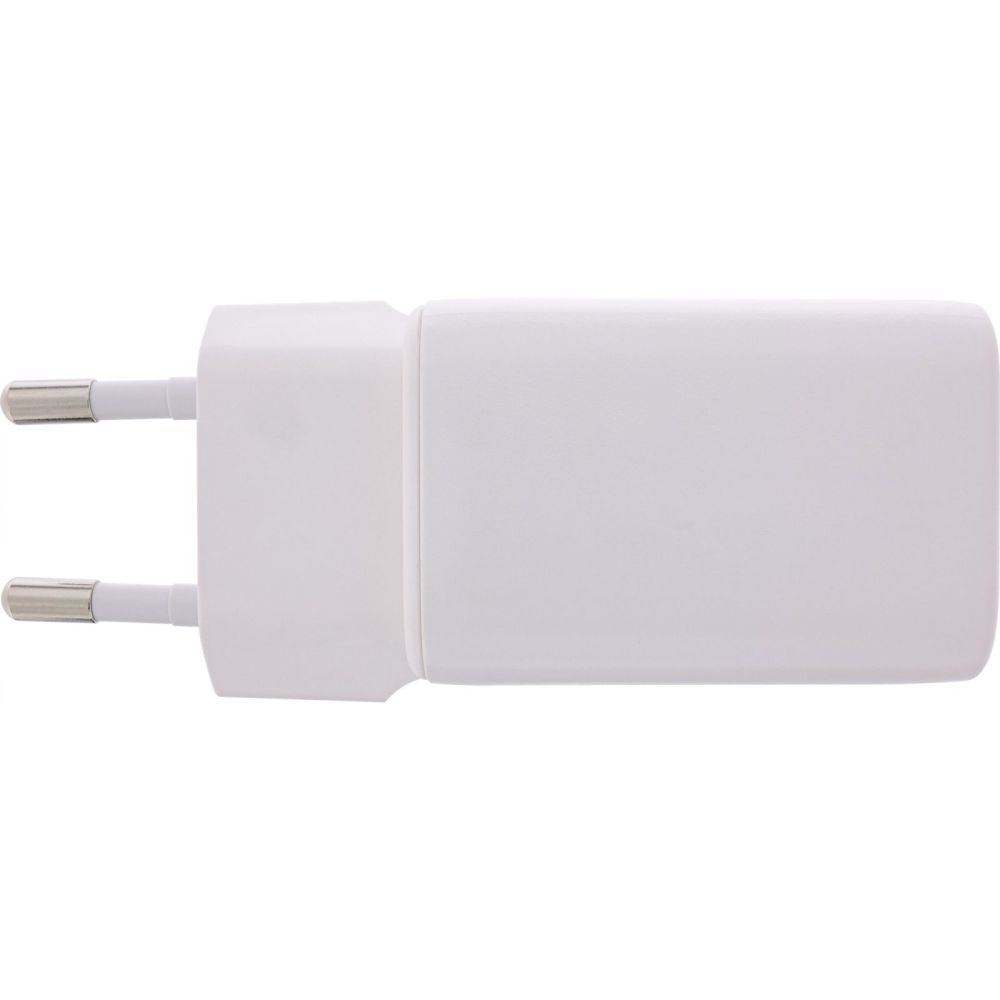

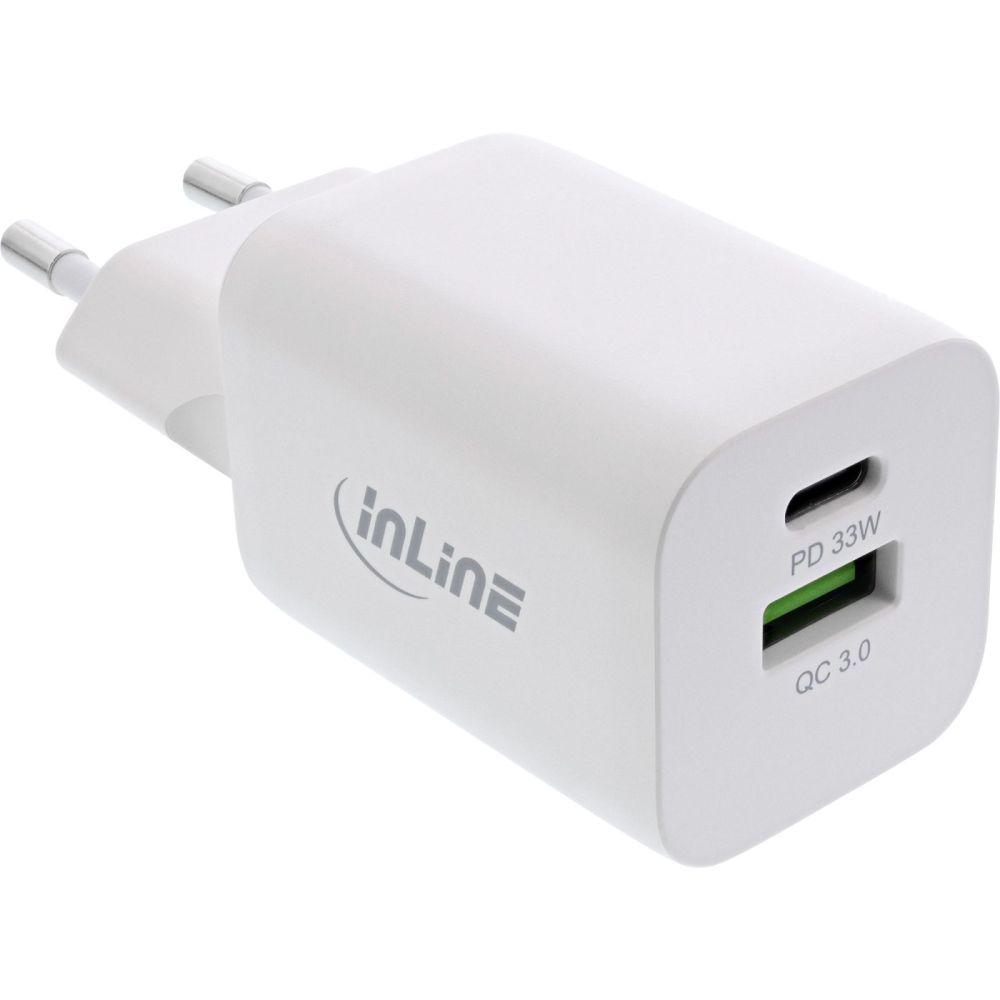

InLine® Power Delivery + Quick Charge USB Charger, 33 W, USB-A + USB-C, white content_copy

Fast charging with Power Delivery: Charge compatible USB-C devices with up to 33 W – ideal for smartphones, tablets and more.
Simultaneous charging via two ports: Use USB-C and USB-A in parallel and power multiple devices at the same time.
Safe charging thanks to intelligent chip: Protection against overcurrent, overvoltage, overload and short circuit – for maximum device safety.
Compact design for on the go: Lightweight, handy charger – ideal for travelling, the office or at home.
Universally applicable: Compatible with a wide range of devices and can be used worldwide thanks to 100-240 V input.
The InLine® USB power supply combines modern fast charging technologies in a compact housing: thanks to Power Delivery 3.0 and Quick Charge 3.0, you can charge your USB-C and USB-A devices up to four times faster than with conventional power supplies. The compact 33W power supply is ideal for smartphones, tablets, e-readers, headphones or other USB devices.
Simultaneous charging via both ports is no problem – intelligent power regulation ensures that all devices are optimally supplied. The charger automatically adapts to the power requirements of the connected devices. This means you benefit from safe and efficient charging at all times. An integrated safety circuit reliably protects your devices from short circuits, overvoltage, overload and overheating. The robust yet lightweight design makes the power supply the perfect addition to your mobile equipment – whether at home, on the road or in the office. Compatible with input voltages of 100-240 V, the charger is also ideal for international travel. Rely on technology that thinks for itself – powerful, compact and reliable.
PPS output: 3.3-11V / 3A (max. 33W)
USB-C+USB-A combined: 5V / 3A (max. 15W)
Frequency: 50/60 Hz, 0.8 A
Output voltage: 5-20 V DC
Output current: max. 3.0 A
Power consumption at zero load: 0.08 W
Efficiency at low load: 74.0%
Average efficiency in operation: 83.0%

Design
Product colour	White
Logistics data
Country of origin	Germany
Other features
Dimensions (WxDxH)	32 x 85 x 32 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	81 mm
Package depth	112 mm
Package height	35 mm
Package volume	400 cm³
Package weight	92 g
Performance
Charger compatibility	Universal
Power source type	AC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	1
Fast charging technology	Quick Charge 3.0
Charger type	Indoor
Number of simultaneously connected devices (max)	2
USB Power Delivery revision	3.0
USB Power Delivery up to	33 W
Power protection features	Over current, Overheating, Overload, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.8 A
Maximum power	33 W
Maximum output voltage	20 V
Minimum output voltage	3.3 V
Port 1 output power	33 W
Port 2 output power	18 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	2.5 A
Output current (15V)	2 A
Output current (20V)	1.5 A
Port 1 output current	3 A
Port 2 output current	3 A
Power consumption (no load)	0.08 W
Average active efficiency	83.0%
Power plug type	Type C
Efficiency at low load (10%)
Technical data
USB-C	1
Width packaging	0.081m
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Colour	White
Output voltage	3.6 V DC - 20.0 V DC
Weight	0.092kg
Article width	3.20cm
Outputs	1x USB-A, 1x USB-C
Packaging volume	0.0004m³
Length packaging	0.112m
Type	USB power adapter
Max. power	33.0W
Net weight	0.062kg
Article length	8.50cm
USB-A	1
Article height	3.20cm
Height packaging	0.035m
Wireless Charging
GaN
Quick Charge
Power Delivery
Cable included
Display
Weight & dimensions
Width	32 mm
Depth	85 mm
Height	32 mm
Weight	62 g

---
