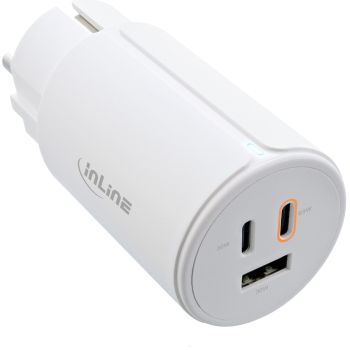

InLine® USB PD power supply, GaN charger, 3-port, Dual USB-C + USB-A, 65W, white content_copy

Compact 65 W GaN charger for fast multi-device chargingFast multi-device charging: 2x USB-C and 1x USB-A provide up to 65 W total power.
High efficiency in a compact form factor: GaN technology reduces heat generation and saves space.
Wide fast-charging compatibility: USB Power Delivery 3.0 with PPS and Quick Charge 3.0/4+.
Space-saving outlet use: Slim design does not block adjacent protective contact sockets.
Needs-based power allocation: Automatic distribution depending on port combination, e.g., C1+C2 45 W + 18 W or C1+A 45 W + 18 W.
With 65 W, the 3-port GaN power supply charges compatible notebooks, tablets, and smartphones quickly and reliably. Two USB-C ports with Power Delivery 3.0 and PPS and one USB-A port with Quick Charge allow flexible charging of single or multiple devices. The electronics adjust voltage and current as needed, and the compact design facilitates use on tightly spaced power strips.
In professional IT environments, at the workplace, in meeting rooms, and during on-site service deployments, the 3-port solution allows tidy and efficient work without blocking adjacent sockets. The wide input voltage of 100-240 V and clearly defined power profiles support reliable operation in existing infrastructures of companies and public institutions as well as when traveling.
Ports: 2x USB-C, 1x USB-A
Output power: 65 W
Input: AC 100-240 V, 50/60 Hz, 1.5 A
Output voltage: 3.3-20.0 V DC
Output current: max. 5.0 A
Standards: USB Power Delivery 3.0 (PPS), Quick Charge 3.0/4+
Port profile USB-C1: 5.0 V/3.0 A; 9.0 V/3.0 A; 12.0 V/3.0 A; 15.0 V/3.0 A; 20.0 V/3.25 A; PPS 3.0 A (max. 65 W)
Port profile USB-C2: 5.0 V/3.0 A; 9.0 V/3.0 A; 12.0 V/2.5 A; 20.0 V/1.5 A; PPS 3.0 A (max. 30 W)
Port profile USB-A: 5.0 V/4.5 A (22.5 W); 4.5 V/5.0 A (22.5 W); 9.0 V/3.0 A; 12.0 V/2.5 A; 20.0 V/1.5 A (30 W)
Power distribution (simultaneous): C1+C2 45.0 W + 18.0 W = 63.0 W; C1+A 45.0 W + 18.0 W = 63.0 W; C2+A 7.5 W + 7.5 W = 15.0 W; C1+C2+A 45.0 W + 7.5 W + 7.5 W = 60.0 W
Dimensions: ø 42 mm, length 102 mm
Color: White
Average efficiency: 82.31 % (3.3 V DC + 5.0 V DC + 5.0 V DC); 87.48 % (20.0 V DC + 5.0 V DC + 5.0 V DC); 90.94 % (20.0 V DC + 12.0 V DC)
Efficiency at low load (10 %): 76.61 % (3.3 V DC + 5.0 V DC + 5.0 V DC); 81.59 % (20.0 V DC + 5.0 V DC + 5.0 V DC); 81.18 % (20.0 V DC + 12.0 V DC)

Design
Product colour	White
Gallium nitride (GaN) transistors
Logistics data
Country of origin	China
Other features
Dimensions (WxDxH)	42 x 100 x 42 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	81 mm
Package depth	173 mm
Package height	50 mm
Package volume	700 cm³
Package weight	191 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 2.0 ports quantity	1
USB Type-C ports quantity	2
Fast charging technology	Power Delivery 3.0, Quick Charge 3.0
Charger type	Indoor
Number of simultaneously connected devices (max)	3
Operating principle	Contact
USB Power Delivery revision	3.0
Wireless charging
Fast charging
Programmable power supply (PPS)
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	1.5 A
Maximum power	65 W
Maximum output voltage	20 V
Minimum output voltage	3.3 V
AC adapter output current	5 A
Port 1 output power	65 W
Port 2 output power	30 W
Port 3 output power	30 W
Port 1 output current	5 A
Port 2 output current	5 A
Port 3 output current	5 A
Power consumption (no load)	0.107 W
Power plug type	Type F
Technical data
Outputs	1x USB-A, 2x USB-C
Weight	0.191kg
Article height	4.20cm
Height packaging	0.050m
Article length	10.00cm
USB-C	2
Article width	4.20cm
Type	USB power adapter
Max. power	65.0W
Colour	White
Packaging volume	0.0007m³
USB-A	1
Width packaging	0.081m
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Length packaging	0.173m
Output voltage	3.3 V DC - 20.0 V DC
Net weight	0.146kg
GaN
Wireless Charging
Display
Cable included
Quick Charge
Power Delivery
Weight & dimensions
Width	42 mm
Depth	100 mm
Height	42 mm
Weight	146 g

---
