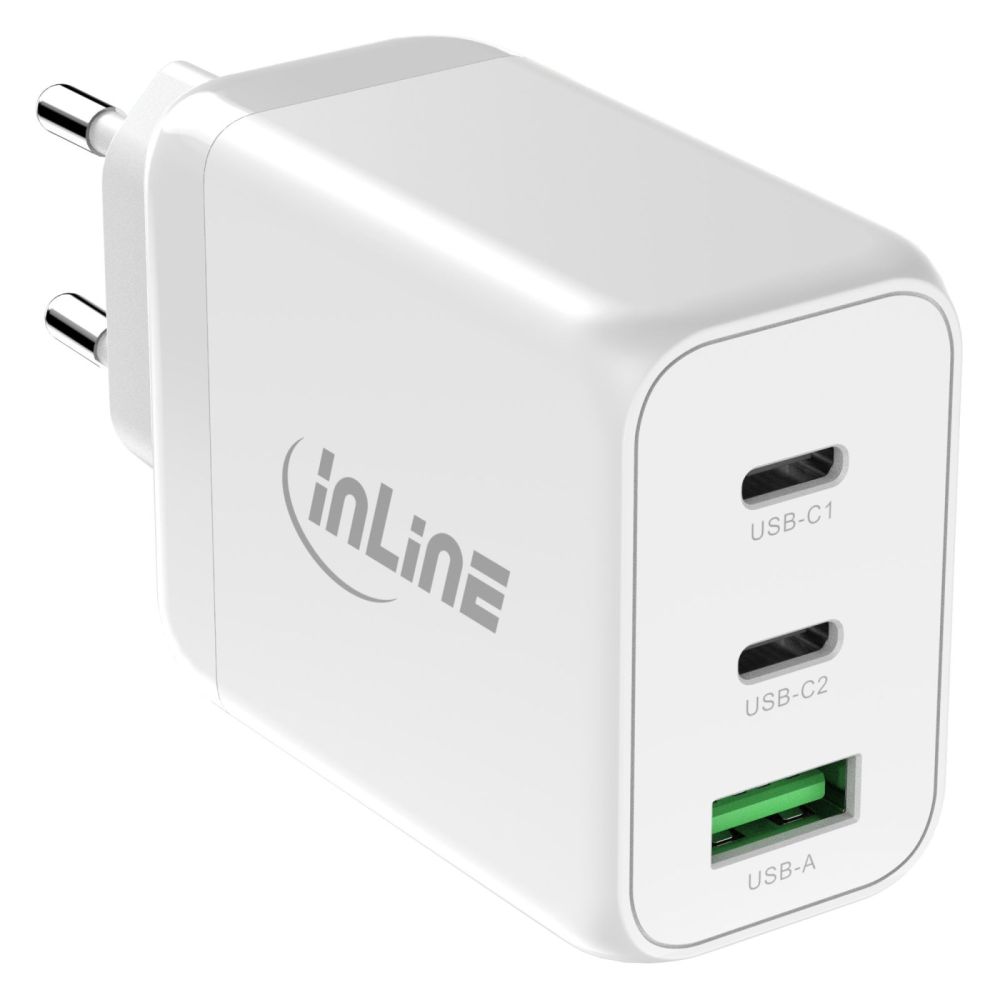

InLine® USB PD power supply, GaN charger, 3-port, dual USB-C+USB-A, 65W, white content_copy

Three ports for greater flexibility: Charge your smartphone, notebook and accessories simultaneously via 2x USB-C and 1x USB-A.
Powerful 65 W total output: Reliably powers even power-hungry devices such as USB-C notebooks.
Fast charging thanks to PD 3.0 & QC 4+: Supports common fast charging protocols – ideal for modern devices.
Compact and efficient GaN design: High energy efficiency with minimal heat generation in a small form factor.
With the InLine GaN USB PD power supply, you can charge up to three devices simultaneously – whether smartphones, tablets or notebooks. Two USB-C ports and one USB-A port ensure flexible use in everyday life or when travelling.
The charger delivers up to 65 W of total power and supports Power Delivery 3.0 and Quickcharge 4+. It automatically detects connected devices and intelligently adjusts the output power – for maximum charging speed and device protection.
Thanks to GaN technology, the power supply is particularly efficient and remains compact – ideal for on the go or at work. The low heat generation also extends the service life of the device and protects your technology.
Input voltage: AC 100-240V
Input AC frequency: 50/60 Hz, 1.5 A
Output voltage: 3.3-20.0 V DC
Output current: max. 5.0 A
Output power: 65.0 W
Average operating efficiency: 86.67%
Efficiency at low load (10%): 76.64%
Power consumption at zero load: 0.27 W
USB-C1/C2 output: 3.3-11.0V / 3.0A or 5.0V/3.0A or 9.0V/3.0A or 12.0V/3.0A or 15.0V/3.0A or 20.0V/3.25A (65.0W max)
USB-A output: 4.5V/5.0A or 5.0V/4.5A or 9.0V/3.0A or 12.0V/2.5A or 20.0V/1.5A (30.0W max)
USB-C1+USB-C2 output: 45.0W + 18.0W (63.0W max)
USB-C1+USB-A output: 45.0W + 18.0W (63.0W max)
USB-C2+USB-A output: 5.0V/3.0A (15.0W max)
USB-C1+USB-C2+USB-A output: 45.0W + 5.0V/3.0A
USB PD 3.0 compatible, Quickcharge 4+ and backwards compatible
Dimensions: 95.7x47.2x29.4mm

Design
Product colour	White
Gallium nitride (GaN) transistors
Other features
Dimensions (WxDxH)	47 x 100 x 29 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	86 mm
Package depth	150 mm
Package height	32 mm
Package volume	400 cm³
Package weight	142 g
Performance
Charger compatibility	Universal
Power source type	AC
USB 2.0 ports quantity	1
USB Type-C ports quantity	2
Fast charging technology	GaN, Power Delivery 3.0, Quick Charge 4
Charger type	Indoor
Number of simultaneously connected devices (max)	3
USB Power Delivery revision	3.0
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	1.5 A
Maximum power	65 W
Maximum output voltage	20 V
Minimum output voltage	3.3 V
AC adapter output current	5 A
Port 1 output power	30 W
Port 2 output power	65 W
Port 3 output power	65 W
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output current (15V)	3 A
Output current (20V)	3.25 A
Power consumption (no load)	0.27 W
Average active efficiency	86.67 %
Efficiency (@10 %)	76.64%
Efficiency at low load (10%)
Technical data
Outputs	1x USB-A, 2x USB-C
Colour	White
Packaging volume	0.0004m³
Weight	0.142kg
Output voltage	3.3 V DC - 20.0 V DC
Article height	2.90cm
USB-A	1
Width packaging	0.086m
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Type	USB power adapter
Max. power	65.0W
USB-C	2
Height packaging	0.036m
Article length	10.00cm
Net weight	0.109kg
Article width	4.70cm
Length packaging	0.150m
Display
GaN
Quick Charge
Wireless Charging
Cable included
Power Delivery
Weight & dimensions
Width	47 mm
Depth	100 mm
Height	29 mm
Weight	109 g

---
