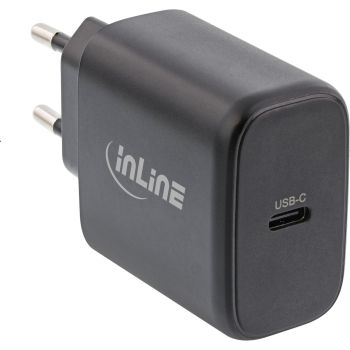

InLine® USB PD power supply, GaN charger, single USB-C, Power Delivery, 65W content_copy

High charging power for USB-C devices: The InLine USB-C charger delivers up to 65W of power via Power Delivery 3.0 and is suitable for fast and efficient charging of compatible smartphones, tablets and powerful USB-C devices.
Efficient GaN technology: The use of modern GaN technology achieves high power density in a compact design, which generates less heat and makes the charger particularly space-saving.
Optimised power supply with PPS: The integrated PPS function dynamically adjusts the voltage and current to the connected device and supports efficient and adapted energy transfer via the USB-C connection.
Energy-efficient in daily use: The high average efficiency and very low power consumption in no-load operation reduce energy losses and support economical operation when permanently connected.
Flexible worldwide use: The wide input voltage range of AC 100-240 V allows use on different power grids and makes the USB-C power supply ideal for travel and mobile applications.
The InLine USB-C charger with GaN technology was developed for efficient and powerful power supply to compatible end devices. With a maximum output power of 65W, it supports fast charging via USB Power Delivery 3.0 and is suitable for modern USB-C devices in daily use.
Thanks to the integrated PPS function, the power supply is dynamically adjusted to the requirements of the connected device. This supports optimised power output and reduces energy losses. GaN technology also enables a compact design and contributes to lower heat generation.
The USB-C power supply operates with a wide input voltage range of AC 100-240 V, making it flexible to use. Its high operating efficiency and low power consumption in no-load operation make the charger a reliable solution for use at home, in the office or on the go.
Input voltage: AC 100-240V
Input AC frequency: 50/60 Hz, 1.5 A
Output voltage: 3.3-20.0 V DC
Output current: max. 4.05 A
Output power: 65.0 W
Average operating efficiency: 86.49%
Efficiency at low load (10%): 79.58%
Power consumption at zero load: 0.03 W
USB-C PD output: 5.0V / 3.0A or 9.0V / 3.0A or 12.0V / 3.0A or 15.0V / 3.0A or 20.0V / 3.25A (max. 65.0W) / PPS output: 3.3-11.0V / 4.05A or 3.3-16.0V / 3.0A (max. 48.0W)
USB PD 3.0 compatible
Dimensions: 83.3x46x28.4mm

Technical data
Outputs	1x USB-C
USB-C	1
Max. power	65.0W
Article width	4.50cm
Type	USB power adapter
Length packaging	0.113m
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Cable included	USB-C
Weight	0.110kg
Output voltage	3,3 V DC - 20,0 V DC
Net weight	0.082kg
Height packaging	0.031m
Article length	8.50cm
Packaging volume	0.0003m³
Width packaging	0.080m
Article height	2.70cm
