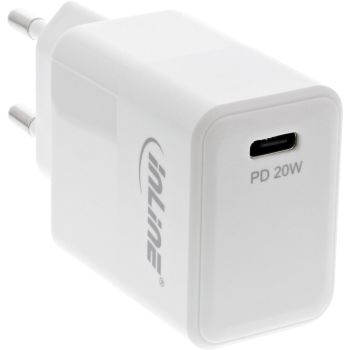

InLine® USB PD Charger Single USB-C, Power Delivery, 20W, white
|
12,14 EUR |
|
|
( 14,45 EUR incl. VAT ) ≈ £10.16 | ≈ $13.58 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22194245 |
| Mfg Part No: | 31500C |
| UPC/EAN: | 4043718295609 |
| Weight: | 0.078 kg |
Product information for Inline 31500C:
USB Type-C PD output: 5VDC/3A - 9VDC/2.22A - 12VDC/1.5A, Power Delivery 3.0 compatible (max. 20W)
Input voltage: 100-240V AC
Input AC frequency: ~50/60 Hz, 0 .5 A
Output voltage: 5.0-20.0 V DC
Output current: max. 3.0 A
Output power: 20.0 WAverage efficiency in operation: 89.7% (12V / 1.67A), 85.6% (5V / 3A)
Efficiency at light load (10% ): 79.6% (12V / 1.67A), 80.0% (5V / 3A)
No load power consumption: 0.02W
Over voltage - and short-circuit protection
If the temperature of the power supply unit is too high, it switches off automatically and automatically resumes charging after it has cooled down
| Design | |
| Product colour | White |
| Other features | |
| Dimensions (WxDxH) | 40 x 80 x 28 mm |
| Maximum input power | 20 W |
| Packaging data | |
| Package width | 80 mm |
| Package depth | 110 mm |
| Package height | 33 mm |
| Package volume | 300 cm³ |
| Package weight | 78 g |
| Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 1 |
| Charger type | Indoor |
| USB Power Delivery revision | 3.0 |
| Wireless charging | |
| USB Power Delivery (USB PD) | |
| Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 20 W |
| Maximum output voltage | 12 V |
| Minimum output voltage | 5 V |
| Output current (5V) | 3 A |
| Output current (9V) | 2.22 A |
| Output current (12V) | 1.5 A |
| Technical data | |
| Type | USB power adapter |
| Article length | 8.00cm |
| Outputs | 1x USB-C |
| Height packaging | 0.033m |
| Weight | 0.078kg |
| USB-C | 1 |
| Output voltage | 5.0 V DC - 12.0 V DC |
| Net weight | 0.051kg |
| Width packaging | 0.080m |
| Article height | 2.80cm |
| Colour | White |
| Packaging volume | 0.0003m³ |
| Max. power | 20.0W |
| Article width | 4.00cm |
| Length packaging | 0.110m |
| Product note | <strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect. |
| Wireless Charging | |
| Display | |
| GaN | |
| Power Delivery | |
| Quick Charge | |
| Weight & dimensions | |
| Width | 40 mm |
| Depth | 80 mm |
| Height | 28 mm |
| Weight | 51 g |
