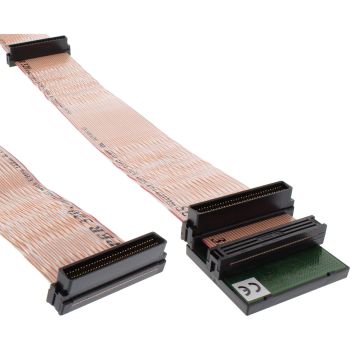

InLine® SCSI U320 ribbon cable, 68pin, with terminator, 0.75m content_copy

Reliable connection for Ultra320 SCSI systems: This internal SCSI U320 ribbon cable connects the controller and up to two peripheral devices stably and securely within the housing.
Integrated terminator for trouble-free operation: The built-in LVD/SE termination ensures correct bus termination and reduces signal reflections in parallel SCSI installations.
High data rate up to 320 Mb/s: Supports fast data transfers within existing Ultra320 infrastructures and enables stable system communication.
Space-saving 68-pin twisted pair design: The flexible ribbon cable facilitates clean cable routing and fits perfectly in internal PC or industrial enclosures.
Ideal for maintenance and expansion of existing systems: Perfectly suited for replacing defective cables or integrating additional SCSI components.
The InLine SCSI U320 ribbon cable enables reliable internal connection of Ultra320 SCSI components within a system. It connects a SCSI controller to up to two peripheral devices and is particularly suitable for existing infrastructures.
With a data transfer rate of up to 320 Mb/s, the 68-pin twisted pair ribbon cable supports stable signal transmission in parallel SCSI architectures. The integrated LVD/SE terminator ensures correct bus shutdown and reduces interference from signal reflections.
The three IDC 68-pin sockets enable structured daisy chaining of multiple devices. Thanks to its length of 0.75 metres, the cable can be neatly laid in the housing.
This internal SCSI cable is ideal for maintenance, expansion or replacement in existing Ultra320 infrastructures.
Interface: Ultra320 SCSI
Connector: 3x IDC 68-pin socket
Number of pins: 68
Termination: integrated LVD/SE terminating resistor
Maximum data rate: 320 Mb/s
Cable length: 0.75 m
Design: internal twisted pair ribbon cable

Features
Product colour	Multicolour
Cable length	0.75 m
Packaging data
Package width	120 mm
Package depth	230 mm
Package height	33 mm
Package weight	92 g
Package volume	900 cm³
Technical data
Width packaging	0.120m
Type	SCSI Ultra-320
Diameter	AWG 30
Packaging volume	0.0009m³
Article length	75.00cm
Data transmission rate	320MB/s
Article width	5.20cm
Side A	68pin pin header
Length packaging	0.230m
Net weight	0.080kg
Colour	Multicolour
Signal	Data
Length	0.75m
Article height	2.00cm
Side B	68pin pin header
Height packaging	0.033m
Shielding	Unshielded
Variant	With end resistors
UL E-number	E217446
Weight	0.092kg
UL
Weight & dimensions
Width	52 mm
Depth	750 mm
Height	20 mm
Weight	80 g

---
