INLINE Slimline SATA cable Slim SATA 13pin 7+6 cable side to SATA + power 0.4m content_copy

Compatible slimline connection: You can reliably connect optical drives with slimline SATA 7+6 pin to a SATA data port and a separate 2-pin power supply.
Clean separation of data and power: The separate cables allow for clear internal cable routing and facilitate installation in the case.
Optimized for optical drives: Ideal for CD/DVD drives with slimline connectors that are to be integrated into PC systems with standard SATA connectors.
Suitable cable lengths for compact systems: The cable offers approx. 0.4 m of data cable and approx. 0.15 m of power cable, avoiding unnecessary cable lengths in the system.
Secure connector design: The precise slimline SATA and SATA connectors ensure a stable fit and reliable signal transmission in daily use.

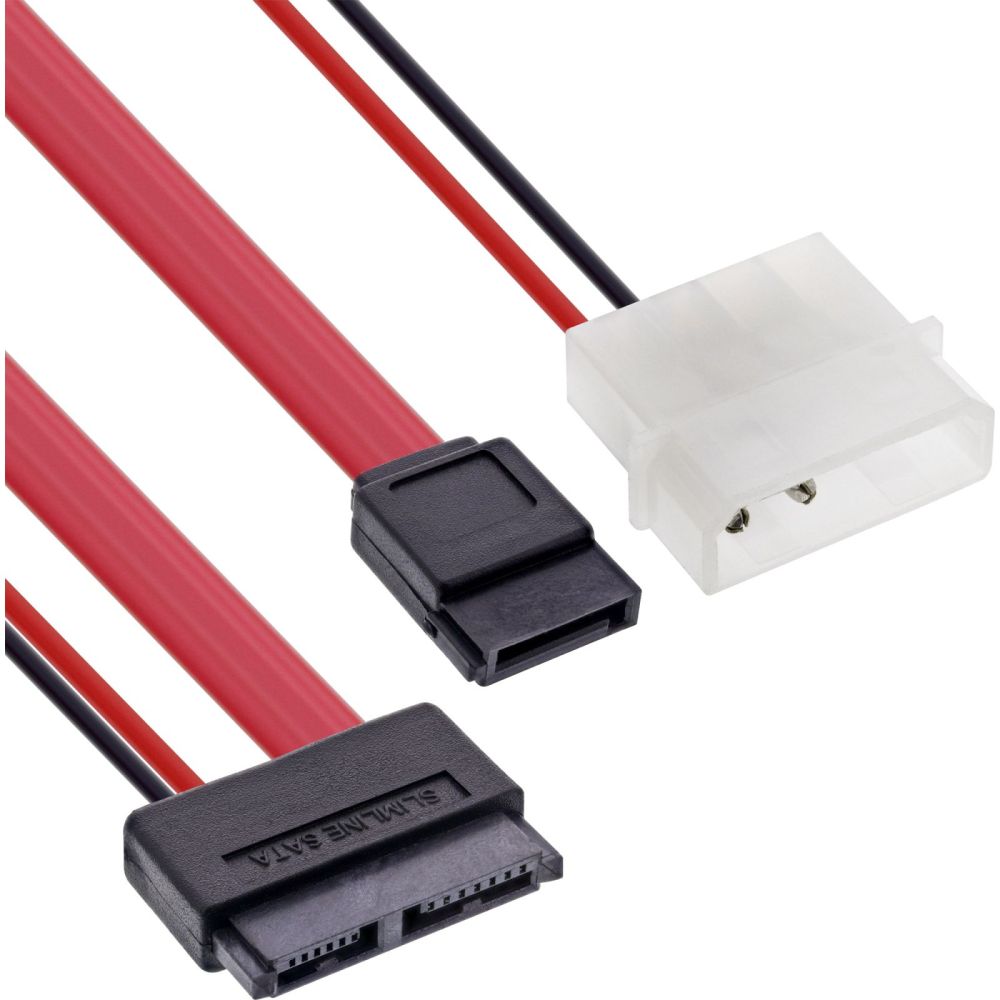

The InLine slimline SATA cable enables the reliable connection of a slimline optical CD/DVD drive to a standard SATA port in your PC. The Slimline SATA 7+6 pin connector combines data and power signals from the drive, while the cable distributes these signals to a SATA 7 pin data connector and a separate 2 pin power cable. This allows a Slimline drive to be connected without additional adapters or modifications.
The separate routing of data and power lines ensures structured and clear cable management in the housing. With approx. 0.4 m of data cable and approx. 0.15 m of power cable, the product offers suitable lengths for compact and internal installations. Unnecessary cable excess is avoided, which is particularly advantageous in smaller housings or with dense component placement.
The precise design of the connectors ensures a stable hold and supports reliable signal transmission. The cable is suitable for applications in which slimline drives need to be reliably integrated into systems that only have standard SATA connections. This makes the product a practical solution for retrofits, repairs, or system expansions that require an optical drive.
Connection type: Slimline SATA 7+6 to SATA 7-pin + 2-pin power
Data cable length: approx. 0.4 m
Power cable length: approx. 0.15 m

Features
Cable length	0.4 m
Cable type	SATA I
Connector 2	SATA 7-pin
Connector gender	Male/Male
Product colour	Black
Weight	17 g
Packaging data
Package width	85 mm
Package depth	130 mm
Package height	25 mm
Package weight	24 g
Package volume	300 cm³
Technical data
Weight	0.024kg
Packaging volume	0.0003m³
Article length	40.00cm
Length packaging	0.130m
Side B	Slimline SATA 13pol (7+6) plug
Width packaging	0.085m
Length	0.40m
Article height	0.90cm
Side A	SATA plug / 2pin power connection
Colour	Black
Article width	2.60cm
Type	SATA
Net weight	0.017kg
Signal	Data/Power
Height packaging	0.025m
UL
Technical details
Dimensions (WxDxH)	26 x 400 x 9 mm

---
