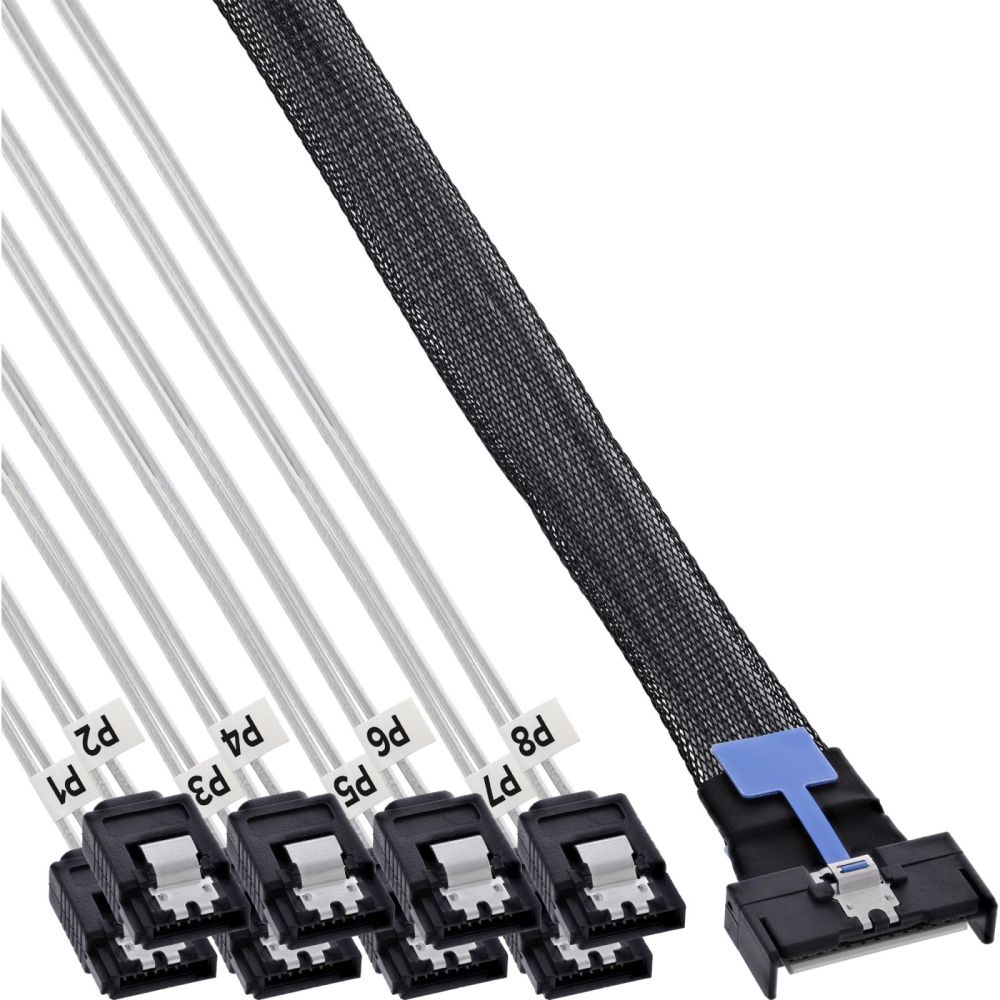

InLine® MCIO x8 breakout cable to 8x SATA, 0.5 m content_copy

Connects an MCIO x8 port to up to eight SATA drivesConnect up to eight SATA drives: The breakout cable connects an MCIO x8 (SFF-TA-1016) host port to up to eight SATA HDDs or SATA SSDs. It is suitable for setting up or expanding internal storage solutions and reduces cabling complexity by bundling multiple SATA connections via a single MCIO interface.
For modern storage platforms: Suitable for use with server motherboards, RAID controllers and tri-mode HBAs featuring an MCIO interface. The cable enables a structured connection of multiple SATA drives and facilitates a neat and organised installation within the system.
Reliable data connection: Supports SATA data connections between the host port and connected drives. The high-quality construction contributes to reliable signal transmission and is suitable for long-term use in demanding system environments.
Suitable for various installation scenarios: Available in lengths of 0.5 m, 0.75 m and 1 m. This allows you to select the appropriate cable length to suit your system configuration and achieve neat cable management.
Well-designed connection solution: The combination of an MCIO x8 connector and eight 7-pin SATA connectors enables compact storage cabling. The breakout cable supports the connection of multiple SATA storage devices via a single MCIO port and facilitates the setup of structured storage systems.
The InLine MCIO x8 breakout cable connects an MCIO x8 (SFF-TA-1016) host port to up to eight SATA drives. It is suitable for connecting SATA HDDs and SATA SSDs in systems with an MCIO interface and supports structured storage cabling via a single connection.
By splitting the connection across eight 7-pin SATA connectors, multiple drives can be connected in a space-saving manner. The cable is designed for use with server motherboards, RAID controllers and tri-mode HBAs, and supports SATA data connections between the host and storage devices.
The high-quality construction ensures reliable signal transmission. The breakout cable is available in lengths of 0.5 m, 0.75 m and 1 m, allowing it to be adapted to different installation scenarios within the system.
MCIO x8 (SFF-TA-1016) 74-pin male to 8x SATA 7-pin male
For connecting up to eight SATA HDDs or SATA SSDs
Suitable for servers, workstations, RAID controllers and tri-mode HBAs
Supports SATA data connections
High-quality construction for reliable signal transmission
Temperature range: -20 °C to +80 °C
Humidity: 0–90 per cent, non-condensing
Length options: 0.5 m / 0.75 m / 1 m

Certificates
Compliance certificates	CE
Features
Cable length	0.5 m
Connector 1	MCIO x8 (SFF-TA-1016) 74-pin
Connector 2	8x SATA 7-pin
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector gender	Male/Male
Weight	43 g
Logistics data
Country of origin	China
Package volume	800 cm³
Packaging data
Package width	140 mm
Package depth	190 mm
Package height	30 mm
Package weight	48 g
Package type	Polybag
Technical data
Packaging volume	0.0008m³
Article width	2.90cm
Height packaging	0.030m
Side A	MCIO x8 connector
Side B	SATA plug
Length packaging	0.190m
Article height	1.50cm
Width packaging	0.140m
Article length	50.00cm
Operation temperature	-20 to +80°C
Weight	0.048kg
Net weight	0.043kg
Signal	Data
Weight & dimensions
Dimensions (WxDxH)	29 x 500 x 15 mm

---
