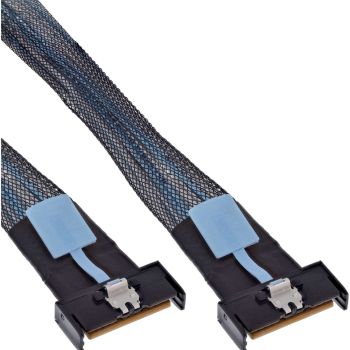

InLine® MCIO cable, MCIO x8 plug to MCIO x8 plug, 1m
|
76,91 EUR |
|
|
( 91,52 EUR incl. VAT ) ≈ £64.37 | ≈ $86.06 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193819 |
| Mfg Part No: | 27661C |
| UPC/EAN: | 4043718341771 |
| Weight: | 0.087 kg |
Product information for Inline 27661C:
High-speed data transmission with up to 24 Gb/s per lane (per channel): Ideal for PCIe Gen5 applications with maximum bandwidth.
Reliable connection with MCIO x8 connectors (74-pin): MCIO interface on both sides for stable signal quality.
Compatible with SAS, PCIe and Ethernet: Supports SAS 3.0/4.0, PCIe Gen3–5 and Ethernet up to 56GT/s.
Compact Mini Cool Edge IO design: Perfect for use in servers, storage systems or industrial PCs.
Rugged quality for demanding environments: Black, shielded cable for optimum performance.
The InLine® MCIO cable with MCIO x8 connector (74-pin) on both sides is the ideal solution for high-performance connections between modern SSDs, mainboards and controllers in demanding IT environments. It supports PCIe Gen3 to Gen5, SAS 3.0/4.0 and Ethernet protocols up to 56GT/s PAM4 – for maximum compatibility with stable, loss-free transmission.
Thanks to the compact Mini Cool Edge IO design, the cable is particularly space-saving and is ideal for server racks, embedded systems and industrial applications. The high-quality shielding ensures reliable signal quality even at high frequencies. Whether in the data centre or in a professional working environment, this high-speed cable impresses with its quality, speed and flexibility.
Plug: MCIO x8 (74-pin) plug to MCIO x8 plug
Transfer rate: Up to 24 Gb/s per lane (per channel)
Standards: PCIe Gen3–5, SAS 3.0/4.0, Ethernet up to 56GT/s
Colour: Black
Type: Mini Cool Edge IO (MCIO)
Application: SSDs, servers, storage systems, network technology
Reliable connection with MCIO x8 connectors (74-pin): MCIO interface on both sides for stable signal quality.
Compatible with SAS, PCIe and Ethernet: Supports SAS 3.0/4.0, PCIe Gen3–5 and Ethernet up to 56GT/s.
Compact Mini Cool Edge IO design: Perfect for use in servers, storage systems or industrial PCs.
Rugged quality for demanding environments: Black, shielded cable for optimum performance.
The InLine® MCIO cable with MCIO x8 connector (74-pin) on both sides is the ideal solution for high-performance connections between modern SSDs, mainboards and controllers in demanding IT environments. It supports PCIe Gen3 to Gen5, SAS 3.0/4.0 and Ethernet protocols up to 56GT/s PAM4 – for maximum compatibility with stable, loss-free transmission.
Thanks to the compact Mini Cool Edge IO design, the cable is particularly space-saving and is ideal for server racks, embedded systems and industrial applications. The high-quality shielding ensures reliable signal quality even at high frequencies. Whether in the data centre or in a professional working environment, this high-speed cable impresses with its quality, speed and flexibility.
Plug: MCIO x8 (74-pin) plug to MCIO x8 plug
Transfer rate: Up to 24 Gb/s per lane (per channel)
Standards: PCIe Gen3–5, SAS 3.0/4.0, Ethernet up to 56GT/s
Colour: Black
Type: Mini Cool Edge IO (MCIO)
Application: SSDs, servers, storage systems, network technology
| Certificates | |
| Compliance certificates | CE |
| Features | |
| Cable length | 1 m |
| Connector 1 | MCIO x8 (74-pin) |
| Connector 2 | MCIO x8 (74-pin) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector gender | Male/Male |
| Data transfer rate (max) | 24 Gbit/s |
| Product colour | Black, Blue, Grey |
| Weight | 82 g |
| Logistics data | |
| Country of origin | Taiwan |
| Package volume | 900 cm³ |
| Packaging data | |
| Package length | 18.5 cm |
| Package width | 160 mm |
| Package depth | 185 mm |
| Package height | 20 mm |
| Package weight | 87 g |
| Package type | Polybag |
| Technical data | |
| Height packaging | 0.020m |
| Side B | MCIO x8 connector |
| Length packaging | 0.185m |
| Side A | MCIO x8 connector |
| Signal | Data |
| Packaging volume | 0.0009m³ |
| Type | MCIO |
| Weight | 0.087kg |
| Width packaging | 0.160m |
| Article height | 1.00cm |
| Article width | 3.00cm |
| Article length | 100.00cm |
| Net weight | 0.082kg |
Questions & answers
What is the delivery time of InLine® MCIO cable, MCIO x8 plug to MCIO x8 plug, 1m?
The article InLine® MCIO cable, MCIO x8 plug to MCIO x8 plug, 1m is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 27661C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® MCIO cable, MCIO x8 plug to MCIO x8 plug, 1m always at the best possible price. We can give you a discount of 2% on InLine® MCIO cable, MCIO x8 plug to MCIO x8 plug, 1m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
