InLine® Slim SAS cable, SFF-8654 to U.2 SFF-8639 + SATA power, 1m
|
39,13 EUR |
|
|
( 46,56 EUR incl. VAT ) ≈ £32.75 | ≈ $43.79 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 22194178 |
|---|---|
| Mfg Part No: | 27644B |
| UPC/EAN: | 4043718288618 |
| Weight: | 0.056 kg |
Product information for Inline 27644B:
Sophisticated combination cable: Combines Slim SAS connection with U.2 data and SATA power supply for efficient cabling.
Compatible with SAS 4.0: Connection via SFF-8654 to SFF-8639 – suitable for modern controllers and U.2 SSDs.
Secure connection: Lockable Slim SAS connector prevents disconnection during operation – ideal for continuous load.
For professional environments: Optimally suited for RAID setups, workstations, and storage systems in data centers.

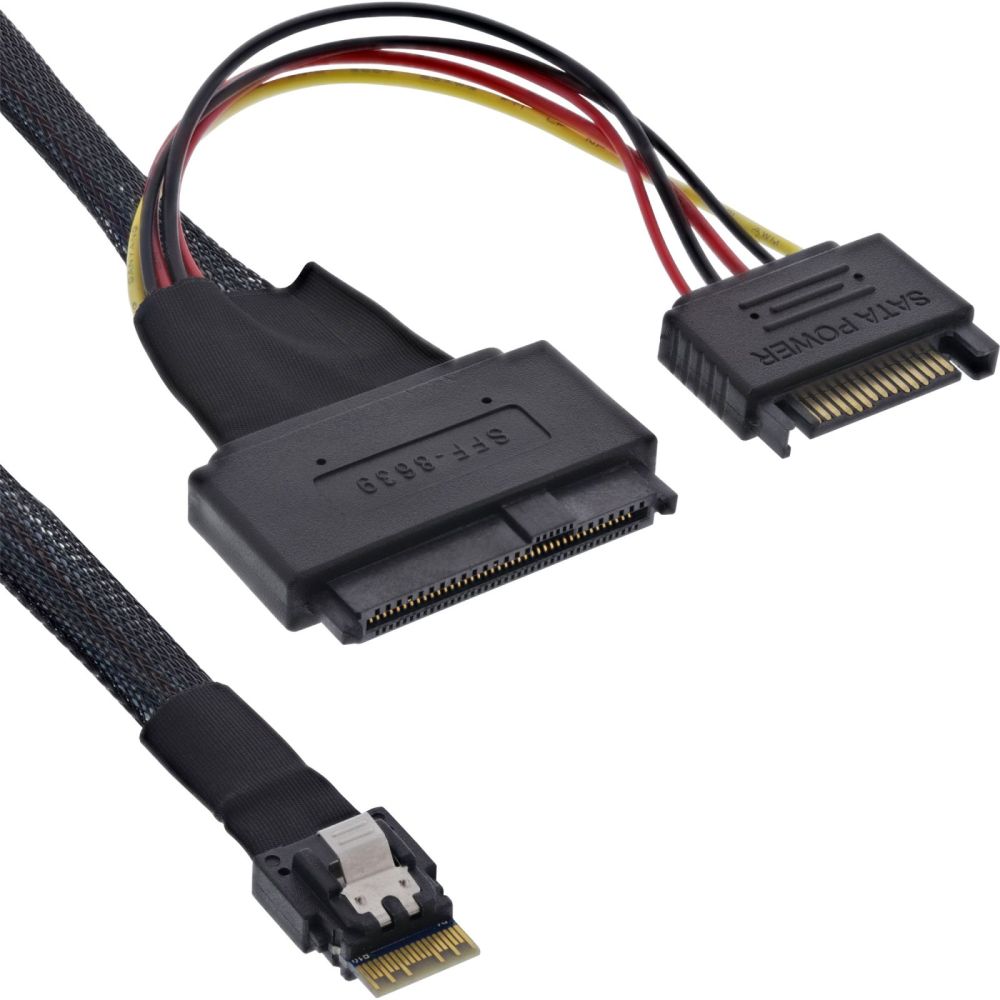

The InLine Slim SAS cable reliably connects modern U.2 SSDs to a SAS controller or RAID system. Equipped with a Slim SAS 4i connector (SFF-8654), a U.2-compatible connector (SFF-8639), and an additional SATA power connector, this cable combines data and power connection in one.
With support for up to 24Gb/s per channel, the cable is ideal for performance-hungry storage solutions in servers, workstations, or data centers. The Slim SAS connector has a locking mechanism, ensuring a secure connection even during continuous operation.
The compact cable routing allows for a clean and space-saving installation. It is the ideal choice for users who value performance, efficiency, and a clean structure in their IT infrastructure—from professional home servers to enterprise storage solutions.
Connector type: Slim SAS SFF-8654 4i to U.2 SFF-8639 + SATA power
Compatibility: SAS 4.0
Transfer rate: up to 24Gb/s per channel
Feature: Combination connector for data and power
Type: Internal SAS-U.2 connection cable
Length: 0.5 m (27644A), 1 m (27644B)
| Features | |
| Cable length | 1 m |
| Connector 1 | SFF-8654 male |
| Connector 2 | SFF-8639 + SATA |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Data transfer rate (max) | 24 Gbit/s |
| Product colour | Black |
| Weight | 50 g |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 185 mm |
| Package height | 20 mm |
| Package weight | 56 g |
| Technical data | |
| Article height | 1.50cm |
| Packaging volume | 0.0005m³ |
| Article width | 5.00cm |
| Article length | 100.00cm |
| Side A | SFF-8654 4i |
| Type | Slim SAS |
| Weight | 0.056kg |
| Length packaging | 0.185m |
| Net weight | 0.050kg |
| Side B | SFF-8639 + power plug |
| Signal | Data |
| Height packaging | 0.020m |
| Colour | Black |
| Design | Slim |
| Width packaging | 0.130m |
| UL | |
| Weight & dimensions | |
| Dimensions (WxDxH) | 50 x 1000 x 15 mm |
